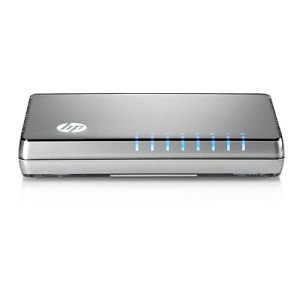

HP J9793A LAN Switch - 8-Port 10/100, Auto-MDIX, Fanless, Desktop

IMG 1 of 1
No Longer Available
Part Number:
198543
(?) Brand:
HP Web Site
Manuf No:
J9793A
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
J9793A, 886112518370
HP 1405-8 Switch

  HP 1405-5 Switch (J9791A) HP 1405-8 Switch (J9793A) HP 1405-16 Desktop Switch (JD858A)
Ports
  5 RJ-45 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX)

Media Type: Auto-MDIX

Duplex: half or full

 8 RJ-45 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX)

Media Type: Auto-MDIX

Duplex: half or full

 16 RJ-45 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX)

Media Type: Auto-MDIX

Duplex: half or full
Physical characteristics
  4.5(w) x 3.6(d) x 1.4(h) in (11.43 x 9.15 x 3.05 cm) 6.1(w) x 3.6(d) x 1.4(h) in (15.49 x 9.14 x 3.56 cm) 8.2(w) x 6.3(d) x 1.6(h) in (20.83 x 16 x 4.06 cm)
Weight 0.4 lb (0.18 kg) 0.5 lb (0.23 kg) 1.4 lb (0.64 kg)
Memory and processor
  384 KB 768 KB 1.6 MB
Mounting
  Desktop (rear port) Desktop (rear port) Desktop (rear port)
Performance
100 Mb Latency < 3.2 s < 2.9 s < 5 s
Throughput up to 0.7 million pps up to 1.2 million pps up to 2.4 million pps
Routing/Switching capacity 1 Gbps 1.6 Gbps 3.2 Gbps
MAC address table size 2048 entries 1024 entries 4096 entries
Environment
Operating temperature 32F to 104F (0C to 40C) 32F to 104F (0C to 40C) 32F to 104F (0C to 40C)
Operating relative humidity 15% to 95%, noncondensing 15% to 95%, noncondensing 10% to 90%, noncondensing
Nonoperating/Storage temperature -40F to 158F (-40C to 70C) -40F to 158F (-40C to 70C) -40F to 158F (-40C to 70C)
Nonoperating/Storage relative humidity 15% to 95%, noncondensing 15% to 95%, noncondensing 10% to 95%, noncondensing
Acoustic fanless fanless fanless
Electrical characteristics
Voltage 100-240 VAC 100-240 VAC 100-240 VAC
Frequency 50/60 Hz 50/60 Hz 50/60 Hz
Safety
  UL 60950IEC 60950-1EN 60950-1CAN/CSA-C22.2 No. 60950-1-03 UL 60950IEC 60950-1EN 60950-1CAN/CSA-C22.2 No. 60950-1-03 UL 60950IEC 60950-1EN 60950-1CAN/CSA-C22.2 No. 60950-1-03
Notes
  Also known as HP 1405-5 v2 Switch. Also known as HP 1405-8 v2 Switch. (Available as of July 2012) The HP 1405-16 Desktop Switch (JD858A) was formerly sold as the 3Com OfficeConnect Fast Ethernet Switch 16 (3C16792C).
  HP 1405-5G Switch (JD869A) HP 1405-8G Switch (JD871A) HP 1405-5 Switch (JD866A)
Ports
  5 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)

Media Type: Auto-MDIX

Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

 8 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)

Media Type: Auto-MDIX

Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

 5 RJ-45 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX)

Media Type: Auto-MDIX

Duplex: half or full
Physical characteristics
  4.6(w) x 3.6(d) x 1.2(h) in (11.68 x 9.14 x 3.05 cm) 6.2(w) x 3.6(d) x 1.2(h) in (15.75 x 9.14 x 3.05 cm) 5.6(w) x 4.3(d) x 1.2(h) in (14.22 x 10.92 x 3.05 cm)
Weight 0.39 lb (0.18 kg) 0.53 lb (0.24 kg) 1 lb (0.45 kg)
Memory and processor
  1 MB 1.5 MB 64 KB
Mounting
  Desktop (rear port) Desktop (rear port) Desktop (rear port)
Performance
100 Mb Latency < 5 s < 5 s < 5 s
1000 Mb Latency < 5 s < 5 s
Throughput up to 7.4 million pps up to 11.9 million pps up to 0.7 million pps
Routing/Switching capacity 10 Gbps 16 Gbps 1 Gbps
MAC address table size 4096 entries 8192 entries 2048 entries
Environment
Operating temperature 32F to 104F (0C to 40C) 32F to 104F (0C to 40C) 32F to 104F (0C to 40C)
Operating relative humidity 10% to 90%, noncondensing 10% to 90%, noncondensing 10% to 90%, noncondensing
Nonoperating/Storage temperature -40F to 158F (-40C to 70C) -40F to 158F (-40C to 70C) -40F to 158F (-40C to 70C)
Nonoperating/Storage relative humidity 10% to 95%, noncondensing 10% to 95%, noncondensing 10% to 95%, noncondensing
Acoustic fanless fanless fanless
Electrical characteristics
Voltage 100-240 VAC 100-240 VAC 100-240 VAC
Frequency 50/60 Hz 50/60 Hz 50/60 Hz
Safety
  UL 60950IEC 60950-1EN 60950-1CAN/CSA-C22.2 No. 60950-1-03 UL 60950IEC 60950-1EN 60950-1CAN/CSA-C22.2 No. 60950-1-03 UL 60950IEC 60950-1EN 60950-1CAN/CSA-C22.2 No. 60950-1-03
Notes
  The HP 1405-5G (JD869A) Switch was formerly sold as the 3Com Gigabit Switch 5 (3CGSU05A). The HP 1405-8G (JD871A) Switch was formerly sold as the 3Com Gigabit Switch 8 (3CGSU08A). The HP 1405-5 Switch (JD866A) was formerly sold as the 3Com Switch 5 (3CFSU05).
  HP 1405-8 Switch (JD867A)
Ports
  8 RJ-45 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX)

Media Type: Auto-MDIX

Duplex: half or full
Physical characteristics
  7.0(w) x 4.3(d) x 1.2(h) in (17.78 x 10.92 x 3.05 cm)
Weight 0.44 lb (0.2 kg)
Memory and processor
  128 KB
Mounting
  Desktop (rear port)
Performance
100 Mb Latency < 5 s
Throughput up to 1.2 million pps
Routing/Switching capacity 1.6 Gbps
MAC address table size 2048 entries
Environment
Operating temperature 32F to 104F (0C to 40C)
Operating relative humidity 10% to 90%, noncondensing
Nonoperating/Storage temperature -40F to 158F (-40C to 70C)
Nonoperating/Storage relative humidity 10% to 95%, noncondensing
Acoustic fanless
Electrical characteristics
Voltage 100-240 VAC
Frequency 50/60 Hz
Safety
  UL 60950IEC 60950-1EN 60950-1CAN/CSA-C22.2 No. 60950-1-03
Notes
  The HP 1405-8 Switch (JD867A) was formerly sold as the 3Com Switch 8 (3CFSU08).
Emissions

EN 55022 Class B; ICES-003 Class B; FCC Part 15, Class B; AS/NZS CISPR22 Class B

Standards and protocols

General protocols
  • IEEE 802.1p Priority
  • IEEE 802.3az Energy Efficient Ethernet
  • IEEE 802.3x Flow Control
Back to top

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (HP) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
