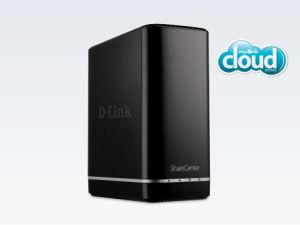

DNS-320L
ShareCenter 2-Bay Cloud Network Storage Enclosure
Features
Storage
Two easy-to-load load hard drive bays accept any capacity 3.5” SATA internal drive
USB 2.0 port to connect additional external storage or a printer
Performance
Gigabit Ethernet connectivity provides high speed network transfers
Cloud Enabled
mydlink-enabled to let you access files and folders from anywhere using the mydlink website
Remotely stream media to your mobile devices using a mydlink app for iOS and Android devices
Media Streaming
DLNA Certified media server
Photo Center software
iTunes media server
Peer to peer download engine
Backup Options
Feature-rich backup software makes protecting your data easier than ever
Supports local, remote, USB, and cloud backup
Supports Apple Time Machine
RAID 1 technology helps protect your data
The DNS-320L ShareCenter 2-Bay Cloud Network Storage Enclosure is an easy-to-use solution for accessing, sharing, and backing up your important data by creating your own personal cloud. Keep all of your data safely stored and protected at home, and still have it at your fingertips with a sleek, award-winning NAS solution.
Share Your Files from Anywhere
The ShareCenter 2-Bay Cloud Network Storage Enclosure includes a web file server which allows you to download your documents, photos, and other multimedia files from wherever
you are. Once configured, simply log into your ShareCenter using the friendly web user interface to view a list of available files. You can also connect with a mydlink mobile app to
access and play music, watch videos, and view photos directly on your mobile device.
Stream Digital Media With a Built-in Media Server
Back up your digital media files to the ShareCenter for safekeeping, and enjoy the benefits of the built-in DLNA® Certified UPnP AV media server. Stream digital content to compatible media players such as the PlayStation® 3, Microsoft® Xbox 360™, or directly to a smart TV. You can also enjoy photo, music, and video streaming remotely through mobile devices.
Easy Installation and Set Up
The DNS-320L can accept any 3.5” internal SATA hard drive, and installing drives is as simple as popping the top and sliding them in. Push the latch button to access the drive bays, then just slide in your storage drives into place and you’re ready. A convenient USB port on the back of the ShareCenter can be used to either share a USB printer with an entire home or office, or attach an external USB storage drive for easy one-touch backup. You can also connect an Uninterruptible Power Supply (UPS) to monitor power levels and ensure the safety of your data in the event of a power outage.
Powerful Perfomance and Flexibility
Four different hard drive modes are available (Standard, JBOD, RAID 0, RAID 1), which allow users to choose the configuration best suited to their needs. Standard mode creates two separately accessible hard drives. JBOD combines both drives to create a single, easy to use volume. RAID 0 combines both drives in a “striped” configuration, which provides maximum performance when using a Gigabit Ethernet connection. RAID 1 creates a copy of your data on both drives, providing maximum protection; if one drive fails, the unaffected drive continues to function as a single drive until the failed drive is replaced. Your data will automatically be copied to the new drive, allowing the ShareCenter to return to its full level of protection and ensuring your files remain safe.
D-Link Green
For consumers interested in reducing their energy costs and helping to save the environment, D-Link Green™ products provide eco-friendly alternatives without compromising performance. This device uses hard drive power management and Smart Fan speed control to reduce energy costs, minimize noise, and prolong the lifespan of your hard drives.
Technical Specifications
General
Standards
IEEE 802.3
IEEE 802.3ab
IEEE 802.3u
TCP/IP
CIFS/SMB
NFS
AFP
DHCP Client
DDNS
NTP
FTP over SSL/TLS, FXP
HTTP/HTTPS
LLTD
PnP-X
UPnP AV
USB 2.0
Bonjour
WebDAV
Supported Hard Drive Types
3.5” Internal SATA I/II – Supports hard drives with capacities of 3TB or above
Ports
10/100/1000 Gigabit Ethernet port
USB 2.0 Host port
Power
LEDs
Power
USB
LAN (on LAN port)
HDD 1
HDD 2
Functionality
Disk Management
Multiple hard drive configurations:
RAID 0
RAID 1
JBOD
Standard
RAID migration from Non-RAID to RAID 1
Hard drive format: EXT4
Scandisk
S.M.A.R.T.
Supports Advanced Format HDDs
Account Management
User account management
Group account management
User/Group quota management
Network access management
ISO mount management
Download Management
HTTP/FTP scheduled downloads
Peer to peer (P2P) downloader
Backup Management
Scheduled backup from PC to NAS (D-Link ShareCenter Sync)
Scheduled local backups
Scheduled remote backup
Apple Time Machine support
USB backup
Cloud backups (Amazon S3)
Device Management
Browser support:
Internet Explorer 7 or higher
Mozilla Firefox 3 or higher
Apple Safari 4 or higher
System Setup Wizard (Win / Mac)
D-Link Storage Utility (Win / Mac)
E-mail notifications
SMS notifications
System/FTP log
Print server functionality
Power Management
Power saving mode
Auto power recovery
Scheduled power off
Smart Fan control
D-Link Green Ethernet
Supports connection to a UPS (through USB)
Remote File Sharing
Web file server
FTP server
WebDAV
Mobile device access
mydlink portal access
File Sharing
Max. User accounts: 256 users
Max. Group accounts: 32 groups
Max. shared folders: 128 folders
Max. concurrent Samba connections: 64 connections
Max. concurrent FTP connections: 10 connections
Physical
Dimensions
90 x 144.3 x 193.3 mm (3.54 x 5.68 x 7.6 inches)
Weight
113.4 grams (0.25 lbs)
Power
External DC 12 V / 3 A switching power supply
Temperature
Operating: 0 to 40 °C (32 to 104 °F)
Storage: -20 to 70 °C (-4 to 158 °F)
Humidity
5% to 90% non-condensing
Certifications
CE
FCC
IC
DLNA
