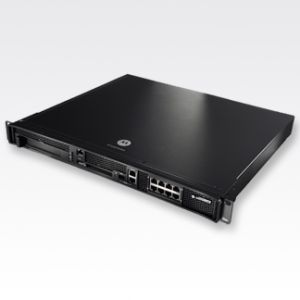

RFS-6010-10010-WR | Motorola RFS-6000 Wireless LAN Switch - 8-Port 10/100/1000

The RF Switch (RFS) 6000 provides a single platform capable of delivering carrier-grade wireless voice and data inside and outside the enterprise for medium to large organizations with 2,000-20,000 users. Improve operational efficiency and reduce the cost of mobility with a powerful comprehensive feature set including Adaptive AP, which delivers unmatched performance, security, reliability and scalability to enable networks for business mobility at a low TCO. Built on Motorola’s Wireless Next Generation (WiNG) architecture, the RF Switch (RFS) 6000 supports Wi-Fi, RFID, seamless roaming, next-generation self-healing, 3G/4G wireless broadband backhaul, gap-free layered security, rich locationing services, 802.11n with Mesh, centralized management and more.



Improve business process flow with one platform for wireless voice, video, data and multiple RF technologies on one platform — such as RFID, Wi-Fi (including 802.11n) and future technologies such as Wi-MAX; rich enterprise-class functionality includes seamless roaming across L2/L3 deployments, resilient failover capabilities, comprehensive security, toll-quality voice and other value-added services, such as multi-RF locationing.

Comprehensively secures and protects the wired and wireless network against attacks and unauthorized access at Layer 2 and Layer 3 with Stateful Inspection; ability to create identity and location-based policies provides granular control of network access.



Enables centralized management of 802.11 a/b/g/n mesh access points at remote sites including automatic firmware upgrades; provides site survivability for remote locations with 802.11a/b/g/n networks for unparalleled resiliency.



Next generation self-healing: enables the WLAN to automatically and intelligently adapt to changes in the RF environment to eliminate unforeseen gaps in coverage.



The built-in wireless intrusion protection system provides defense against over-the-air attacks by leveraging the sensing capabilities of AP300/ AP51x1/ AP7131



Comprehensive layered security

Exceptional level of data and network protection without sacrificing fast roaming, including: WPA2-CCMP (with 802.11i fast roaming options); Stateful Firewall at Layer 2 and Layer 3 for the wired and wireless network with role based configurations; Geofencing, integrated RADIUS Server; IPSec VPN Gateway; Secure Guest Access Provisioning; 802.11w for management frame protection, and 24x7 dedicated security via Motorola’s Wireless IPS, providing the advanced technology required to detect any rogue network, including 802.11n.



Enhances voice and video capabilities; prioritizes network traffic to minimize latency and provide optimal quality of experience; SIP Call Admission Control and Wi-Fi Multimedia Extensions (WMM-Power Save) with Admission Control enhances multimedia application support and improves battery life and capacity; network optimization through granular bandwidth contracts based on bandwidth utilization network load and number of users for different applications being used, in different locations; TSPEC Admission Control ensures ample bandwidth and a superior user experience for VoIP calls; 802.11k provides effective radio resource management.

Provides rich locationing services to enable real-time enterprise asset-tracking through support for 802.11, RFID and third party locationing solutions — including industry leaders AeroScout, Ekahau, and Newbury Networks. Standards-based support for: EPC Global ALE interface for processing and filtering data from all active and passive tags; and EPC Global LLRP interface for passive RFID tag support.



Supports multiple levels of redundancy and failover capabilities to ensure high availability networks; provides a single Virtual IP (per VLAN) for the cluster for use as a default gateway by mobile devices or wired infrastructure; built-in DHCP/ AAA server synchronized failover; multi-platform license sharing enables deployment of cost-effective networks.



Support for 3G wireless cards to backhaul WAN traffic when the primary WAN link fails.



Virtual AP provides better control of broadcast traffic and enables multiple mobile and wireless applications with quality of service when network is congested; Pre-emptive Roaming ensures Motorola mobile devices roam before signal quality degrades; Power Save Protocol optimizes battery life.

802.11 a/b/g support
Yes; Supports 48 AP300 802.11 a/b/g for L2 or L3 Deployments per switch and 576 802.11a/b/g AP300s per cluster. SupportsAP-5131 802.11 a/b/g and AP-7131 802.11 a/b/g/n Adaptive Access Points Supports 2000- 20000 users.

Adaptive AP support
Yes; Supports 256 AP-5131 802.11 a/b/g or AP-7131 802.11 a/b/g/n Adaptive Access Points per Switch and 3072 per cluster. Multiple country configuration support for Adaptive AP

Layer 2 adoption
Yes

Layer 3 adoption
Yes

Layer 3 mobility (intersubnet roaming)
Yes

RF management
Yes; Dynamic Frequency Selection and Transmit Power Control (TPC); Country Code based RF Configuration; SMART RF for Neighbor Recovery and Interference Avoidance as well as dynamic RF Optimization based on client load and RF traffic; Automatic Channel Selection capability

Roaming
Supports Hyper fast Secure roaming with Opportunistic Channel Scan; Power Save Protocol; pre-emptive Roaming and Credential Caching

VLAN support
Wireless LAN to VLAN mapping; auto-assignment of VLANs based on user authentication

Wireless LAN
Supports 32 WLANs; multi-ESS/BSSID traffic segmentation; VLAN to ESSID mapping; Auto Assignment of VLANs (on RADIUS authentication); Power Save Protocol Polling; pre-emptive roaming; congestion control with Bandwidth Management; Multiple WLANs per VLAN

Bandwidth management
Congestion control per WLAN; per user bandwidth contracts based on user count or bandwidth utilization; dynamic load balancing of AP300s in a cluster
