N5550
- Intel® Atom™ Processor
- HDMI Output
- Vastly Increased Performance
- McAfee® AntiVirus Protection
- iSCSI Thin Provisioning Supported
- Rock-Solid Security
Features:
Data Burn
NAS data can now be burned directly to CD, DVD, and Blu-ray discs with Data Burn, this hassle-free module makes burning data to a disk effortless. In addition, burning ISO image file is also supported. Whether you’re managing audio, media or essential files; Data Burn copies information fast while significantly reducing waiting time. The process of burning file to disk is now easy and smooth with Data Burn module.
Antivirus
Thecus’ innovative hardware helps prevent failures. But sometimes you have to protect the NAS against itself. Adding an antivirus to the already comprehensive software bundle will provide the necessary software protection by scanning the files on your NAS and defending it against possible threats. McAfee is the world’s largest dedicated security technology company and shares Thecus’ spirit of dedication and quality. By establishing a strong partnership with them, Thecus will allow users the benefit of McAfee’s powerful software on their NAS entirely for free.
Cloud Backup
The private and public clouds meet with Thecus’ new DropBox, Amazon S3 and ElephantDrive cloud backup functionality! Guard your data with RAID at home and an additional level of protection in the Cloud. Just drag and drop files into the folder on your NAS and access them on any computer or mobile device with DropBox, Amazon S3 or ElephantDrive.
HDMI Output
Make your NAS into the ultimate multimedia hub! The N5550’s HDMI output allows you to connect your NAS directly to your TV for device management.
USB 3.0 Connectivity
The next generation of connectivity is here with speeds 10x faster than USB 2.0. Whether connecting digital cameras and smart phones, backing up large external hard drives, or extending the capacity of your NAS, USB 3.0 will make sure it's done in no time at up to 5 Gbit/s. Backwards compatibility adds the connectivity of a world full of USB 2.0 and USB 1.1 devices to get the best combination of speed and universal access.
Acronis True Image
Thecus brings the best to the table with Acronis’s advanced backup software. Back up all your data with One-click Protection or pick and choose only your most important files. Acronis sports a slick interface, user-friendly design, and comprehensive features to keep your data safe.
Multiple RAID
When it comes to data management, Thecus NAS truly let you have it your way. Create multiple RAID volumes each supporting different RAID modes including RAID 0, 1, 5, 6, 10 and JBOD for your own balance of performance and data protection. Should a hard drive malfunction occur, changing one is simple thanks to online RAID migration and expansion, hot spare, and auto rebuild.
iSCSI Thin-Provisioning
Get the most out of your storage space with the extreme speed of iSCSI and the efficiency of iSCSI thin provisioning. Connect through iSCSI for the fastest data transfer speeds available and make wasted disk space a thing of the past with thin provisioning's flexible storage functionality.
iSCSI Thin-Provisioning
Get the most out of your storage space with the extreme speed of iSCSI and the efficiency of iSCSI thin provisioning. Connect through iSCSI for the fastest data transfer speeds available and make wasted disk space a thing of the past with thin provisioning's flexible storage functionality.
iOS/Android Connectivity
In the modern world, nothing is as important as reaching your data from anywhere. With ThecusShare and the Thecus Dashboard, you can manage your NAS, and upload to and download/stream from your NAS using an iOS or Android device on the go.
Rsync
Backing up your data is very necessary, and everyone has specific needs when it comes to storage. Thecus’s Rsync functionality gives users great flexibility with remote backup capability, a flexible scheduler, and the stability of Linux-based transfer.
User Quotas
Divide the massive storage of a Thecus NAS among multiple users. Whether there are two users or 100, user quotas make it easy to divvy up and manage disk space.
Overview

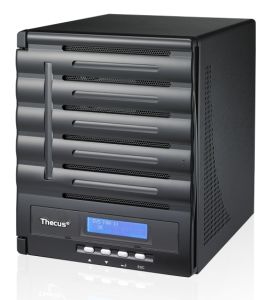

Thecus is proud to present itself as a technological innovator. Once again, Thecus releases an all new 5-bay N5550 server to lead the competition. The past proves merit: link aggregation, LCM display, USB 3.0, multi RAID functions and so on. Impressive technologies have been used to develop the new N5550 NAS to serve one single purpose: improve user experience and satisfaction.
Intel Atom CPU: silent power
Intel Atom CPUs are designed to work without fans. This will dramatically reduce NAS noise and power consumption.
Associated with large amounts of DDR3, Intel Atom CPUs will provide much better performance. Dont be restricted to a 4-bay NAS, bring it up a notch, Thecus N5550 is available and boosts the best performance with a great price, without entering larger bay units. Multi-users environment, web hosting, intense backup, data encryption, application serving, heavy RAID computations, and HD multimedia streaming: welcome to the world of smooth multi-tasking!
McAfee Antivirus: preventing possible threats
The N5550 NAS is McAfee antivirus embedded meaning that users can have confidence that their sensitive data will be protected by the most advanced antivirus software, McAfee.
USB 3.0: from optional to mandatory
Thecus started integrating USB 3.0 more than one year ago, enabling this blazing fast protocol on most storage devices by embedding a PCI-e slot. On popular demand, future NAS will equip at least one port for USB 3.0 transfer rates of 10 times faster than USB 2.0.
HDMI, VGA and Audio out: removing the middle man
After installing the proper module, simply plug a screen by the use of HDMI output, you dont even need a computer anymore to check on your NAS! Local display via HDMI makes things that much more convenient, directly attach keyboard and mouse to start data management.
The N5550 also supports VGA output for attaching traditional televisions, projectors and monitors. VGA output makes this 5-bay NAS convenient to display presentation or media files when HDMI is not on hand.
To add, users can attach speakers directly to the N5550 NAS to play audio files. With audio out, managing media and audio files is simple; attach the speaker plug to audio out and youre set to go!
Ideal for small installations and/or mobile users, these features are designed to lower the total cost of ownership of your network architecture.
Specifications: N5550 for High Value Storage
- Intel Atom Processor
- 2GB of DDR3
- USB 3.0
- HDMI output
- LCM Display
Specs
1. Hardware Platform
| Item |
Spec |
| Processor |
Intel Atom Processor |
| System Memory |
2GB DDR3 |
| LAN Interface |
RJ-45x2: 10/100/1000 BASE-TX Auto MDI/MDI-X
WOL supported |
| USB Interface |
USB 2.0 host port x4 (back x4)
USB 3.0 host port x1 (front x1) |
| LCM Module |
LCM display
4 buttons (ENTER, ESC, UP, DOWN) |
| SATA DOM |
1GB |
| HDMI Output |
HDMI port (back x1) |
| VGA Output |
VGA port (back x1) |
| Audio |
MIC input, Line input, Audio output |
| Disk Interface |
5 x SATA for internal
1 x eSATA for external |
| Power Supply |
200W Power Supply |
| USB UPS |
Supported |
| Thermal/Fan control |
Thermal sensor on processor temperature
System FAN speed controlled by temperature |
| System Clock |
Battery-backed up system clock |
| Power Management |
Auto power on after shutdown due to power loss |
| Buzzer |
Adjustable frequency alarm |
| Buttons |
Power button
LCM button |
| Environment |
Temperature: 5C to 40C
Humidity: 0 ~ 80 % R.H. (Non-condensing) |
| Chassis |
Tower Metal Chassis |
| Dimensions (HxWxD) |
230 x 190 x 240 (mm) |
| Certificates |
CE/FCC/C-Tick/VCCI/BSMI
RoHS
WEEE
VMware, Citrix |
2. Software Functions
| RAID |
| RAID Modes |
RAID 0, 1, 5, 6, 10 and JBOD |
| Auto-rebuild |
Supported |
| Hot-swap |
Supported |
| Hot Spare |
Supported |
| Online RAID Migration |
Supported |
| Online RAID Expansion |
Supported |
| RAID Volume Encryption |
AES256bit |
| Disk |
| Power Management |
Available spin-down while idle setting |
| Bad Block Scanning |
Supported |
| SMART Info |
Supported |
| SMART Test |
Supported |
| Disk Roaming |
Supports volume-based roaming to other Thecus NAS |
| Network |
| Configuration |
Fixed IP address, dynamic IP address |
| Transport Protocols |
TCP/IP/AppleTalk |
| File Protocols |
SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP |
| Link Aggregation |
Load balance, Failover, 802.3ad, Balance-XOR, Balance-TLB, Balance-ALB |
| TCP/IP |
IPV4 |
| Data Access |
| Client OS Support |
Windows 2000/XP/2003/Vista/ 7
UNIX/Linux
Mac OS X |
| FTP |
Built-in FTP server with bandwidth control |
| Secure FTP |
Built-in secure FTP server with bandwidth control |
| TFTP |
Users can download and upload files with TFTP programs |
| Download Manager |
BT download (via Transmission module)
HTTP/FTP/eMule (via DLM module)
NZB download (via NZB module) |
| Printer Server (IPP) |
Supports USB printers
Supports a wide range of IPP printers
Client can manage print tasks (list/delete) via web user interface |
| Data Backup |
| Client Incremental Data Backup |
Acronis True Image (OEM version) |
| Client System Disaster Recovery |
Acronis True Image (OEM version) |
| Client Side Backup Software |
Thecus Backup Utility (Windows/Mac OS X) |
| Rsync Backup |
Rsync replicates data between two systems (via Rsync module) |
| DVD Backup |
Supported |
| Mac OS X Time Machine |
Supported |
| Block Level Access |
| iSCSI Target/Initiator |
Supports Microsoft/Mac OS X/Linux initiators and Thecus NAS targets |
| iSCSI Thin Provisioning |
Supported |
| MPIO |
Supported |
| MCS |
Supported |
| Clustering |
Supported |
| SCSI3 Persistent Group Reservation |
Supported |
| Power Management |
| Scheduled Power On/Off |
Supported |
| Volume Management |
| Multiple RAID |
Supported |
| Multiple File System Selectable |
EXT3/EXT4/XFS |
| Multimedia Support |
| iTunes Server |
Supports AAC, MP3 w/ID3 tag and WAV |
| Piczza! Web Server (via module) |
Supports GIF, JPG (JPEG), BMP and PNG
Supports EXIF display
Supports slide shows |
| Media Server |
Supports uPnP AV streaming protocol (via Twonkymedia module) |
| User Authentication |
| Local User |
Supports built-in user accounts |
| Local Group |
Supports built-in user groups |
| Windows ADS |
Supported |
| File System |
| Type |
Journaling File System |
| Language Support |
Unicode Support |
| Authorization (ACL) |
Read, write, or deny privileges to individual users or groups in folders and sub-folders |
| User Quota |
Supported |
| Administration |
| User Interface |
Web-based user interface supports English, Traditional Chinese, Simplified Chinese, Japanese, Korean, French, German, Italian, Spanish, Russian, Polish and Portuguese. |
| Utility Program |
MS Windows Setup Wizard
Supports Windows 2000/XP/2003/Vista/7
Mac OS X Setup Wizard |
| Email Notifications |
Sends system messages via email to the system administrator |
| SNMP Trap |
System information trap out |
| Mobile Applications (iOS/Android) |
| Thecus Dashboard |
Mobile monitoring and administration (via module) |
| ThecusShare |
Uploading, downloading, and streaming multimedia |
| Thecus-Disk |
Manage files and folders on Thecus NAS, playback audio and video media, and view photos and documents |
| Others |
| Recycle Bin |
Supported |
| Web Disk |
Supported (via module) |
| Web Server |
Supported (via module) |
| ISO Mount |
Supported |
| User/System Module |
Supported |
| IP Cam Surveillance |
Supports up to 5 IP cameras (via module) |
| Auto Module Installation |
Thecuss module server automatically provides the latest modules and updates through the user interface. |
| Cloud Backup |
Dropbox, ElephantDrive, Amazon S3, Acronis (via module) |
| Local Display |
X-Window via HDMI output |
| Antivirus |
McAfee (via module) |
