All stock codes associated to this product
ST4000NM0023, HSSST4000NM00, HSS-ST4000NM00, 763649029992, 7636490028540, N/A, HSS-ST4000NM23

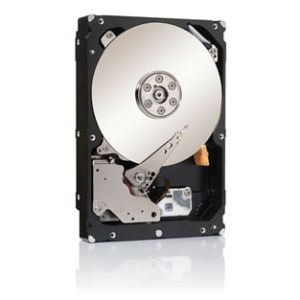

Constellation ES Hard Drive
GENERATION
ES.3
CAPACITY
4TB
INTERFACE
SAS 6GB/s
CACHE (MB)
128
ENCRYPTION
None
Model Number: ST4000NM0023
Overview
Supersize your enterprise storage
The Seagate Constellation ES.3 enterprise HDD delivers the scalability that data centers need to reliably meet their demanding growth of unstructured data.
- Highest-capacity enterprise drive, up to 4TB for maximum density server and storage solutions
- Perfect for reliable, 247 bulk data storage
- Predictable 7200-RPM performance even in the most rugged multi-drive SAS or SATA environments
- Best-in-class energy efficiency with low power and cooling requirements
- Protect your data and ease data disposal costs and management with the SED FIPS 140-2 option
Supersize your storage
The Constellation ES.3, with the worlds highest capacities in a 3.5-inch HDD form factor, is the perfect foundation for building maximum density server and storage solutions. These capacity-optimized hard drives support up to152TB of storage per square foot for a great return-on-investment for your enterprise storage.
Reliable bulk data storage for a 24x7 world
Building high capacity RAID storage solutions requires predictable and consistent performance. With the Constellation ES.3, we take it a step further and ensure your data is reliably stored in multi-drive chassis solutions.
Boost your storage capacities – and conserve power
Storing massive amounts of unstructured data is easy and smart with the Constellation ES.3. Designed with best-in-class energy efficiency, it uses a minimum power and cooling envelope to store up to 152TB per square foot.
Features:
Maximize your data footprint
The Constellation ES.3 features the worlds largest capacities in a 3.5-inch form factor. Build cost-effective maximum capacity storage solutions with enterprise-class, 7200-RPM drives in capacities up to 4TB. Select from sixth-generation SAS or SATA interfaces for easy integration.
24×7 energy-efficient data access
Among 3.5-inch form factor drives, the Constellation ES.3 features the lowest operating power in the industry-less than 10.68W on average.
Additionally, Constellation ES.3 hard drives further power reductions with enhanced PowerChoice™ technology. Purpose-built for enterprise environments, the PowerChoice feature enables the T10-compliant power management standard, allowing organizations to tailor systems for optimal energy usage resulting in up to 90% more power savings.
Drive reliability you can trust.
The Constellation ES.3 provides enhanced error correction, super-parity and end-to-end SAS-based data integrity for accurate data storage each and every time. With its robust 7200-RPM performance, ramp load technology and a humidity sensor for optimum performance, its the perfect solution for maximizing your enterprise system availability.
Powered by our multi-drive firmware and enhanced rotational vibration tolerance, the Constellation ES.3 can help to ensure consistent and reliable performance. In addition, protect data where it lives-on the drive- with our Self-Encrypting Drive option with FIPS 140-2 and Seagate Instant Secure Erase.
Specifications:
| Generation |
ES.3 |
ES.2 |
ES |
| Capacity |
4TB |
3TB |
2TB |
1TB |
3TB |
2TB |
2TB |
1TB |
500GB |
|
|
|
| Form Factor |
3.5" |
3.5" |
3.5" |
3.5" |
3.5" |
3.5" |
3.5" |
3.5" |
3.5" |
| Interface Options |
SAS 6Gb/s, SATA 6Gb/s |
SATA 6Gb/s, SAS 6Gb/s |
SAS 6Gb/s, SATA 6Gb/s |
SATA 6Gb/s, SAS 6Gb/s |
SATA 6Gb/s, SAS 6Gb/s |
SATA 6Gb/s, SAS 6Gb/s |
SAS 6Gb/s, SATA 6Gb/s |
SAS 6Gb/s, SATA 6Gb/s |
SAS 6Gb/s, SATA 6Gb/s |
| Performance |
|
|
|
|
|
|
|
|
|
| Spindle Speed (RPM) |
7200 |
7200 |
7200 |
7200 |
7200 |
7200 |
7200 |
7200 |
7200 |
| Cache (MB) |
128 |
128 |
128 |
128 |
64 |
64 |
64 |
64 |
64 |
| Transfer Rate, Max Ext (MB/s) |
600 |
600 |
600 |
600 |
600 |
600 |
600 |
600 |
600 |
| Sustained Data Rate OD |
175MB/s |
175MB/s |
175MB/s |
175MB/s |
155MB/s |
155MB/s |
147Mb/s |
147Mb/s |
147Mb/s |
| Average Latency (ms) |
4.16 |
4.16 |
4.16 |
4.16 |
4.16 |
4.16 |
4.16 |
4.16 |
4.16 |
| Reliability/Data Integrity |
|
|
|
|
|
|
|
|
|
| Nonrecoverable Read Errors per Bits Read |
1in 1015 |
1in 1015 |
1in 1015 |
1in 1015 |
1in 1015 |
1in 1015 |
1in 1015 |
1in 1015 |
1in 1015 |
| Annualized Failure Rate (AFR) |
0.63% |
0.63% |
0.63% |
0.63% |
0.73% |
0.73% |
0.73%% |
0.73%% |
0.73%% |
| Power Management |
|
|
|
|
|
|
|
|
|
| Seek, Typical Operating (W) |
|
|
|
|
|
|
|
|
6.76 |
| Idle, Typical Operating (W) |
7.80, 6.73 |
6.73, 6.74 |
5.78, 5.17 |
4.45, 4.84 |
7.71, 7.40 |
7.71, 7.40 |
5.69, 6.24 |
5.16, 4.42 |
4.32, 4.56 |
| Environmental |
|
|
|
|
|
|
|
|
|
| Temperature |
|
|
|
|
|
|
|
|
|
| Operating |
5to60C |
5to60C |
5to60C |
5to60C |
5to60C |
5to60C |
5to60C |
5to60C |
5to60C |
| Non-operating |
-40to70C |
-40to70C |
-40to70C |
-40to70C |
-40to70C |
-40to70C |
-40to70C |
-40to70C |
-40to70C |
| Shock |
|
|
|
|
|
|
|
|
|
| Operating: Gs (ms) |
70/40(2ms) |
70/40(2ms) |
70/40(2ms) |
70/40(2ms) |
70 / 40(2ms), 70/40(2ms) |
70/40(2ms), 70 / 40(2ms) |
70(2ms), 70/40(2ms), 70/40(2300ms) |
70(2ms), 70/40(2ms) |
70(2ms), 70/40(2ms) |
| Non-operating: Gs (ms) |
300(2ms) |
300(2ms) |
300(2ms) |
300(2ms) |
300(2ms) |
300(2ms) |
300(2ms), 2(ms) |
300(2ms), 350(2ms) |
300(2ms), 350(2ms) |
| Acoustics (bels - sound power) |
|
|
|
|
|
|
|
|
|
| Idle |
2.8 |
2.8 |
2.8 |
2.8 |
2.8 |
2.8 |
2.7 |
2.7, 1.9 |
2.7, 2.2 |
| Operating |
3.0 |
3.0 |
3.0 |
3.0 |
3.2 |
3.2 |
3.0 |
2.7 |
2.8 |
| Physical |
|
|
|
|
|
|
|
|
|
| Height (in/mm) |
|
|
|
|
|
|
1.028/26.10 |
1.028/26.10 |
1.028/26.10 |
| Width (in/mm) |
|
|
|
|
|
|
4.010/101.85 |
4.010/101.85 |
4.010/101.85 |
| Length (in/mm) |
|
|
|
|
|
|
5.787/147.00 |
5.787/147.00 |
5.787/147.00 |
| Height (in/mm) (maximum) |
1.028/26.10 |
1.028/26.10 |
1.028/26.10 |
1.028/26.10 |
1.028/26.10 |
1.028/26.10 |
|
|
|
| Width (in/mm) (maximum) |
4.010/101.85 |
4.010/101.85 |
4.010/101.85 |
4.010/101.85 |
4.010/101.85 |
4.010/101.85 |
|
|
|
| Length (in/mm) (maximum) |
5.787/147.00 |
5.787/147.00 |
5.787/147.00 |
5.787/147.00 |
5.787/147.00 |
5.787/147.00 |
|
|
|
| Weight (lb/g) |
1.543/700 |
1.444/655 |
1.400/635 |
1.334/605 |
1.543/700 |
1.543/700 |
1.57/710, 1.565/710 |
1.41/640, 1.345/610 |
1.34/610, 1.411/640 |
| ST4000NM0023 |
ES.3 |
4TB |
SAS 6Gb/s |
7200RPM |
128MB |
|
578 |
70/40Gs |
147.00mm |
101.85mm |
26.10mm |
0.63% |
60C |
11.86W |
