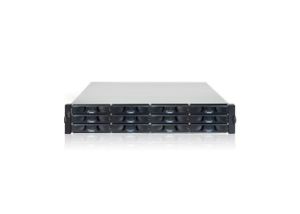

Infortrend EonNAS 3230 Unified Storage System - 2U Rackmount
  • 12 Bay HDD, RAID 0,1(0+1),5,6,10,50, VMware, iSCSI, 8GB-RAM, 4xGigLAN

IMG 1 of 1
No Longer Available
Part Number:
210850
(?) Brand:
Infortrend Web Site
Manuf No:
EN3230MD
Shipping Weight:
20 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
EN3230MD, IF15200

Infortrend ESVA family


EonNAS 3230 (Unified Storage System)

IT environments often include multiple storage infrastructures to accommodate various types of data and achieve different service levels. Scattered boxes for different configurations lead to poor utilization and complicated management. The EonNAS 3230 is a unified storage system that enables SMBs, remote/branch offices or enterprise departments to efficiently deal with file and block-based applications. The EonNAS 3230 provides optimized performance, enterprise-level scalability, strong data protection and maximized resource utilization.

Features:

Features Benefits

Wide support for file and block storage protocols (CIFS/SMB, AFP, NFS, HTTP,HTTPS, FTP, iSCSI and FC)

Seamlessly consolidate file and block storage for simplified management and efficient resource utilization

User-friendly management tools

Minimize management overhead for system deployment, configuration and monitoring

Data protection:

  1. Snapshot
  2. Remote replication
  3. Pool mirror
  4. ZFS end-to-end data integrity
  5. RAID technology

Support high data availability and quick service restarts after storage accidents

On-demand capacity scaling up to 120 drives with
expansion enclosures

"Pay as you grow" scalability; accommodate tomorrows applications while satisfying current needs
Deduplication, thin provisioning and data compression

Ensure the most efficient utilization of pooled capacity
Performance acceleration by integrating SSDs

Enhance performance in a cost-efficient manner

Architecture
  1. Processor: Intel Xeon Quad-Core
  2. Memory: 8GB or 12GB DDR3 ECC RAM

* Users can upgrade memory from 8GB to 12GB

  1. Host Connectivity:
    Four (4) 1GbE ports (EonNAS 3230)
    Eight (8) 1GbE ports (EonNAS 3230-1)
    Four (4) 1GbE ports + Two (2) 10GbE ports (EonNAS 3230-2)
    Four (4) 1GbE ports + Two (2) 8Gb/s Fibre Channel (FC) ports (EonNAS 3230-3)
  1. Drive connectivity: Exclusively 6Gb/s SAS
Protocol Support
  1. File Level Protocol:
    1. CIFS/SMB
    2. AFP
    3. NFS
    4. HTTP
    5. HTTPS
    6. FTP
  2. Block Level Protocol:
    1. iSCSI
    2. Fibre Channel (FC)

Supported Drives

300GB, 450GB or 600GB - 3.5" 15,000 RPM 6Gb/s SAS drives
1TB or 2TB - 3.5" 7,200 RPM 6Gb/s Nearline SAS drives
2TB, 3TB or 4TB - 3.5" 7,200 RPM 6Gb/s SATA drives
500GB, 1TB, 1.5TB or 2TB -3.5" 7,200 RPM 3Gb/s SATA drives

* For the latest compatibility details, please contact our sales representatives
Drive Expansion Ports One (1) SAS expansion port
Expansion Enclosure
(JBOD)		 EonStor DS S12S-J2000-G
Max. Drives
  1. Per system: 12
  2. Via JBOD: 120

Supported Operating Systems
  1. Windows Server 2003
  2. Windows Server 2008 R2 (including Hyper-V)
  3. Red Hat
  4. SUSE
  5. Sun Solaris
  6. VMware
  7. Citrix XenDesktop / XenServer
  8. Mac OS X
RAID Level

0, 1(0+1), 5, 6, 10, 50, 60
Data Protection
  1. Snapshot
  2. Remote replication (rsync with encryption)
  3. Apple Time Machine
  4. ICAP-based virus scanning support
  5. ZFS end-to-end data integrity
  6. NDMP

System Management
  1. Start-up wizard
  2. Web-based GUI
  3. Real-time system monitoring
  4. Dashboard monitoring
  5. Configurable alerts
  6. Network time protocol
  7. SNMP
  8. UPS management
Capacity Management
  1. Deduplication
  2. Thin provisioning
  3. Data compression
  4. Quota management
  5. Auto capacity expansion
Network Configuration
  1. IPv4 and IPv6 via DHCP
  2. Fixed/dynamic IP address
  3. Port trunking/Link Aggregation (IEEE 802.3ad)
  4. Fail-over
  5. Jumbo frame

Directory Services
  1. NIS
  2. AD
  3. LDAP

Performance Scaling

 Read/Write acceleration with four (4) SSDs

Service and Support

(Warranty extension options available)

Standard Service

  1. 3-year limited hardware warranty and 8x5 phone, web and email support

Upgrade/Extension Options

  1. 3-year replacement part dispatch on the next business day
  2. Advanced Service: 3-year 24x7 phone, email and web support + onsite diagnostics on the next business day
  3. Premium Service: 3-year 24x7 phone, email and web support + onsite diagnostics in four hours
  4. Two-year extended warranty option
Dimension
  1. 2U, 19-inch rackmount
  2. 88 mm (H), 650mm (D), 446mm (W)
Power
  1. Power supplies: Dual redundant 550W
  2. AC voltage: 115VAC @ 10A / 230VAC @ 5A with PFC (auto-switching)
  3. Frequency: 47-63 Hz
Weight System weight without HDDs: 18.58 kg
