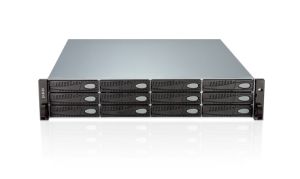

DSN-6110 12-bay xStack iSCSI SAS and SATA Storage Array (single controller 4x GbE)
Overview
D-Links DSN-6000 Series iSCSI SAN array is a fully redundant, data centre-class network storage solution in a 2U rackmount form factor.
Features
- 12-bay SAS and SATA, 2U rackmount storage
- Flexible single (DSN-6110) and dual (DSN-6120) redundant controller options
- Up to 900 MB/sec, 200,000 IO/sec with dual-active controller
- Four 1000Base-T interfaces per controller
- Scalable up to 60 drive bays via DSN-6020 12-bay expansion
- Advanced data protection with writable snapshot
- VMware, Citrix and Microsoft certification
- Full RAID level support
- Power saving design
- 2 Year Warranty
- Advance Warranty Replacement (24 Hour Cross-shipment)
Description
D-Links DSN-6000 Series iSCSI SAN array is a fully redundant, data centre-class network storage solution in a 2U rackmount form factor. The DSN-6000 Series currently supports 36TB of raw capacity using 3TB drives (and even greater capacity as larger disk drives become available), and overall scalability to 180TB using DSN-6020 Expansion Enclosures. D-Links DSN-6000 Series provides 1GbE or 10GbE host interface connectivity which can handle over 220,000 I/O per second. The DSN-6000 Series integrates xStack storage architecture and supports services for applications demanding high throughput, scalability and flexible storage planning. The DSN-6000 Series can be easily implemented as primary storage, as secondary storage to supplement an existing infrastructure, or as a nearline storage device to improve backup and recovery times. Using the intuitive and integrated management GUI, the DSN-6000 Series Arrays can be seamlessly incorporated in both Physical and Virtual Server environments.
High Availability
The DSN-6000 Series can provide the failover and redundancy capabilities required for mission critical scenarios such as Virtual Machine (VM) shares, database hosting, Online Transactional Processing (OLTP), email applications, storage consolidation and other primary storage needs. It is equipped with fully redundant components for all major functions, such as RAID controllers, power supplies, fan modules, battery backup modules, and SAS JBOD expansion ports. The Hot-pluggable design is capable of providing uninterrupted services. In addition, the DSN-6000 Series incorporates advanced high availability features such as RAID 6 and RAID 60 support, writable snapshot, Microsoft Windows VSS support, and volume configuration restoration. These advanced features help to reduce or eliminate any system downtime. Unlike other vendors, D-Links DSN-6000 Series is able to upgrade to firmware without the system going offline. Both firmware image and volume handling are well protected by the redundant RAID controllers (DSN-6120/DSN-6420); when one RAID controller is down or has lost connection, the other RAID controller takes over its tasks immediately. This feature ensures that volumes and services are transferred seamlessly and simultaneously.
Applications
The optimised Input/Output Operations per second and unparalleled throughput are capable of providing run-time critical online services, such as Cloud storage, SQL, Exchange, and high-end surveillance storage. Furthermore, with its iSCSI interface, D-Links DSN-6000 Series is ideal for virtualisation environments - VMWare, Hyper-V, and Citrix. System administrators can install up to 32 Operating Systems onto the iSCSI system through the Boot-from-SAN functionality. With this feature, the multiple Operating Systems/Servers can be easily managed and protected by D-Link advanced data protection features, avoiding system downtime caused by single points of failure.
Expansion Options
The capacity of the DSN-6000 Series storage arrays can be easily expanded with the addition of the DSN-6020 Expansion Enclosure, which supports up to 12 SAS and SATA hard drives. Up to 4 DSN-6020 enclosures can be mounted in a storage array to expand the overall capacity to 60 drive bays, with up to 180TB, and even higher capacity as larger hard drives are introduced.
Green Energy Savings
The DSN-6000 Series is equipped with D-Link Green features for saving power. A hard drive can be a very power-hungry component in a SAN. When properly configured, the power consumption of hard drives can be reduced to a minimum using the auto disk spin down feature. The DSN- 6000 Series systems monitor environmental temperatures to optimise the cooling mechanism. The fan modules respond only when needed. The power supply modules are all 80 PLUS power efficient, providing a more favourable power conversion rate. When combined, these power saving features help to greatly reduce energy consumption and increase the product’s lifespan.
Technical Specifications:
Single Controller
DSN-6110
Dual Redundant Controller
DSN-6120
No. of Host Channels Per Controller
4 x 1 GbE
Expansion Enclosure
DSN-6020 series
Cache Memory Per Controller
4 GB
No. of Hard Drives (SAS and SATA II)
12
Max. No. of Hard Drives (SAS and SATA II)
60
Power Supply
2 x 500 W
Fan
2
Green
Auto disk spin-down
Advanced cooling mechanism
80 PLUS energy-efficient power supplies
iSCSI
Hardware iSCSI off-load engine
iSCSI jumbo frame
Header/Data digest
CHAP authentication
Supports up to 32 multiple nodes
Up to 128 sessions per controller
RAID and Volume
RAID level 0, 1, 0+1, 3, 5, 6, 10, 30, 50, 60, JBOD, N-way mirror
Up to 1024 logical volumes
Up to 32 hard drives per volume group
One logic volume can be shared by as many as 16 hosts
Global and dedicated hot spare
Write-through or write-back cache policy
Online volume expansion
Instant RAID volume availability
Auto volume rebuilding
On-line volume migration without system down time
High Availability
Dual-active RAID controller
Cache mirroring through high bandwidth channels
Flexible RAID group ownership management
Management port seamless take-over
Online firmware upgrade, no system downtime
Multi-path and load-balancing support (Microsoft MPIO, MC/S, Trunking, LACP)
Storage-based Replication
Advanced Data Protection
Writable snapshot
Microsoft Windows Volume Shadow Copy Services (VSS)
Configurable N-way mirror
Online disk roaming
Instant volume configuration restoration
Hot-pluggable battery backup module (BBM)
Management
Serial console
SSH telnet
HTTP Web UI
Secured Web (HTTPS)
iSNS
S.E.S.
Data Security
VLAN 802.1Q, 802.1p support
Notification
E-mail
SNMP trap
Browser pop-up windows
Syslog
Windows Messenger
OS Support
Windows; Linux
Solaris
Mac
Virtualization
VMWare
Hyper-V
Citrix
AC Input
100-240 V ~ 7 A - 4 A 500 W with PFC (Auto Switching)
DC Output
3.3 V - 25 A
5 V - 32 A
12 V - 40 A
Dimensions
2U 19” Rackmount
442.8 mm x 500.6 mm x 88.0 mm (W x D x H)
Operating Temperature
0 to 40 °C
Relative Humidity
5 % to 95 % non-condensing
