All stock codes associated to this product
AERD25SN35

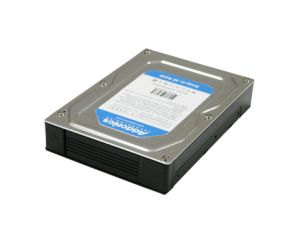

Snap-In 25 RAID
Overview
Is this a 3.5" SATA hard drive? Yes, this is a unique drive kit solution that mimics the function of a 3.5" SATA hard drive.
This Snap-In 25 RAID is a powerful drive enclosure solution that enables you to install up to two 2.5" SATA hard drives or SSD into the space of a 3.5" SATA hard drive. The enclosure is designed with the exact dimension, mounting hole location and the same connector as found in a commercial standard 3.5" SATA hard drive. So once the 2.5" hard drives are installed into the Snap-In 25 RAID, the entire enclosure can be used just like a regular 3.5" SATA hard drive.
The two 2.5" SATA drives can be standard 2.5" hard drive, Solid State Drive (SSD) or any of the Addonics 2.5" flash drive ( storage kit that enables CF, CFast or mSATA memory card to be used like 2.5" SSD). The two drives inside the Snap-In 25 RAID can be set to appear as two individual drives, a single large combined drive, a single drive volume in RAID 0 for fast READ/WRITE performance or RAID 1 for drive redundancy to protect against drive failure. Using fast solid state drive or high-speed flash media in a RAID 0 set up, the Snap-In 25 RAID can perform up to 3 Gbps in READ/WRITE, out performing most 3.5" SATA hard drives while consuming much less power and more resilient against shock and vibration. The Snap-In 25 RAID is an ideal solution for creating a large capacity and low cost SSD drive.
There is no special tool needed to install the drives into the Snap-In 25 RAID. Simply unlatch and swing open the door at the front, slide the drives into the two drive slots, close and latch the door to secure the drives, When the front door is unlatched and swung opened, the two drives automatically slides out for easy removal.
Applications

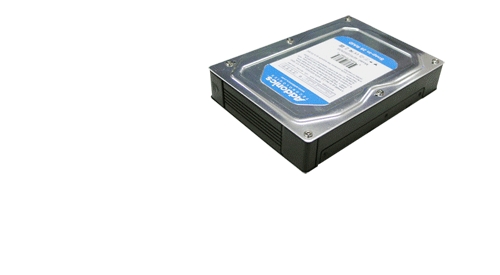

1. Use the Snap-In 25 RAID to convert two 2.5" SATA hard drives into a 3.5" SATA hard drive

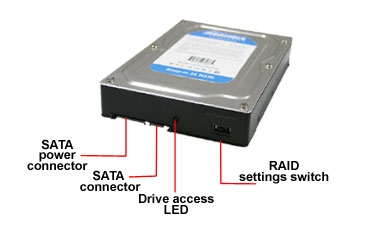

| Rear view of Snap-In 25 RAID |
Underside view of Snap-In 25 RAID |
 |
 |

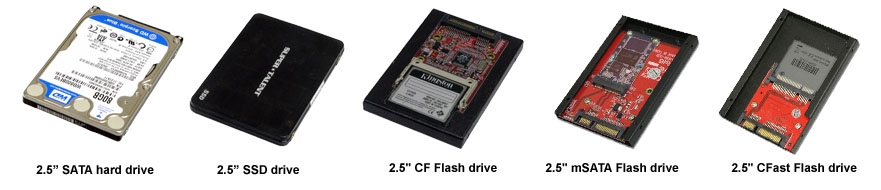

2. Any 2.5" SATA hard drive, SSD or Addonics 2.5" flash drive can be installed into the Snap-In 25 RAID enclosure:
3. Using the Snap-In 25 RAID as a dual 2.5" removable drive system
 |
|
- Enclosures accommodates up to two 2.5" SATA hard drive or SSD (with drive height up to 9.5 mm)
- Use as a direct replacement of 3.5" SATA hard drive

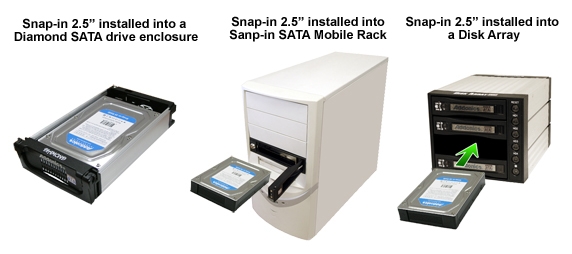

- Can be installed into any 3.5" removable hard drive system, Addonics Disk Array, Snap-In Mobile Rack, Diamond drive kit or any equipment that uses 3.5" SATA hard drive
- Use it as a dual 2.5" removable drive system

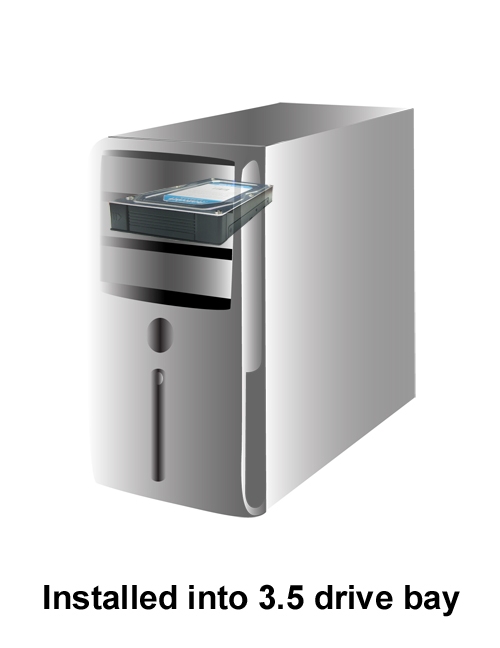

- Install into any standard 3.5" drive bay,
- 2.5" drives can be added or removed from the enclosure like tape cassette without restarting your system*
- Two drives can be set as one large drive, RAID 0, RAID 1 or to appear as two individual drives* to the OS
- SATA native interface - support SATA I, II or III standards
- Built-in RAID accelerator for maximum performance up to 3Gbps
- Point to point Serial ATA connection (no cable to connect hard drive to enclosure)
- Integrated with two snap-in drive bays to support adding and removing the hard drive from the enclosure without any special tool
- Aluminum / manganese alloy material for top and bottom covers for effective heat dissipation
- OS independent
Specifications:
- Two 2.5" HDD removable bays inside a 3.5" HDD drive space
- Enclosure has same dimension and mounting hole locations as the standard 3.5" SATA hard drive
- Supports SATA I, II or III SATA HDD (with drive height of 9.5 mm or less), SSD or Addonics 2.5" Flash drive
- Built-in hardware RAID that supports RAID 1, RAID 0, Big Drive or two individual drives with no RAID
- Individual drive setting requires PM compatible SATA port
- RAID setting via switches accessible on the back of the enclosure or via software utility for Windows, Mac or Linux OS
- Power and drive access combo LED

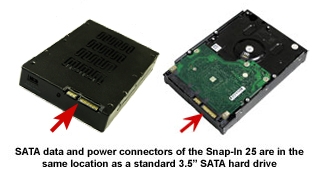

- Standard 15-pin and 7-pin SATA combo connector at the same location of the standard 3.5" SATA hard drive
- Aluminum top cover and steel alloy bottom cover with vents for effective heat dissipation
- Power consumption ~ 150 mA at 5V without drive
- Dimension (W x L x H): 4 x 5.75 x 1" (101.6 x 146.05 x 25.4 mm)
- Weight (with no drive installed): 8.04 oz (228 g)
- Operating temperature and humidity: 0 - 60 C, 5 - 90% RH
- Storage temperature and humidity: -20 - 70 C, 0 - 95 % RH non condensing
- RoHS compliant
