Access Control Lists (ACL, L2 to L4) restrict access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports and even VLAN ID. This is done by hardware, so switching performance would not be compromised. Moreover, the TL-SG5412F switch supports 802.1X authentication, which is used in conjunction with a RADIUS server to require some authentication information before access to the network is allowed. And more, it supports Guest VLAN to enable the non-802.1X clients to access the specific network resource. In addition, IP-MAC-Port-VID Binding, Port Security, Storm control, DHCP Snooping and IP Source Guard support can protect against broadcast storms, ARP and Denial-of-Service (DoS) attacks, etc. Regarding to the DoS defending, TL-SG5412F provides you some typical DoS attacks to select. You can protect these attacks more easily ever than before. TL-SG5412F will provide you robust security to the network.
Enterprise Level Manageability and Resiliency
TL-SG5412F supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface (GUI) or industry-standard Command Line Interface (CLI), either administration traffic can be protected through SSL or SSH encryptions. SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events. This sharing of vital management information saves time and money. With link aggregation, spanning tree protocol (STP/RSTP/MSTP) and virtual stack, a highly intelligent and scalable topology could be established, fulfilling the enterprise customers requirement of building a unified, resilient network.
Optimized Voice and Video Applications
To integrate voice, data and video service on one network, TL-SG5412F applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including IP or MAC address, TCP or UDP port number, etc, so voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN the switch supporting, the voice applications will operate with much smoother performance. For other multimedia-on-demand application such as IPTV, TL-SG5412F provides advanced features for easy stream management. For example, IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to preventunauthorized multicast access.
Features:
- LLDP serves to reduce the complexities of the network
- Link aggregation (LACP) increases aggregated bandwidth, optimizing the transport of business critical data
- IEEE 802.1s Multiple Spanning Tree, provides high link availability in multiple VLAN environments.
- Support IEEE 802.1d/w/s Spanning Tree (STP/RSTP/MSTP)
- IGMP snooping allows the forwarding of multicast packets such as streaming audio and video, without increasing network broadcast congestion.
- Non-blocking Layer 2 Switching Capacity
- GVRP (GARP VLAN Registration Protocol) allows automatic learning and dynamic assignment of VLANs
- Supports 4K active VLAN groups and 4K VLAN IDs
- Q-in-Q increases the network scalability by providing a hierarchical structure
- Supports 802.1P, Class of Service (CoS) with 4 priority queues per port
- Rate limiting confines the traffic flow accurately according to the preset value
- Supports multiple industry standard user authentication methods such as 802.1x, RADIUS Authentication, Supports 400 IP-MAC-Port-VID Binding entries
- IP Source Guard prevents IP spoofing attacks such as DoS
- Port Security enhances the security of all ports
- L2/L3/L4 Access Control Lists restrict untrusted access to the protected resource
- Virtual stackable provides high scalability and easy Single-IP-Management
- Supports Telnet, Cisco like CLI, SNMP v1/v2/v3, RMON and web access
- Supports SSL and SSH encryptions
- Port Mirroring enables monitoring selected ingress/egress traffic
Specifications:
| HARDWARE FEATURES |
| Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p |
| Interface |

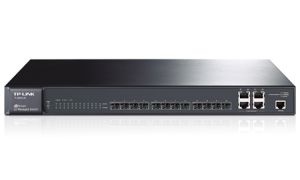

12 1000Mbps SFP slots
4 10/100/1000Mbps RJ45 Ports(Auto Negotiation/Auto MDI/MDIX)
1 Console Port |
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
100BASE-FX: MMF, SMF
1000BASE-X: MMF, SMF |
| Fan Quantity |
Fanless |
| Dimensions ( W x D x H ) |
17.3 10.2 1.7 in. (440 260 44 mm)
19-inch Rack mount Steel Case, 1U Height |
| Power Supply |
100-240VAC, 50/60Hz |
| PERFORMANCE |
| Bandwidth/Backplane |
24Gbps |
| MAC Address Table |
8k |
| Packet Forwarding Rate |
17.9Mpps |
| Jumbo Frame |
10KB |
| SOFTWARE FEATURES |
| L2 Switching Features |
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loop back detection
802.3x Flow Control |
| Quality of Service |
Support 802.1p CoS/DSCP priority
Support 4 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN |
| Link Aggregation |
Support static link aggregation
Support 802.3ad LACP
Up to 14 aggregation groups, containing 8 ports per
group
|
| VLAN |
Support IEEE802.1Q with 4K VLAN groups and 4K VIDs
Port/ MAC/Protocol-based VLAN
GARP/GVRP
Management VLAN configuration |
| Access Control List |
L2L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID
Time Range Based |
| Security |
IP-MAC-Port-VID Binding
IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN
DoS Defence
Dynamic ARP inspection (DAI)
SSH v1/v2
SSL v2/v3/TLSv1
Port Security
Broadcast/Multicast/Unknown-unicast Storm Control |
| Management |
Web-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
DHCP/BOOTP Client,DHCP Snooping,DHCP Option82
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Integrated NDP/NTDP feature
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS |
| OTHERS |
| Certification |
CE, FCC |
| Package Contents |
Switch; Power Cord; Quick Installation Guide; Resource CD; Rackmount Kit; Rubber Feet |
| System Requirements |
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux |
| Environment |
Operating Temperature: 0C~40C (32F~104F), Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing |
