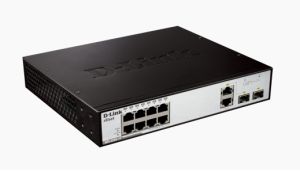

The DES-3200 Series is a member of D-Links Layer 2 xStack Managed Switch family designed for the Metro ETTX, FTTX, and Enterprise market. The DES-3200 Series provides 8/16/24 10/100 Mbps Fast Ethernet connections plus 2/4 combo Gigabit/SFP ports. The DES-3200-10/18 comes in a 9-inch desktop size and incorporates a fanless design suitable for ETTH deployment. The DES-3200-28/28F and DES-3200-28/ME provide copper or fber connections on Fast Ethernet, an advantage when used for Metro Ethernet applications. It also offers the benefcial design of 2/4 Gigabit/SFP Combo ports which provide up to 4 Gbps uplink bandwidth or dual Ethernet ring topology support. The DES-3200-28F facilitates up to 20 km connectivity for Metro Ethernet applications.



8, 16, or 24 10/100BASE-TX or 24
100BASE-FX Ports
2 or 4 Combo 1000BASE-T/SFP Ports
9 or 19 Rack-mount Width







Device Interfaces
" 8 10/100base-TX ports+ 2 combo 1000Base-T/SFP ports "



Max. Switch Capacity
" 5.6Gbps "

Max. Packet Forwarding Rate
" 4.2Mpps "



Packet Buffer
384KB



PoE
No



802.3af support
No



802.3at support
No



L2 Features
MAC Address Table
8K



802.3x flow control
Yes



Jumbo Frame
YES



802.1D STP
Yes



802.1w RSTP
Yes



802.1s MSTP
Yes



Link Aggregation
Yes



Port Mirroring
Yes



VLAN



VLAN Groups
4K

GVRP
Yes

802.1Q
Yes

Port-based VLAN
Yes

Port-based Q-in-Q
Yes

Selective Q-in-Q
Yes

MAC-based VLAN
Yes

Subnet-based VLAN
No

ISM VLAN
YES

Asymmetric VLAN
YES

VLAN Trunking
YES

L3 Features
Loopback Interfaces
No

Null Interface
No

VRRP
No

IPv6 Tunneling
No

L3 Routing
Inter-VLAN Routing
No

Policy-based Route
No

Route Redestribution
No

RIP v1/v2
No

RIPng
No

L3 Multicasting
PIM-DM
No

PIM-SM
No

IGMP (v1/v2/v3)
No

QoS (Quality of Service)
Priority Queue Mapping based on 802.1p
Yes

Priority Queue Mapping based on DSCP
YES

Number of Queues per port
4

Weighted Round Robin (WRR)
Yes

MPLS
VRF
NO

MPLS L3 VPN ( MPLS / BGP VPN )
NO

MPLS L2 VPN (VPWS)
NO

VPLS
NO

ACL (Access Control List)
ACL (Ingress / Egress / VLAN-based ACL)
Yes (Ingres)

Max ACL Rrofiles/ Rules
512/512

Security
SSH (v1/v2)
Yes(v2)

Port Security
Yes (64)

Broadcast/Multicast/Unicast Storm Control (min. granularity) (xx pps/bps)
Yes(62.5kb/s)

Traffic Segmentation
Yes

IP-MAC-Port Binding (IMPB vx.xx)
Yes(v3.61)

D-Link Safeguard Engine
YES

AAA

Port Based 802.1X Access Control
Yes

Host-based 802.1X Access Control
Yes

RADIUS
Yes

TACACS
Yes

Management

Web-based GUI
Yes

CLI
Yes

Telnet Server (IPv4/v6)
Yes(IPv4/v6)

Telnet Client (IPv4/v6)
Yes(IPv4)

SNMP (Version, IPv4/v6)
Yes(v1/v2c/v3,IPv4)

DHCP Relay
Yes

DHCP Server
No

WLAN Management Capability
No

Roaming
No

Access Control & Bandwidth Management
No

AP Management
No

WLAN Security
No
