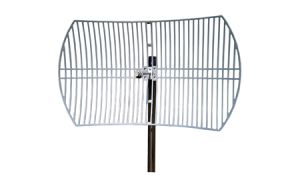

TP-Link TL-ANT5830B Outdoor Grid Parabolic Antenna, 30dBi

Melbourne - Techbuy Home Computers Custom PC Systems Tablets Networking Printers Phones Point of Sale Gaming

Merry Christmas from the team at Techbuy Christmas Trading Hours

HOME / Back -> Networking - Wireless -> Antennas -> TP-Link

TP-Link TL-ANT5830B Outdoor Grid Parabolic Antenna, 30dBi Signal Gain, Direction Operation, Outdoor, Aluminium Die Cast

No Longer Available

Part Number:

215848

(?) Brand:

TP-Link

Manuf No:

TL-ANT5830B
TLANT5830B

Shipping Weight:

14.5 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

TLANT5830B, TL-ANT5830B, NWTLANT5830B, NWTL-ANT5830B, 6935364052232

5GHz 30dBi Outdoor Grid Parabolic Antenna

TL-ANT5830B

Highlights:

Compliant with 802.11a/n, 5GHz wireless application
30dBi signal gain
Direction operation
N Type Female connector
Provided mounting kits enable easy installation for various environments

What This Product Does

The TL-ANT5830B 5GHz 30dBi Outdoor Grid Parabolic Antennais ideal for outdoor use by attaching to your wireless access points/routers which operate on less crowded 5GHz band. It could be used for long distance point-to-point connection, providing your stable wireless links. It is very easy to use, no configuration or software installation required.

Features:

Compliant with 802.11a/n, 5GHz wireless application
30dBi signal gain
Direction operation
N Type Female connector
Provided mounting kits enable easy installation for various environments

Specifications:

ANTENNA
Dimension	600900(mm)
Frequency	5.15~5.85GHz
Impedance	50 Ohms
Gain	30dBi
VSWR(MAX.)	1.8
HPBW/H( )	6
HPBW/V( )	4
Polarization	Vertical or Horizontal
Connector Type	N Female
Mounting	Pole Mount
Operating Temp.	-40~60(-40~140)
Storage Temp.	-40~60(-40~140)
F/B Ratio	30dB
Maximum Input Power	100W
Mounting Mast Diameter	30~50 mm
Radome Material	Aluminium Die Cast
Standards	RoHS, WEEE
Survival Wind Speed	241Km/hr

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year Manufact.

Full manufacturers warranty details are available at the manufacturers web site.
