HOME / Back -> Networking -> Switches -> HP

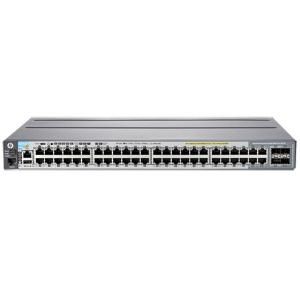

HP J9729A 2920-48G Switch - 44-Port 10/100/1000

IMG 1 of 1
No Longer Available
Part Number:
217009
(?) Brand:
HP Web Site
Manuf No:
J9729A
Shipping Weight:
5 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
J9729A, 2373564, 886112322564, 886112322526, NHHP-J9729A

HP 2920-48G-POE+ Switch (J9729A)


Technical specifications
Ports
 44 RJ-45 autosensing 10/100/1000 ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T), Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; 4 RJ-45 dual-personality 10/100/1000 PoE+ ports(IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); 2 module slots; 1 Stacking module slot; 1 Dual-personality (RJ-45 or USB micro-B); 1 USB 1.1; 1 RJ-45 out-of-band management port
Memory and processor
 : Tri Core ARM1176 @ 625 MHz, 512 MB SDRAM, packet buffer size: 11.25 MB (6.75MB Dynamic Egress + 4.5MB Ingress), 1 GB flash
Latency
 < 3.2 s (FIFO 64-byte packets)
Throughput
 130.9 million pps
Routing table size
 2048 entries
Management features
 HP PCM+; IMC - Intelligent Management Center; command-line interface; Web browser; configuration menu; out-of-band management (RJ-45 Ethernet); SNMP Manager; Telnet; RMON1; FTP; in-line and out-of-band; Out-of-band management (serial RS-232C or MicroUSB)
Switching capacity
 176 Gbps
Connectivity and communications
Denial of service protection
 CPU DoS Protection
General protocols
 IEEE 802.1AX-2008 Link Aggregation; IEEE 802.1D MAC Bridges; IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.1s Multiple Spanning Trees; IEEE 802.1v VLAN classification by Protocol and Port; IEEE 802.1w Rapid Reconfiguration of Spanning Tree; IEEE 802.3ab 1000BASE-T; IEEE 802.3ad Link Aggregation Control Protocol (LACP); IEEE 802.3af Power over Ethernet; IEEE 802.3at PoE+; IEEE 802.3az Energy Efficient Ethernet; IEEE 802.3x Flow Control; RFC 768 UDP; RFC 783 TFTP Protocol (revision 2); RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 854 TELNET; RFC 868 Time Protocol; RFC 951 BOOTP; RFC 1058 RIPv1; RFC 1256 ICMP Router Discovery Protocol (IRDP); RFC 1350 TFTP Protocol (revision 2); RFC 1519 CIDR; RFC 1542 BOOTP Extensions; RFC 2030 Simple Network Time Protocol (SNTP) v4; RFC 2131 DHCP; RFC 2236 IGMP Snooping; RFC 2453 RIPv2; RFC 2865 Remote Authentication Dial In User Service (RADIUS); RFC 2866 RADIUS Accounting; RFC 3046 DHCP Relay Agent Information Option; RFC 3411 An Architecture for Describing Simple Network Management Protocol (SNMP) Management Frameworks; RFC 3412 Message Processing and Dispatching for the Simple Network Management Protocol (SNMP); RFC 3413 Simple Network Management Protocol (SNMP) Applications; RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3); RFC 3415 View-based Access Control Model (VACM) for the Simple Network Management Protocol (SNMP); RFC 3416 Protocol Operations for SNMP; RFC 3417 Transport Mappings for the Simple Network Management Protocol (SNMP); RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol (SNMP); RFC 3576 Ext to RADIUS (CoA only); RFC 4541 Considerations for Internet Group Management Protocol (IGMP) and Multicast Listener Discovery (MLD) Snooping Switches; RFC 4675 RADIUS VLAN & Priority; RFC 4861 Neighbor Discovery for IP version 6 (IPv6); RFC 4862 IPv6 Stateless Address Autoconfiguration; UDLD (Uni-directional Link Detection)
Network management
 IEEE 802.1AB Link Layer Discovery Protocol (LLDP); RFC 1155 Structure of Management Information; RFC 1157 SNMPv1; RFC 2021 Remote Network Monitoring Management Information Base Version 2 using SMIv2 ; RFC 2576 Coexistence between SNMP versions; RFC 2578 Structure of Management Information Version 2 (SMIv2); RFC 2579 Textual Conventions for SMIv2; RFC 2580 Conformance Statements for SMIv2; RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events); RFC 2819 Remote Network Monitoring Management Information Base; RFC 2856 Textual Conventions for Additional High Capacity Data Types; RFC 2925 Definitions of Managed Objects for Remote Ping, Traceroute, and Lookup Operations ; RFC 3164 BSD syslog Protocol; RFC 3176 sFlow; RFC 3411 SNMP Management Frameworks; RFC 3412 SNMPv3 Message Processing; RFC 3414 SNMPv3 User-based Security Model (USM); RFC 3415 SNMPv3 View-based Access Control Model VACM); ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED); SNMPv1/v2c/v3; XRMON
Power and operating requirements
Power consumption
 487 W (maximum)
Input voltage
 100-240 VAC
Input frequency
 50/60 Hz
Safety
 CE Labeled; EN 60825-1 Safety of Laser Products-Part 1; FCC Part 15, Subpart B; GOST; EU RoHS Compliant; EN 55022 Class A; EN 55024: 1998; C-Tick; ICES-003, Class A; VCCI Class A; IEC 60950-1 :Second Edition ; IEC 60825-1; EN62479:2010; CSA C22.2 No. 60950-1-07 2nd Edition; EN 60950-1:2006+A11:2009+A1:2010+A12:2011; IEC 60950-1 (ed.2): am1
Electromagnetic compatibility
 FCC part 15 Class A; VCCI Class A; EN 55022/CISPR 22 Class A
Operating temperature range
 0 to 55C
Operating humidity range
 15 to 95% (noncondensing)
Power supply name
 1 x J9738A
Heat dissipation
 399 BTU/hr (420.95 kJ/hr)
Immunity standard
 EN 55024, CISPR 24; IEC 61000-4-2; IEC 61000-4-3; IEC 61000-4-4; IEC 61000-4-5; IEC 61000-4-6; IEC 61000-4-8; IEC 61000-4-11; IEC 61000-3-2; IEC 61000-3-3
Dimensions and Weight
Minimum dimensions (W x D x H)
 44.25 x 33.6 x 4.39 cm
Weight
 5.7 kg
What's included
What's in the box
 HP 2920-48G-POE+ Switch


No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (HP) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
