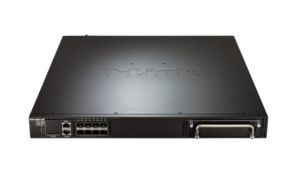

DXS-3600-16S/NSI | D-Link DXS-3600-16S Gigabit Switch - 8-Port 10/100/10000

Interfaces

• 8 fixed SFP+ 10G ports with one expansion module

Console Port

• RJ-45 console port for out-of-band management

Management Port

• 10/100/1000 Base-T RJ-45 Ethernet for out-of-band remote management

SD Card Slot

• 1 slot

Switching Capacity

• 480 Gbps

Max. Forwarding Rate

• 357.14 Mpps

Packet Buffer Memory

• 9 MB

MAC Address Table

• 128K

Power Input

• 100 to 240 V AC, 50/60 Hz

Maximum Power Consumption

• 74.3 W (without expansion module)
• 105.3 W (with DXS-3600-EM-4QXS)

Standby Power Consumption

• 69.9 W

Heat Dissipation (Max.)

• 253.36 BTU/hr (without expansion module)
• 359.07 BTU/hr (with DXS-3600-EM-4QXS)

Heat Dissipation (Standby)

• 238.36 BTU/hr

Dimensions (W x D x H)

• 440 x 506 x 44 mm (17.32 x 19.92 x 1.73 inches)

Weight

• 9.89 kg

Operating Temperature

• 0 to 45 C (32 to 113 F)

Storage Temperature

• 40 to 70 C (104 to 158 F)

Operating Humidity

• 0% to 95% RH

Storage Humidity

• 0% to 95% RH

Safety

• CB, cUL

EMI/EMC

• FCC, CE, C-Tick, IC, VCCI, BSMI

Standard Image (SI) Features Stackability

Stackability

• Virtual Stacking/Clustering of up to 32 units*
  o Supports D-Link Single IP Management

L2 Features

• MAC Address Table
  o 128K entries
• Flow Control
  o 802.3x Flow Control when using Full Duplex
  o Back Pressure when using Half Duplex
  o HOL Blocking Prevention
• Spanning Tree Protocol
  o 802.1D STP
  o 802.1w RSTP
  o 802.1s MSTP
  o Supports Root Restriction
• Jumbo Frame
  o Up to 12,000 bytes
• 802.1AX Link Aggregation
  o Max. 16 groups per device, 12 ports per group
• Port Mirroring
  o Supports One-to-One, Many-to-One
  o Supports Mirroring for Tx/Rx/Both
  o Supports 4 mirroring groups
• Flow Mirroring
  o Supports One-to-One, Many-to-One
  o Supports Mirroring for Rx
  o Supports 4 mirroring groups
• Loopback diagnostics*

L2 Multicast Features

• L2 Multicast Filtering
  o Forwards all groups
  o Forwards all unregistered groups
  o Filters all unregistered groups
• IGMP Snooping
  o IGMP v1/v2/v3 Snooping
  o Supports 4K IGMP groups
  o Supports 1K static multicast addresses
  o IGMP per VLAN
• MLD Snooping*
  o MLD v1/v2 Snooping
  o Supports 4K groups
  o Host-based MLD Snooping Fast Leave

L3 Features

• ARP
  o 512 Static ARP
  o Supports Gratuitous ARP*
• IP Interface
  o Supports 256 interfaces
• Loopback Interface*

L3 Routing

• Static Routing
  o Max. 1K IPv4 entries
  o Max. 512 IPv6 entries
  o Supports route distribution
  o Supports secondary route
  o Supports Equal Cost/Weighted Cost multi-path route
  o Default Routing

VLAN

• 802.1Q
• 802.1v
• Double VLAN (Q-in-Q)
  o Port-based Q-in-Q
  o Selective Q-in-Q
• Port-based VLAN
• MAC-based VLAN
• Subnet-based VLAN
• Private VLAN*
• VLAN Group
  o Max. 4K static VLAN groups
  o Max. 4094 VIDs
• GVRP o Up to 4K dynamic VLANs

AAA

• 802.1X Authentication
  o Supports Port-based access control
  o Supports Host-based access control
  o Dynamic VLAN Assignment
  o Identity-driven Policy (VLAN/ACL/QoS) Assignment
• Web-based Access Control (WAC)*
• MAC-based Access Control (MAC)*
• Guest VLAN

QoS (Quality of Service)

• 802.1p Quality of Service
• 8 queues per port
• Queue Handling
  o Strict
  o Weighted Round Robin (WRR)
  o Strict + WRR
  o Round Robin (RR)
  o Weighted Deficit Round Robin (WDRR)
• QoS based on
  o 802.1p Priority Queues
  o DSCP
  o IP address
  o MAC address
  o VLAN
  o IPv6 Traffic Class
  o IPv6 Flow Label
  o TCP/UDP port
• Bandwidth Control
  o Port-based (Ingress/Egress, min. granularity 8 Kb/s)
  o Flow-based (Ingress/Egress, min. granularity 8 Kb/s)
  o Per queue bandwidth control (min. granularity 8 Kb/s)
• Three Color Marker
  o trTCM
  o srTCM
• Congestion Control
  o WRED
• Support for following actions:
  o Remark 802.1p priority tag
  o Remark TOS/DSCP tag
  o Bandwidth Control
  o Committed Information Rate (CIR)

Access Control List (ACL)

• ACL based on:
  o 802.1p priority
  o VLAN
  o MAC address
  o EtherType
  o IP address
  o DSCP
  o Protocol type
  o TCP/UDP port number
  o IPv6 Traffic Class
  o IPv6 Flow Label
• Max. ACL entries:
  o 1792 ingress ACL rules
  o 1K egress ACL rules
  o 1K VLAN ACL rules
• Time-based ACL

Security

• Port Security
  o Supports up to 12K MAC addresses per port/system
• Broadcast/Multicast/Unicast Storm Control
• D-Link Safeguard Engine*
• DHCP Server Screening
• IP-Mac-Port Binding*
  o ARP inspection
  o IP inspection
  o DHCP Snooping
• ARP Spoofing Prevention*
• Traffic Segmentation
• SSH
• BPDU Attack Prevention
• DOS Attack Prevention

Management

• Web-based GUI
• CLI
• Telnet
• TFTP Client
• FTP Client
• Traffic Monitoring
• SNMP
  o Supports v1/v2/v3
• SNMP Trap
• System Log
• DHCP Client
• DHCP Server
• DHCP Relay
• Multiple Image
• Multiple Configuration
• Flash File System
• DNS Resolver
• CPU Monitoring
• MTU Setting
• Traceroute
• LLDP
• DNS Relay
• SMTP*
• DHCP Auto Configuration*
• SNTP
• RCP*
• RMONv1
• RMONv2
• Trusted Host*
• Password Encryption
• Debug Command

Enhanced Image (EI) Additional Features L3 Multicasting

L3 Multicasting

• Multicast Table Size: 2K
• IGMP v1, v2, v3
• PIM-SM
• PIM-DM
• PIM-Sparse-Dense Mode
• PIM-SSM
• DVMRP v3
• MLD v1/v2*

MPLS

• LDP
• MPLS LSP trigger filtering
• MPLS label-forwarding
• MPLS QoS
• MPLS ping and traceroute
• L2 protocol tunneling through PW
• VPWS
• VPLS
• PW Redundancy

L3 Features

• IPv6 Tunnelling
  o Static
  o ISATAP
  o GRE
  o 6to4
• VRRP

L3 VPN

• MPLS/BGP L3 VPN
• VRF-Lite
• MP-BGP
• VRF aware application

L3 Routing

• Supports 16K hardware routing entries shared by IPv4/IPv6
  o Max. 16K IPv4 entries
• Supports 8K hardware L3 forwarding entries shared by IPv4/IPv6
  o Max. 8K IPv4 entries
• RIP
  o RIP v1/v2
  o RIPng*
• OSPF
  o OSPF v2
  o OSPF v3
  o OSPF Passive Interface
  o Stub/NSSA Area
  o OSPF Equal Cost Route
• BGPv4
• Route Redistribution
• IP Directed Broadcast
• Policy Based Route*

MIB & RFC Standards

• RFC1213 MIB II
• RFC1907 SNMP v2 MIB
• RFC5519 IGMP v3 MIB
• RFC1724 RIP v2 MIB
• RFC2021 RMONv2 MIB
• RFC1643, RFC2358, RFC2665 Ether-like MIB
• RFC4836 802.3 MAU MIB
• RFC4363 802.1p MIB
• RFC2618 RADIUS Authentication Client MIB
• RFC4292 IP Forwarding Table MIB
• RFC2932 IPv4 Multicast Routing MIB
• RFC2934 PIM MIB for IPv4
• RFC2620 RADIUS Accounting Client MIB
• RFC2925 Traceroute MIB
• RFC2925 Ping MIB
• RFC1850 OSPF MIB
• Private MIB
• RFC1112, RFC2236, RFC3376, RFC4541 IGMP Snooping
• RFC4363 802.1v
• RFC2338 VRRP
• RFC1058, RFC1388, RFC1723, RFC2453, RFC2080 RIP
• RFC1370, RFC1765, RFC2328, RFC2740, RFC3101 makes RFC1587 obsolete, RFC2328 makes RFC1583, RFC2178 OSPF v2,v3
• RFC1771, RFC1997, RFC2439, RFC2796, RFC2842, RFC2918 BGP
• RFC3973 PIM-DM
• RFC5059 PIM-SM
• RFC3569, RFC4601, RFC4608, RFC4607, RFC4604 PIM SSM
• RFC3376 IGMP
• RFC2475 Priority Queue Mapping
• RFC2475, RFC2598 Class of Service (CoS)
• RFC2597, RFC2598 QoS Flow Actions
• RFC2697, RFC2698 Three Color MarkerRFC2093, RFC2904, RFC2095, RFC2906 AAA
• RFC1321, RFC2144, RFC2313, RFC2420, RFC2841, RFC3394 Encryption
• RFC2289 One-Time
• RFC3580 802.1X
• RFC2866 RADIUS Accounting
• RFC2138, RFC2139, RFC2865, RFC2618 RADIUS Author. For Management Access
• RFC1492 TACACS+ Auth. for Management Access
• RFC2068, RFC2616 Web-based GUI
• RFC854 Telnet Server
• RFC783, RFC1350 TFTP Client
• RFC1157, RFC1901, RFC1908, RFC2570, RFC2574, RFC2575, RFC3411-17 SNMP
• RFC3164 System Log
• RFC2819 RMON v1
• RFC951, RFC1542, RFC2131, RFC3046 BootP/DHCP Client
• RFC1769 Time Setting
• RFC2131 DHCP Server
• RFC1191 MTU Setting
• RFC1065, RFC1066, RFC1155, RFC1156, RFC2578 MIB Structure
• RFC1215 MIB Traps Convention
• RFC4188 Bridge MIB
• RFC1157, RFC2571-2576, RFC3411-3415, RFC3418 SNMP MIB
• RFC1901-1908,RFC1442, RFC2578 SNMP v2 MIB
• RFC2737 Entity MIB
• RFC768 UDP
• RFC791 IP
• RFC792 ICMP
• RFC793 TCP
• RFC826 ARP
• RFC1338, RFC1519 CIDR
• RFC2716, RFC3748 EAP
• RFC2571, RFC2572, RFC2573, RFC2574 SNMP

*Support in future firmware release
