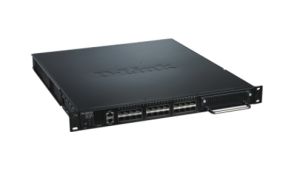

DXS-3600-32S/NSI | D-Link DXS-3600-32S Gigabit Switch - 1-Port 10/100/10000

L2 Features

MAC Address Table

• 128K entries

Flow Control

• 802.3x Flow Control when Full Duplex
• Back Pressure when Half Duplex
• HOL Blocking Prevention

Spanning Tree Protocol

• 802.1D STP
• 802.1w RSTP
• 802.1s MSTP
• Support Root Restriction

802.1AX Link Aggregation

• Max. 16 groups per device, 12 ports per group

Port Mirroring

• One-to-One, Many-to-One
• Mirroring for Tx/Rx/Both
• 4 mirroring groups

Flow Mirroring

• One-to-One, Many-to-One
• Mirroring for Rx
• 4 mirroring groups

Jumbo Frame

• Up to 12,000 bytes

L2 Multicast Features
IGMP Snooping

• IGMP v1/v2/v3 Snooping
• Supports 4K IGMP groups
• Supports 1K static multicast addresses
• IGMP per VLAN

L2 Multicast Filtering

• Forwards all groups
• Forwards all unregistered groups
• Filters all unregistered groups

VLAN

• 802.1Q
• 802.1v

Double VLAN (Q-in-Q)

• Port-based Q-in-Q
• Selective Q-in-Q

Port-based VLAN

MAC-based VLAN

Subnet-based VLAN

VLAN Group

• Max. 4K static VLAN groups
• Max. 4094 VIDs

GVRP

• Up to 4K dynamic VLANs

QoS (Quality of Service)

802.1p Quality of Service

8 queues per port

Queue Handling

• Strict
• Weighted Round Robin (WRR)
• Strict + WRR
• Round Robin (RR)
• Weighted Elastic Round Robin (WERR)

CoS based on

• 802.1p Priority Queues
• DSCP
• IP address
• MAC address
• VLAN
• IPv6 Traffic Class
• IPv6 flow label
• TCP/UDP port

Bandwidth Control

• Port-based (Ingress/Egress, min. granularity 8 Kb/s)
• Flow-based (Ingress/Egress, min. granularity 8 Kb/s)
• Per queue bandwidth control (min. granularity 8 Kb/s)

Three Color Marker

• trTCM
• srTCM

Congestion Control

• WRED

Support for following actions:

• Remark 802.1p priority tag
• Remark TOS/DSCP tag
• Bandwidth Control
• Committed Information Rate (CIR)

L3 Features

• ARP
• 512 Static ARP

• IP Interface
• Supports 256 interfaces

L3 Routing

• Default Routing

• Static Routing
  • Max. 1K IPv4 entries
  • Support route distribution
  • Support secondary route
  • Support Equal Cost/Weighted Cost multi-path route

Access Control List (ACL)

• Max. ACL entries:
• 1792 ingress ACL rule
• 1K egress ACL rules
• 1K VLAN ACL rules

• Time-based ACL

• ACL based on:
• 802.1p priority
• VLAN
• MAC address
• Ether type
• IP address
• DSCP
• Protocol type
• TCP/UDP port number
• IPv6 Traffic Class
• IPv6 flow label

Security

• Port Security (up to 12K MAC addresses per port/system)
• Broadcast/Multicast/Unicast Storm Control
• Traffic Segmentation
• SSH
• BPDU Attack Prevention
• DOS Attack Prevention

AAA

• 802.1X Authentication
• Supports Port-based access control
• Supports Host-based access control
• Dynamic VLAN Assignment
• Identity-driven Policy (VLAN/ACL/QoS) Assignment

• Guest VLAN

MIB & RFC Standards

• RFC1213 MIB II
• RFC1907 SNMP v2 MIB
• RFC5519 IGMP v3 MIB
• RFC1724 RIP v2 MIB
• RFC2021 RMONv2 MIB
• RFC1643, RFC2358, RFC2665 Ether-like MIB
• RFC2668 802.3 MAU MIB
• RFC2674 802.1p MIB
• RFC2618 RADIUS Authentication Client MIB
• RFC2096 IP Forwarding Table MIB
• RFC2932 IPv4 Multicast Routing MIB
• RFC2934 PIM MIB for IPv4
• RFC2620 RADIUS Accounting Client MIB
• RFC2925 Trace Out MIB
• RFC2925 Ping MIB
• RFC1850 OSPF MIB
• Private MIB
• RFC1112, RFC2236, RFC3376, RFC4541 IGMP Snooping
• RFC4363 802.1v
• RFC2338 VRRP
• RFC1058, RFC1388, RFC1723, RFC2453, RFC2080 RIP
• RFC1370, RFC1765, RFC2328, RFC2740, RFC3101 makes RFC1587 obsolete, RFC2328 makes RFC1583, RFC2178 OSPF v2,v3
• RFC1771, RFC1997, RFC2439, RFC2796, RFC2842, RFC2918 BGP
• RFC3973 PIM-DM
• RFC5059 PIM-SM
• RFC3569, RFC4601, RFC4608, RFC4607, RFC4604 PIM SSM
• RFC3376 IGMP
• RFC2475 Priority Queue Mapping
• RFC2475, RFC2598 Class of Service (CoS)
• RFC2597, RFC2598 QoS Flow Actions
• RFC2697, RFC2698 Three Color Marker
• RFC2093, RFC2904, RFC2095, RFC2906 AAA
• RFC1321, RFC2144, RFC2313, RFC2420, RFC2841, RFC3394 Encryption
• RFC2289 One-Time
• RFC3580 802.1X
• RFC2866 RADIUS Accounting
• RFC2138, RFC2139, RFC2865, RFC2618 RADIUS Auth. for Management Access
• RFC1492 TACACS+ Auth. for Management Access
• FC2068, RFC2616 Web-based GUI
• RFC854 Telnet Server
• RFC783, RFC1350 TFTP Client
• RFC1157, RFC1901, RFC1908, RFC2570, RFC2574, RFC2575, RFC3411-17 SNMP
• RFC3164 System Log
• RFC2819 RMON v1
• RFC951, RFC1542, RFC2131, RFC3046 BootP/DHCP Client
• RFC1769 Time Setting
• RFC2131 DHCP Server
• RFC1191 MTU Setting
• RFC1065, RFC1066, RFC1155, RFC1156, RFC2578 MIB Structure
• RFC1215 MIB Traps Convention
• RFC4188 Bridge MIB
• RFC1157, RFC2571-2576, RFC3411-3415, RFC3418 SNMP MIB
• RFC1901-1908,RFC1442, RFC2578 SNMP v2 MIB
• RFC2737 Entity MIB
• RFC768 UDP
• RFC791 IP
• RFC792 ICMP
• RFC793 TCP
• RFC826 ARP
• RFC1338, RFC1519 CIDR
• RFC2716, RFC3748 EAP
• RFC2571, RFC2572, RFC2573, RFC2574 SNMP

Management

• Web-based GUI
• CLI
• Telnet
• TFTP Client
• FTP Client
• Traffic Monitoring
• SNMP v1/v2/v3
• SNMP Trap
• System Log
• DHCP Client
• DHCP Server
• DHCP Relay
• Multiple Image
• Multiple Configuration
• Flash File System
• DNS Resolver
• CPU Monitoring
• MTU Setting
• Traceroute
• LLDP
• DNS Relay
• SNTP
• RCP2
• RMONv1
• RMONv2
• Password Encryption
• Debug Command

Hardware Features Interfaces: 24x fixed SFP+ ports 1x RJ-45 console port for out-of-band local management 1x 10/100/1000Base-T Ethernet port for out-of-band remote management 1x SD card slot Performance Switching capacity: 960 Gbps Max. forwarding rate: 595.2 Mpps Packet buffer memory: 9 MB MAC Address Table: 128K Physical

• Power input: 100 to 240 V AC, 50/60 Hz
• Power consumption: 115.3 W (max.), 85.9 W (standby)
• Heat dissipation: 393.4 BTU/hr (max.), 293.1 BTU/hr (standby)
• Dimensions: 440 x 506 x 44 mm
• Weight: 9.84 Kg.

Temperature

• Operating: 0 to 45 C
• Storage: 40 to 70 C

Humidity

• Operating: 0% to 95% RH
• Storage: 0% to 95% RH

Diagnostic LEDs:

• Per device: Power 1, Power 2, Fan 1, Fan 2, Fan 3, Console, MGMT, SD Card, Stacking ID
• Per port: Link/ACTIVITY/Speed

Certifications

• Safety: CB, cUL, LVD
• EMI/EMC: FCaC, CE, C-Tick, IC, VCCI
