All stock codes associated to this product
FSD803AU, FSD-803-AU

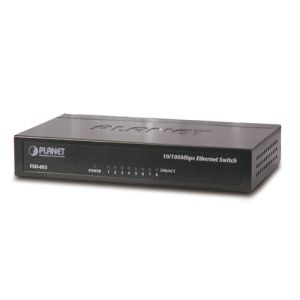

FSD-803
8-Port 10/100Mbps Fast Ethernet Switch (Metal)
Overview
PLANET Fast Ethernet Switch FSD-803 provides business and home users a cost-effective integrated system of small-office / home-office networking. It is with compact-sized metal design and just right for the network of 10 to 50 users.
The FSD-803 is a highly reliable network switch ideal for bridging Ethernet to Fast Ethernet workgroups or networks. It has 2K MAC Address table and provides 448K bits buffer memory. The wire-speed packets transfer capability is provided to avoid packet loss. All RJ-45 copper interfaces in the FSD-803 support 10/100Mbps Auto-Negotiation for optimal speed detection through RJ-45 Category 5 or 5e cables. It also supports Auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. Furthermore, the Flow Control function by the FSD-803 supports routers and Servers to directly connect to it for fast and reliable data transfer.
To segment the network and ease the network traffic, the 8-Port 10/100Mbps Switch is the ideal backbone for SOHO switched networks. Moreover, for simple troubleshooting, the FSD-803 provides array LED indicators so the network status can be monitored at a glance.
Application
Ideal Switch for Home / SOHO Network
With 8 10/100Mbps Fast Ethernet ports, the FSD-803 provides a cost-effective and high-performance solution for Home and SOHO network applications.
Key Features
- Complies with IEEE 802.3, 10Base-T, IEEE 802.3u 100Base-TX Ethernet standards
- 8 10/100Mbps Fast Ethernet ports
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- Hardware based 10/100Mbps, half / full duplex , flow control and auto-negotiation
- IEEE 802.3x flow control for full duplex operation and Backpressure for half duplex operation
- Integrated address look-up engine, supports 2K absolute MAC addresses
- 448K bits packet buffer memory
- One power on/off button for energy saving
- Automatic address learning and address aging
- Supports Auto MDI/MDI-X function
- Supports CSMA/CD protocol
- External power adapter 12V 0.5A
- FCC, CE class A compliant
Specifications:
| Hardware Specification |
| Hardware version |
3 |
| 10/100Base-TX Ports |
8 |
| LED Display |
One for Power, One for Link / Act per port |
| Dimension (W x D x H) |
160 x 80 x 28 mm |
| Weight |
325g |
| Power Requirement |
DC 12V, 500mA |
| Power Consumption / Dissipation |
4.3 Watts / 14.6 BTU |
| Switch Specification |
| Switch Processing Scheme |
Store-and-Forward |
| Address Table |
2K |
| Packet buffer memory |
448K bits |
| Flow Control |
Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex |
| Switch Fabric |
1.6Gbps |
| Throughput (packet per second) |
1.19Mpps |
| Standard Conformance |
| Standard |
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100 Base-TX Fast Ethernet
IEEE 802.3x Full-duplex Flow Control
|
| Regulation Compliance |
FCC Part 15 Class A CE |
| Environment |
| Temperature |
Operating: 0~50 Degree C
Storage: -10~70 Degree C |
| Humidity |
Operating: 5~90%
Storage: 5~90% (Non-Condensing) |

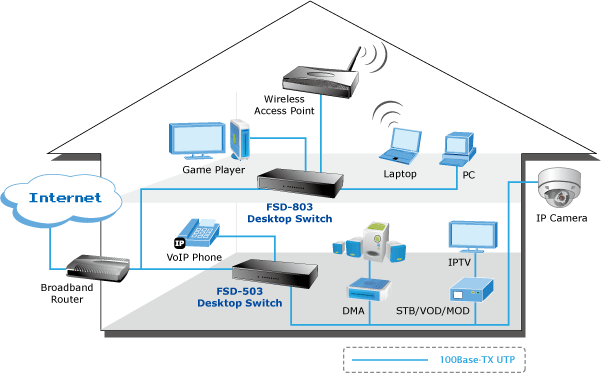

Networking
