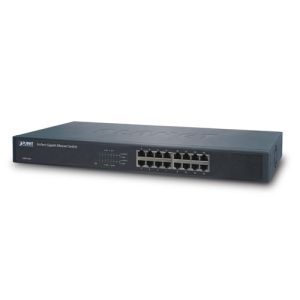

GSW-1601
16-Port 10/100/1000Mbps Gigabit Ethernet Switch
Overview
Cost-Effective Gigabit Solution for Enterprise Backbone and Data Center Networking
The PLANET GSW-1601 provides 16 RJ-45 10/100/1000Mbps ports for high-speed network connectivity. It can automatically identify and determine the correct transmission speed and half / full duplex mode of the attached devices with its 16 Gigabit ports that support 9K jumbo frame feature. Therefore, the GSW-1601 can handle extremely large amounts of data transmission in a secure topology linking to a backbone or high-power servers.
High Performance
The GSW-1601 provides high performance architecture of switch that is capable of providing the non-blocking switch fabric and wire-speed throughput as high as 32Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. Besides, the Flow Control function of the GSW-1601 enables routers and servers directly connect to the Switch for fast and reliable data transfer.
All RJ-45 copper interfaces in the GSW-1601 support 10/100/1000Mbps Auto-Negotiation for optimal speed detection through RJ-45 Category 6, 5 or 5e cables. It also supports standard for Auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.
Excellent Traffic Transmission
The GSW-1601 supports Store-and-Forward forwarding scheme to ensure low latency and high data integrity, which eliminates unnecessary traffic and relieves congestion on critical network paths. With an intelligent address recognition algorithm, the GSW-1601 could recognize up to 8K different MAC address. The high data throughput and 32Gbps internal switching fabric makes it ideal for most Gigabit environments, especially when network upgrades to a Gigabit environment.
Application

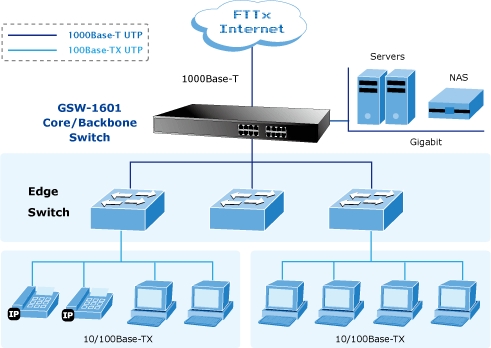

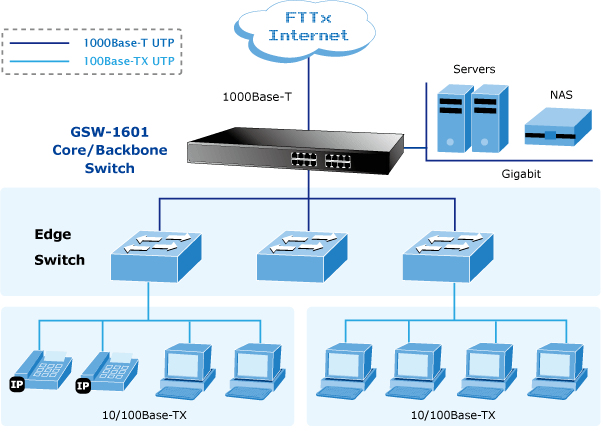

Backbone Switch
With up to 32 Gigabits per second of non-blocking switch fabric, the GSW-1601 can easily provide the high bandwidth required both now and future.

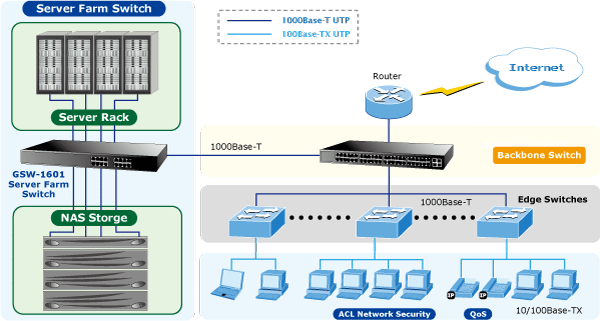

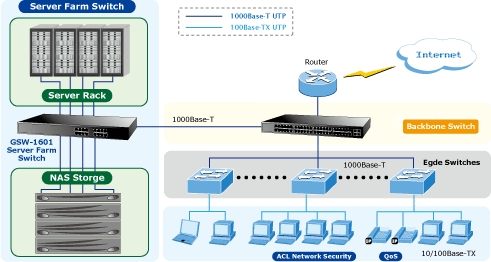

Server Farm Switch
Providing 16 Gigabit Ethernet ports, the GSW-1601 is ideal to be used as a server farm Switch connecting to your servers and powerful desktops.
- Comply with IEEE 802.3, 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T Ethernet standard
- 16 10/100/1000Mbps Gigabit Ethernet ports
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- Hardware based 10/100Mbps, half / full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation
- IEEE 802.3x flow control for full duplex operation and Backpressure for half duplex operation
- Integrated address look-up engine, supports 8K absolute MAC addresses
- 9K Jumbo packet support
- Automatic address learning and address aging
- Supports Auto MDI/MDI-X function
- Supports CSMA/CD protocol
- 100-240V AC, 0.6A, 50/60Hz universal Power input
- FCC, CE class A compliant
Specifications:
| Hardware Specification |
| Hardware Version |
Version 5 |
| 10/100/1000Base-T MDI/MDIX Ports |
16 |
| Throughput (packet per second) |
23.8Mpps |
| Switch Fabric |
32Gbps / non-blocking |
| Weight |
1.9kg |
| Power Consumption / Dissipation |
13 Watts / 44 BTU |
| Power Requirement |
100-240V AC, 0.6A, 50/60Hz |
| Dimension (W x D x H) |
440 x 180 x 45 mm, 1U height |
| Switch Processing Scheme |
Store-and-Forward |
| Address Table |
8K entries |
| Jumbo packet size |
9K |
| Flow Control |
Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex |
| Standards Conformance |
| Regulation Compliance |
FCC Part 15 Class A, CE |
| Standards Compliance |
IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3ab(Gigabit Ethernet)
IEEE 802.3x (Full-duplex flow control)
|
| Environmental Specification |
| Temperature |
| Operating: |
0 ~ 50 Degree C |
| Storage: |
-10 ~ 70 Degree C |
|
| Humidity |
| Operating: |
5 ~ 95 Degree C |
| Storage: |
5 ~ 95 Degree C |
|
Networking
