FNSW-4800

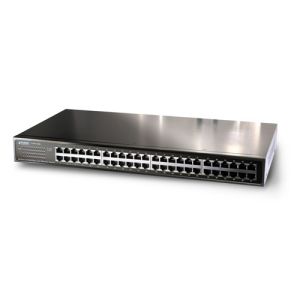

48-Port 10/100Mbps Fast Ethernet Switch
Perfectly designed for low cost, high performance, and easy installation, the PLANET 48-port 10/100Base-TX Fast Ethernet Switch is your best choice of switched networks.
With increasing bandwidth requirements for local area networks, PLANET's FNSW-4800 Fast Ethernet Switch is the ideal option to alleviate bottlenecks in client / server and peer-to-peer environments in a cost-effective way.
The Switch provides a combination of 48 Fast Ethernet Switching ports that provide users with high-speed network connections. With its Auto-Negotiation capability, all the RJ-45/STP ports of FNSW-4800 can be configured to speeds of 10/20Mbps or 100/200Mbps automatically. In addition, the product is equipped with the MDI/ MDIX auto-detection for easily plug and play connection, regardless of cabling types- straight through or crossover.
The high-performance throughput at filtering/forwarding rate is up to 14,880 packets per second in 10Mbps, and 148,800pps in 100Mbps. Along with Its dynamic shared memory buffer, the FNSW-4800 can boost bandwidth, eliminate unnecessary traffic, and relieve congestion on your critical server path.

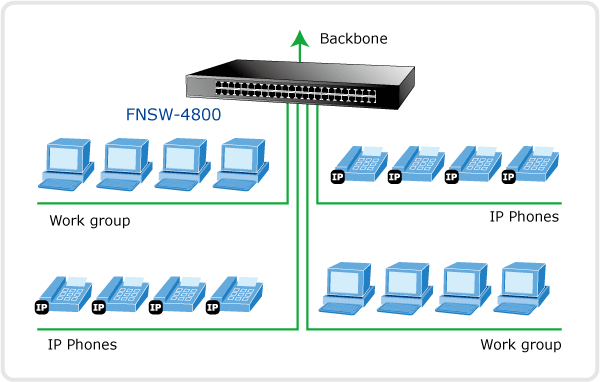

Application
Workgroup Switch
With up to 8.8Gbps non-blocking switching fabric, the FNSW-4800 can easily have the high bandwidth Fast Ethernet network backbone or your workgroup's backbone.
Department Switch
Uplink directly using any straight or crossover cable to the backbone switch provides the connective to back plane yet segment the network traffic of the department to your backbone.
Key Features
- Complies with IEEE802.3 and 802.3u for 10 / 100Base-TX Fast Ethernet standard
- 48-port 10 / 100Base-TX Fast Ethernet Switch
- Wire-speed "Store-and-Forward" filtering / forwarding eliminates bad data packets with minimal delay
- 100Base-TX ports automatically sense and set optimal line speed from
- 10 / 20, 100 / 200Mbps, All 100Base-TX port support Auto-Negotiation function
- Shared buffer memory and up to 8K Fast Ethernet Switch-entry MAC source address table make for fast handling of data packets
- 2.5Mbit embedded memory for packet buffers
- Auto-MDI / MDI-X detection supports
- Flow control to eliminate packets loss
- Supports up to 1522 bytes packet and 802.1Q VLAN transparent
- Internal, full-range power supply suitable for worldwide use
Specifications:
| Hardware Specification |
| Hardware Version |
2 |
| Ports |
48 10/100Base-TX RJ-45 Auto-MDI/MDI-X ports |
| Switch Processing Scheme |
Store-and-forward |
| Throughput (packet per second) |
6.6Mpps |
| Switch fabric |
8.8Gbps |
| Address Table |
8K entries |
| Share data Buffer |
2.5Mbit |
| Flow Control |
Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex |
| Dimensions (W x D x H) |
440 x 260 x 44 mm, 1U height |
| Weight |
3.11 kg |
| Power Requirement |
100~240V AC, 50-60Hz, 0.6A |
| Power Consumption / Dissipation |
18 Watts maximum / 61 BTU/hr maximum |
| Temperature |
Operating: 0~50 Degree C
Storage -40~70 Degree C |
| Humidity |
Operating: 10~90%;
Storage: 5~95% (Non-condensing) |
| Standards Conformance |
| Regulation Compliance |
FCC Part 15 Class A, CE |
| Standards Compliance |
IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3x (Flow control) |
