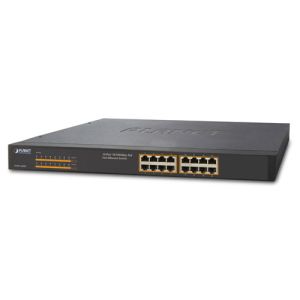

16-Port 10/100Mbps PoE Fast Ethernet Switch
Overview
Centralized Power Distribution for Ethernet Networking
To fulfill the demand of sufficient PoE power for network applications with 10/100Mbps wire speed transmission, PLANET introduces a new member in the 802.3af PoE Fast Ethernet Switch family – FNSW-1600P, the 16-Port 10/100Mbps 802.3af Power over Ethernet Switch with 125 Watts PoE budget. The 16 Fast Ethernet ports integrated with 802.3af PoE injector function are able to drive at least 9 x IEEE 802.3af 12.95Watts Class 3 compliant powered devices. The FNSW-1600P also provides a simple, cost-effective, and non-blocking wire-speed performance with 19-inch metal shape for deployment in compact housing, SOHO office or department network application.
Great Ethernet Traffic Transmission Ability
The FNSW-1600P features high performance switch architecture capable of providing the non-blocking 3.2Gbps switch fabric and wire-speed throughput as high as 2.38Mpps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. Besides, the 802.3x Full-Duplex flow control function of the FNSW-1600P enables PD devices and servers directly connect to the Switch for wire-speed packet transfer performance without risk of packet loss.
Easy and Cost-effective Network Deployment
With data and power over Ethernet from one unit, the FNSW-1600P shall reduce the need of cables and dedicated electrical outlets on the wall, ceiling or any unreachable place. It helps to lower the installation costs, simplify the installation effort and eliminate the need for electricians or extension cords. With 125 Watts Power Budget, the FNSW-1600P is ideal for small business and workgroups deploying the PoE for the wireless access points, IP surveillance cameras and IP phones in any places easily and efficiently.
Application
Department/ Workgroup PoE Network

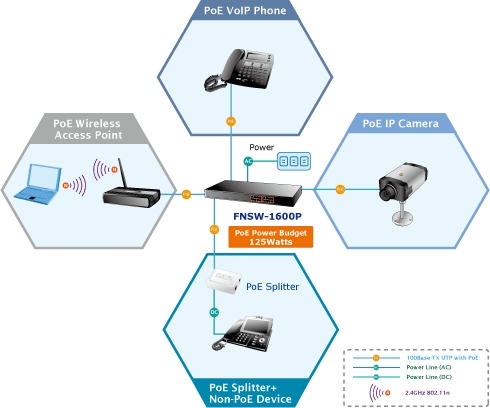

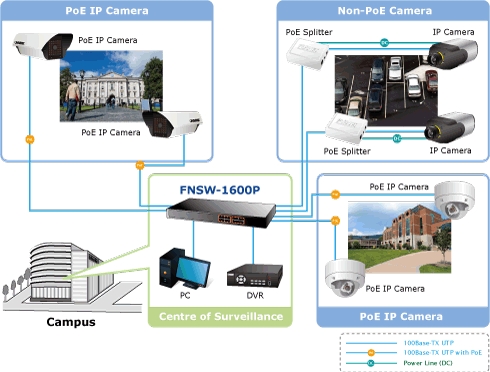

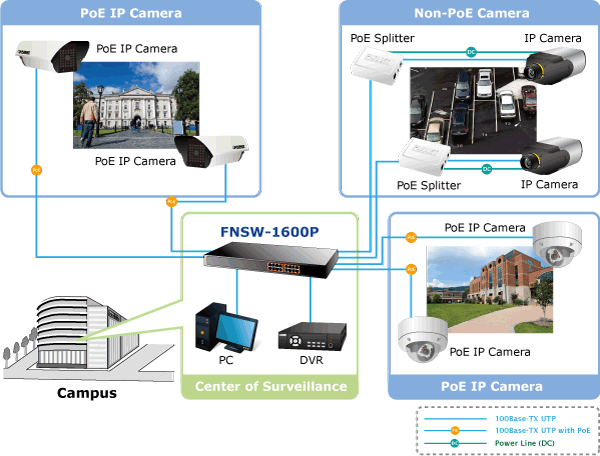

Providing 16-Port 802.3af PoE in-line power interfaces, the FNSW-1600P can easily build a power centrally-controlled IP phone system, IP camera system and Wireless AP group for the enterprise. IP Cameras can be installed around the corner in the company or campus for surveillance demands; or Wireless AP be deployed to build a wireless roaming environment. Without the power-socket limitation, the Switch makes the installation of cameras and Wireless AP more easily and efficiently.
Key Features
RJ-45 Interface
- 16-Port 10/100Mbps Fast Ethernet ports
- All ports support 48V DC power to PoE Powered Device
Power over Ethernet
- Complies with IEEE 802.3af Power over Ethernet Mid-Span PSE
- Up to 16 IEEE 802.3af devices powered
- PoE Power Budget 125 Watts
- Supports PoE Power up to 15.4 Watts for each PoE port
- Auto detect powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m
Switching
- Hardware based 10/100Mbps Auto-Negotiation and Auto MDI / MDI-X
- Flow control for Full Duplex operation and back pressure for Half Duplex operation
- Integrates address look-up engine, supporting 8K absolute MAC addresses
- Automatic address learning and address aging
Hardware
- 19-inch size, 1U height
- LED indicators for PoE ready and PoE activity
- 2 silent fans to support stable and efficient power performance
Specifications:
| Hardware Specification |
| Network Connector |
16-Port RJ-45 for 10/100Base-TX |
| PoE Inject Port |
16 |
| LED Display |
System: Power (Green)
Per port : PoE (Orange)
LNK/ACT (Green)
|
| Switch Architecture |
Store and Forward switch architecture |
| MAC Address |
8K MAC address table with Auto learning function |
| Switch Fabric |
3.2Gbps |
| Switch Throughput |
2.38Mpps@64Bytes |
| Power Requirement |
AC 100~240V, 50/60Hz, 2A max. |
| Power Consumption |
Max.135 Watts / 460 BTU |
| Dimension (W x D x H) |
445 x 207 x 45 mm (1U height) |
| Weight |
2.33kg |
| Power over Ethernet |
| PoE Standard |
IEEE 802.3af Power over Ethernet |
| PoE Power Supply Type |
Mid-Span, PSE |
| PoE Power Output |
Per Port 48V DC, 350mA. Max. 15.4 Watts |
| Power Pin Assignment |
4/5(-), 7/8(+) |
| PoE Power Budget |
125 Watts |
| Standard Conformance |
| Regulation Compliance |
FCC Class B, CE |
| Standard Compliance |
IEEE 802.3: Ethernet
IEEE 802.3u: Fast Ethernet
IEEE 802.3x: Flow Control
IEEE 802.3af: Power over Ethernet
|
| Environment |
| Operating environment |
0 ~ 50 Degree C |
| Storage environment |
-40 ~ 70 Degree C |
| Operating Humidity |
5 ~ 95%, relative humidity, non-condensing |
| Storage Humidity |
5 ~ 95%, relative humidity, non-condensing |
