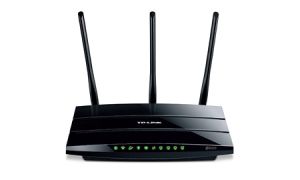

TP-Link TD-W8980 N600 Dual Band ADSL2+ Modem Router - 802.11n/b/g

TP-LINKs N600 Wireless Dual Band Gigabit ADSL2+ Modem Router TD-W8980 is an incredibly robust all-in-one device combining the crystal clear 5GHz band and the traditional 2.4GHz band. With 600Mbps of total bandwidth, simple tasks like sending e-mails can be handled by the 2.4GHz bandwhile bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band all at the same time. Its all gigabit ports allow users to access high-speed internet connections and share them wirelessly at blazing 300Mbps wireless speeds or by using one of its 4 gigabit LAN ports. With 2 multifunctional USB ports, users can share printers, files and media across the local network or the internet.Whats more, this All-in-one device allows for two different connection types: ADSL, or Ethernet WAN, giving users the flexibility to access the Internet whichever method is most convenient.





The TD-W8980 does the work of several networking devices packed into one sleek device. With an ADSL2+ Modem, NAT Router, 4-Port Switch and Wireless N Access Point, this device eliminates the need to purchase multiple devices to access and share a high-speed internet connections.





Two separate wireless networks that will run on either the 2.4GHz or 5GHz band, simultaneously. The traditional 2.4GHz band can provides more range and is great for everyday web surfing use but it is more susceptible to interference from wireless devices running on the same frequency. While the 5GHz band can provide faster wireless speeds and avoid much interference .This way, the 5GHz band is just right for bandwidth heavy tasks like on-line gaming and HD streaming. Now you can enjoy both advantages of the two bands by just having one device.





With 300Mbps 802.11n wireless and 4 gigabit LAN ports, the TD-W8980 is the ideal choice for bandwidth heavy users that rely on speedy, reliable connections for bandwidth intensive work or entertainment such as lag-free conference calls, HD video streaming or online gaming.



Using the TD-W8980s two multi-functional USB 2.0 ports, users can share printers, files and media either throughout the network at home with several different computers or even away, using the devices FTP server functions so that you never have to part with your files.





The TD-W8980 supports ADSL or Ethernet WAN connections (EWAN) that allow users to have the flexibility of different Internet connections among ADSL, cable or fiber modem using its interchangeable LAN/WAN port. This unique feature makes it easier when users need to change to fiber or cable services when necessary.





This device supports IPv6, which is foundational to the next generation Internet and enables a range of new services and improved user experiences.



The ability to support up to 10 IPsec VPN tunnels simultaneously gives TD-W8980 users the flexibility to setup a virtual private network, to guarantee network security and take advantage of network access whether at home or away, for work or simply to access files from their local networks.





HARDWARE FEATURES
Interface	4 10/100/1000Mbps RJ45 Ports 1 RJ11 Port 2 USB 2.0 Ports
Button	1 Power On/Off Button 1 WPS Button 1 Wi-Fi On/Off Switch 1 RESET Button
External Power Supply	12VDC/1.5A
Dimensions (W X D X H)	9.6*6.4*1.3 in.(243 x 160.6 x 32.5mm)
IEEE Standards	IEEE 802.3, 802.3u
ADSL Standards	Full-rate ANSI T1.413 Issue 2 ITU-T G.992.1(G.DMT) ITU-T G.994.1 (G.hs) ITU-T G.995.1
ADSL2 Standards	ITU-T G.992.3 (G.dmt.bis)
ADSL2+ Standards	ITU-T G.992.5
Antenna Type	Three 5GHz 5dBi detachable antennas (RP-SMA) Two 2.4GHz 3.5dBi internal antennas

WIRELESS FEATURES
Wireless Standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequency	2.4GHz and 5GHz
EIRP	<20dBm(EIRP)
Wireless Security	Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK Wireless MAC Filtering

SOFTWARE FEATURES
Quality of Service	WMM, Bandwidth Control (IP QoS)
Port Forwarding	Virtual server, Port Triggering, UPnP, DMZ, Manage Control
VPN Pass-Through	PPTP, L2TP, IPSec Pass-through
ATM/PPP Protocols	ATM Forum UNI3.1/4.0 PPP over ATM (RFC 2364) PPP over Ethernet (RFC2516) IPoA (RFC1577/2225) PVC - Up to 8 PVCs
Advanced Features	Parent Control Traffic Shaping(ATM QoS) UBR, CBR VBR-rt, VBR-nrt; Dynamic Host Configuration Protocol (DHCP), DHCP relay; Network Address Translation (NAT); PVC/Ethernet Port Grouping Static Routing, RIP v1/v2 (optional); DNS Relay, DDNS
Security	NAT Firewall, SPI Firewall, MAC / IP / URL Filtering
USB Sharing	Storage Sharing FTP Server Media Server Print Server
Management	Web Based Configuration(HTTP), Remote management, Telnet management, Command Line Interface, SSL for TR-069, SNMP V1/V2C, Web Based Firmware Upgrade, CWMP(TR-069), Diagnostic Tools
IGMP	IGMP snooping V1/V2/V3 IGMP Multicast
IPSec VPN	10 IPSec VPN Tunnels LAN-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm MD5, SHA1 Authentication Algorithm Manual, IKE Key Management Mode Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS)
IPv6	IPv6 and IPv4 dual stack Supported IPv6 Tunnels: DS-Lite, 6RD, 6 to 4 Supported IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6

OTHERS
Certification	CE, FCC, RoHS IPv6
Package Contents	TD-W8980 External Splitter RJ-11 Telephone Line RJ-45 Ethernet Cable Quick Installation Guide Resource CD Power Adapter
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux.
Environment	Operating Temperature: 0C~40C (32F~104F) Storage Temperature: -40C~70C (-40F~158F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
