All stock codes associated to this product
SEDG8PSWPPC13, SEDG-8PSW-PP-C13, 9352399003102

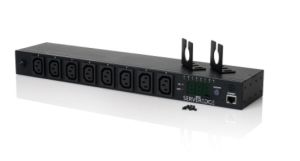

Serveredge 10A Switched Per Port Monitoring PDU 8 x 10A IEC C13 Socket,1 x3mtr 10A IEC C14 Plug with Circuit Breaker
Product Description
Serveredge SEDG-8PSW-PP-C13 is an 8 port Switched Power Distribution Unit (PDU) that powers and protects your equipment in your rack cabinets. It is equipped with an Intelligent True RMS current meter with Per Port Monitoring to indicate each outlet's individual power consumption. Optional probes are available to support temperature and humidity monitoring.
The integrated Web Server allows real time monitoring of each oulet's individual current consumption and real time remote on/off or reboot power switching control of each individual outlet using a standard web browser. It also offers an easy to setup and user-friendly software interface to remotely monitor power consumption of each outlet, each PDU or mulitple PDUs.
Features
- Can be mounted horizontally (1U) or vertically (0U)
- True RMS current meter indicates each outlet's individual power consumption
- Protocols supported: Http, Https, SNMP, DHCP & UDP
- Integrated web server manages real time current consumption of each individual outlet or total PDU
- Web interface allows real time remote on/off or reboot power switching control of each individual outlet
- User-defined delayed time for power on, power off or reboot
- User-defined group outlet control for scheduled control of grouped outlets
- PING Control: Auto reboots locked devices by pinging their IP address
- Audible & visual alarms - User definable threshold settings for warning and overload notifications
- Sends Email and Trap information when power consumption exceeds warning or overload thresholds
- Supports SNMP and provides MIB (Management Information Base) for the PDU to be monitored by NMS (Network Management Systems)
- Optional probes to support temperature and humidity monitoring
- 1 x IEC-C20 input
- 1 x Supplied 3 metre input cable with IEC-C19 to C14
- 8 x IEC-C13 outputs
- Rated at 10A at 240V AC
Networking
