All stock codes associated to this product
RN31400100AJS, RN31400-100AJS, 2398188, 606449093551

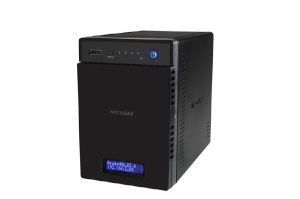

ReadyNAS 314 4-Bay, Diskless
RN31400
- 4-bay unified (NAS/SAN) storage (16TB max. capacity expandable to 36TB w/ optional EDA500)
- Consolidate, backup and share files across Windows, Mac, Linux, iOS and Android devices
- On-box data protection including XRAID automatic volume expansion, unlimited snapshots, encryption and real-time anti-virus
- Modern interface for easy cloud-based discovery and file management
- VM-ready with iSCSI support and vSphere/Hyper-V certification
- Embedded and add-on applications for iTunes, DLNA, and streaming of music and movies to local or internet-connected devices, including smartphones and tablets
Overview
ReadyNAS: Storage Made Easy
Application data, virtual images, client files, email the types of data central to running a successful business can seem endless. With ReadyNAS you finally have an advanced and easy-to use solution for centralizing, securing and controlling access to your digital assets. Way more than just simple unified (NAS and SAN) storage for your company, ReadyNAS allows you to do more than you ever thought you could afford by pairing the latest in performance with innovative efficiency technologies such as unlimited snapshots, thin provisioning and cloud-managed replication.
Every networked attached storage (NAS) device from NETGEAR runs on the revolutionary ReadyNAS operating system. This custom-built OS protects stored data not only with XRAID2 automatic expansion, but is the first desktop NAS for the SMB to feature the continuous data protection of unlimited snapshots along with real-time anti-virus and native encryption. Designed specifically for the unique needs of small business users, ReadyNAS devices utilize proprietary ReadyCLOUD technology for cloud-based discovery, provisioning and even ongoing management. In addition, these new devices are virtualization-ready with iSCSI support, thin provisioning capability and certification with VMware and Microsoft.
These days, your data is your world. With ReadyNAS, protecting and accessing that world has never been easier. ReadyNAS Storage Made EASY.
Key Business Features
Unlimited Snapshots: Unlimited data snapshot capability for on-box protection and flexible data recovery
|
iSCSI and Thin Provisioning: Powerful tools for a businesses taking advantage of virtual infrastructures
|
XRAID2 & Instant Provisioning: Easily expand capacity and feel confident knowing that data is always protected
|
Anti-virus & Encryption: Keep data protected from outside threats and safe from prying eyes
|
Cloud-managed Replication: Maintain data sets in multiple locations or ensure protection of data from remote or branch office locations
|
Modern GUI and ReadyCLOUD Management: Sleek, modern interface that puts the tools you need, where and when you need them
|
Key Business Solutions
File Server: Unified storage platform for sharing files between Windows, Mac and Linux-based computers
|
Disaster Recovery: Cloud-managed replication for maintaining multiple sets of data and performing easy restores in case of disaster
|
Backup: RAID redundancy with automatic expansion and unlimited data snapshots for point-in-time restore
|
Virtualization: Thin provisioning, iSCSI support and certified with VMware and Microsoft
|
Specifications:
ReadyNAS Desktop Model Comparison - 300/500 Series
| |
 |
 |
 |
|
| |
ReadyNAS 312 |
ReadyNAS 314 |
ReadyNAS 316 |
ReadyNAS 516 |
| CPU |
Intel Atom 2.1GHz dual core |
Intel Atom 2.1GHz dual core |
Intel Atom 2.1GHz dual core |
Intel Ivy Bridge Core i3-3220 3.3GHz dual core |
| Memory |
2GB |
2GB |
2GB |
4GB ECC |
| Drive Bays |
2 |
4 |
6 |
6 |
| Drive Types Supported |
SATA/SSD 2.5 or 3.5 |
SATA/SSD 2.5 or 3.5 |
SATA/SSD 2.5 or 3.5 |
SATA/SSD 2.5 or 3.5 |
| Hot Swappable Drives |
Yes |
Yes |
Yes |
Yes |
| Tool-less 3.5 Disk Installation |
Yes |
Yes |
Yes |
Yes |
| eSATA Expansion Ports |
1 |
2 (1 Shared USB/ eSATA port) |
2 |
3 |
Total Solution Capacity Internal /
with optional EDA500 unit(s) |
8TB / 28TB |
16TB / 56TB |
24TB / 64TB |
24TB / 84TB |
| Gigabit LAN Ports |
2 |
2 |
2 |
2 |
| USB Ports |
One (1) USB 2.0, Two (2) USB 3.0 |
One (1) USB 2.0, Two (2) USB 3.0 |
One (1) USB 2.0, Two (2) USB 3.0 |
One (1) USB 2.0, Two (2) USB 3.0 |
| Power Supply |
12V, 5A External 60W: input 100-240V AC, 50/60Hz |
12V, 7A External 90W; input 100-240V AC, 50-60Hz |
Internal 200W; input 100-240V AC, 50-60Hz |
Internal 200W; input 100-240V AC, 50-60Hz |
| BTU at Full Power Supply Utilization |
51W |
69W |
111W |
189W |
| Power Consumption: Operation |
35W |
49W |
55W |
88W |
| Power Consumption (Wake on LAN) |
627mW |
843mW |
804mW |
956mW |
| Power Consumption: Power Off |
266mW |
472mW |
338mW |
370mW |
| Chassis Warranty* |
5 years |
5 years |
5 years |
5 years |
| 2-Line LCD Display |
No |
Yes |
Yes |
Yes |
| Touch Screen Navigation |
No |
No |
Yes |
Yes |
| Fan (mm) |
92 |
92 |
120 |
120 |
| Dimensions DxWxH (mm) |
220 x 101 x 142 |
223 x 134 x 205 |
287.5 x 192 x 259 |
287.5 x 192 x 259 |
| Weight (kg) |
2.22 |
3.97 |
7.53 |
7.97 |
| ProSupport Service Packs Available |
300 Series |
500 Series |
| OnCall 24x7 |
1 year: PMB0312
3-year: PMB0332
5-year: PMB0352 |
1 year: PMB0313
3-year: PMB0333
5-year: PMB0353 |
| XpressHW Replacement |
3-year: PRR0332
5-year: PRR0352 |
3-year: PRR0333
5-year: PRR0353 |
