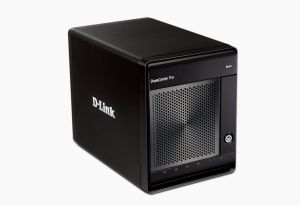

DNS-1100-04



Small businesses face an ever increasing need for storage consolidation, document sharing and data backup. D-Links DNS-1100-04 ShareCenter Pro 1100 Network Storage device addresses these requirements, and provides a multitude of advanced options for managing and securing important files.

The DNS-1100-04 integrates a NAS file server which takes full advantage of the accelerated performance provided by iSCSI. Files can be shared across the network or over the Internet via FTP or an intuitive web file manager, to users with the appropriate credentials.

Small Businesses will appreciate the DNS-1100-04 NAS file server which takes advantage of the accelerated performance of the dual-core CPU. Providing up to 7200 MIPS of computing power and 512MB of cache memory, the DNS-1100-04 is able to provide the storage throughput required for your business and its future growth. Virtual Disk Drive (VDD) expansion allows the ShareCenter Pro 1100 to attach up to eight external iSCSI storage targets found on the local network, and use them as virtual disks for additional storage volumes.

A Variety of Backup Options

The DNS-1100-04 offers several backup options which allow administrators and users to control how, when, and where their data is stored. Remote backup will keep a copy of your files on a remote NAS over the Internet for extra data protection, and volume snapshots can backup a whole volume in a few minutes in contrast with traditional backup schemes that can take hours.

iSCSI for IP Networks

iSCSI offers exceptionally fast access performance thanks to block-level data transfer. iSCSI targets appear as a local drive on a client PC. Operations such as configuration, provisioning, and backup can be handled by the administrator in the same way they would be for directly attached storage. By utilising existing Ethernet technology, the cost associated with separate host bus adapters and the per-Gigabyte cost for storage can be significantly reduced.

Note: Maximum iSCSI LUN size is 2,043GB

Advanced Security

Account management features include the ability to manage users/groups and Read/Write permissions. Create users, groups, and iSCSI targets with password authentication. Additionally, VLAN tag support combined with AES encryption keeps files secure. iSCSI implements a Challenge Handshake Authentication Protocol (CHAP) to guarantee secure access to the storage system.

Share Printers and USB Storage

USB connectivity provides the option to establish a printer server, monitor a UPS, or connect USB devices such as hard drives and flash storage.

RAID for Efficiency and Redundancy

The DNS-1100-04 features 4 Serial ATA (SATA) disk drive bays supporting RAID levels 0, 1, 10, 5 or JBOD configurations. IT administrators can quickly deploy a network storage solution using inexpensive SATA disk drives, and can add more drives depending on storage needs. Additionally, S.M.A.R.T. disk diagnostics helps to ensure hardware integrity and warns of possible failures before they occur.

Green Features Save Energy

The DNS-1100-04 Sharecenter^TM Pro 1100 is part of D-Link Green, D-Links programme for providing eco-friendly alternatives without compromising performance: if the hard drives are not used in a configurable period of time, or data is not being transmitted, the Sharecenter^TM Pro1100 will enter stand-by mode to save power. The silent fan will adapt its speed depending on the hard drives temperature. Additionally, the scheduled on/off function allows the device to be automatically switched off when it is not in use.



• Form Factor
  • 4-Bay Desktop
• Maximum Storage Capacity
  • 12TB Max Storage Capacity
• Power Supply
  • Single Power Supply
• RAM
  • 512MB RAM
• RAID Support
  • 0, 1, 5, 6, JBOD, Standard mode
• Snapshot Support
  • 10 snapshot jobs / 20 snapshots per job
• Virtual Disk Drive (VDD) Expansion

• USB Ports
  • 2
• Network Connectivity
  • Dual GbE ports
• Encrypted Volumes

• iSCSI

• CHAP Authentication

• CIFS/SMB/Samba

• NFS

• AFP

• FTP

• Link Aggregation Support

• Supports Jumbo Frames

• Active Directory Services

• Thin Provisioning

• Amazon S3

• Local Backup

• Remote Backup

• Warranty
• 5-Year Warranty

• IEEE 802.3
• IEEE 802.3ab
• IEEE 802.3u
• TCP/IP
• CIFS/SMB
• NFS
• iSCSI
• DDNS
• NTP
• FTP / FXP w/ TLS/SSL
• HTTP/HTTPS
• Jumbo Frames
• SNMP
• SMTP

• Four Hot-Swappable 3.5-inch SATA drives - Supports up to 12TB with 3TB drives
• Note: Maximum iSCSI LUN size is 2,043GB

• 2 x 10/100/1000 Gigabit Ethernet Ports
• 2 x USB 2.0 Ports for UPS, printer and external storage

• Dual Core CPU

• 512MB

• 128 x 32 OLED display screen

• Multiple Hard Drive Configurations
• RAID 0/1/5/6/JBOD/Standard Mode
SMART Disk Diagnostics

• Easy Search Utility
• Real-Time Clock (RTC) support
• E-Mail Alerts
• Power Management
• RAID Migration
• Online Capacity Expansion
• USB hard disk
• User/folder quota management

• Windows
• Mac
• Linux
• Unix

• Internet Explorer 7 or higher
• Firefox 3.5 or higher
• Google Chrome

• Max. User Account: 4096 (Samba) / 10000 (ADS)
• Max. Groups: 512 (Samba) / 10000 (ADS)
• Max. Shared Folders: 1000
• Max. Concurrent Connections: 256

• Up to 10 snapshot jobs and 20 snapshots per job

• Samba: Unicode
• FTP Client: Unicode, Croatian, Cyrillic (Kyrgyz Republic), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Simplified Chinese, Slovenian, Spanish, Swedish, Traditional Chinese, Turkish

• External power adapter
• With PFC (power factor correction) function
• 220 watts

• 100-240 VAC (auto-switching)

• 50-60 Hz

• Normal mode: 55 Watts
• Sleep mode: 25.2 Watts

• 41 to 95F (5 to 35C)

• 5% to 90% non-condensing

• 6.61 lbs (3.00 kg)

• 8.07 x 6.38 x 10.13 inches (205 x 162 x 257 mm)

• FCC, CE

• 5-Year Limited

• Available (See ordering information below)
