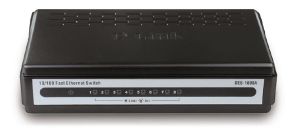

DES-1008A
8-Port 10/100 Switch
Details:
Auto-sensing 10/100 ports
The DES-1008A uses auto-sensing 10/100 Mbps ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet devices to create an integrated network. These ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX, as well as between full and half-duplex, allowing you to get the maximum speed possible for each device connected to your network.
Auto MDI/MDIX CrossOver
All ports support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables.
Flow Control for Secure Transmission
802.3x flow control on each port minimizes dropped packets when the port's receiving buffer is full. This gives you a more reliable connection for all of your connected devices.
SILENT OPERATION
Fanless design provides noise-free operation
PLUG AND PLAY
Auto MDI/MDIX simplifies cable connections
COMPACT DESIGN
Stylish, compact design can be placed anywhere
TECHNICAL SPECIFICATIONS
Key Features
- Inexpensive Fast Ethernet solution for Home/SOHO
- 8 10/100 Mbps Fast Ethernet ports
- Auto MDI/MDIX crossover for all ports
- Store-and-forward switching scheme
- Full/half-duplex for Ethernet/Fast Ethernet speeds
- IEEE 802.3x Flow Control
- Plug-and-play installation
- RoHS compliant
SWITCHING FABRIC
- 1.6 Gbps switching fabric
Standards
- IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
- IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
- ANSI/IEEE 802.3 NWay auto-negotiation
- IEEE 802.3x flow control
Protocol
Data Transfer Rates
Ethernet:
- 10 Mbps (half duplex)
- 20 Mbps (full duplex)
Fast Ethernet:
- 100 Mbps (half duplex)
- 200 Mbps (full duplex)
Topology
Media Interface Exchange
- Auto MDI/MDIX adjustment for all ports
Network Cables
10BASE-T:
- UTP CAT 3/4/5/5e (100 m max.)
- EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX
- UTP CAT 5/5e (100 m max.)
- EIA/TIA-568 100-ohm STP (100 m max.)
LED Indicators
Per port:
Per device:
Transmission Method
MAC Address Table
MAC Address Learning
Packet Filtering/Forwarding Rates
- Ethernet: 14,880 pps per port
- Fast Ethernet: 148,800 pps per port
RAM Buffer
DC Input
- External 5V/1A power adapter
Power Consumption
Power On (Standby):
- DC input: 0.3 watts
- AC input: 0.5 watts
Maximum:
- DC input: 1.6 watts
- AC input: 2.5 watts
Heat Dissipation
- Power On (Standby): AC input: 1.706 BTU/h
- Maximum: AC input: 8.53 BTU/h
- Operating Temperature: 0 to 40 °C (32 to 104 °F)
Operating Temperature
- 0 to 40 °C (32 to 104 °F)
STORAGE TEMPERATURE
- -10 to 70 °C (14 to 158 °F)
OPERATING HUMIDITY
- 10% to 90% RH non-condensing
Storage Humidity
- 5% to 90% RH non-condensing
- Device Dimensions (W x D x H)
- 128 x 68.5 x 25.4 mm (5.0 x 2.7 x 1.0 inches)
Certifications
- FCC Class B
- ICES-003 Class B
- CE Class B
- C-Tick Class B
- cUL
- LV D
