All stock codes associated to this product
DSLN12E, DSL-N12E, 2985903, II16818, 4716659624202

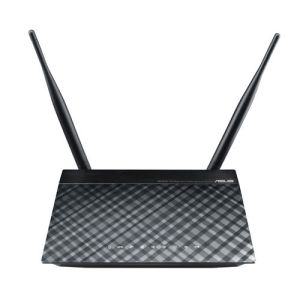

DSL-N12E
Wireless-N300 ADSL Modem Router
- 11n Wireless ADSL modem Router.
- EZ WPS connection with physical WPS push button.
- Eco-friendly, up to 72% power saving.
Overview
Back I/O
Save the planet and your pocket
Compared with generic Wireless-N routers, ASUS ECO-WiFi CPU reduces up to 72% of energy consumption and utility cost.
The result given was of an internal testing methods comparing typical router, with standby, normal and heavy traffic. Testing criteria: [Standby mode] Only WAN port is connected. [Normal traffic] 1 wired connected PC and 1 wirelessly connected laptop for P2P download. [Heavy traffic] 4 wired connected PCs and 2 wirelessly connected laptops for P2P download. Utility cost is calculated based on 2011 US household avg. electricity price, all taxes included.
EZ WPS Connection
EZ WPS Enables you to set up a secure wireless network in 2 steps
Press the WPS button on the wireless adapter.
The WPS Wizard pops up and starts searching for WPS-supported routers.
Wi-Fi on/off
Simply press the WPS/Wi-Fi button on your ASUS router to instantly turn Wi-Fi on or off and easily save energy with no long setup or menus.
Feature only available on products sold in EU markets.
Press and hold the WPS button on your ASUS router for at least four seconds to sync the secure Wi-Fi connection with the new device, and setup is done
Specifications:
- Network Standard
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, IPv4
- Product Segment
N300 complete networking; 300Mbps
- Wi-Fi Data Rate
802.11b : 1, 2, 5.5, 11Mbps
802.11g : 6,9,12,18,24,36,48,54Mbps
802.11n : up to 300Mbps
- xDSL Data Rate
G.992.1 (T1.413)
G.992.2 (G.dmt), G.lite
G.992.3 (G.bis/ADS L2)
G.992.5 (ADSL2+)
Annex L (reach extended ADSL2)
- Antenna
Fixed 2 or 5 dBi antenna x 2
*Antenna signal power may vary by region due local regulations and requirements
- LED Indicator
Power, ADSL, Internet, WLAN, LAN x 4
- Button
WPS Button, Reset Button, Power Button
- Ports
1 x RJ11 for ADSL
4 x RJ45 for 10/100 BaseT for LAN
- Operating Frequency
2.4GHz
- Operation Channel
11 for N. America
13 Europe (ETSI)
- Security
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, Radius with 802.1x, WPS support
- Management
Web-based GUI configuration
Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI
Configuration backup and restore
Diagnostics
Log & Trace function
- Power Adapter
AC Input : 100 ~240 V(50~60HZ)
DC Output : 12 V/0.8 A
- Certificates
CE
- Dimensions
168 x 124 x 30 mm (WxDxH)
- Weight
300 g (Device Only)
- Environmental
Operating Temperature: -10 C to 50 C (14 F to 122 F)
Storage Temperature: -40 to 60 C (-40 F to 140 F)
Operating Humidity: 5 % to 95 % (Non-condensing)
Storage Humidity: 5 % to 95 % (Non-condensing)
- OS Support
Windows 8 , 32bit/64bit
Windows 7 , 32bit/64bit
Windows Vista , 32bit/64bit
Windows XP , 32bit/64bit
Mac OS X
Linux
- Package Content
DSL-N12E Wireless ADSL modem Router
Power adapter
Support CD (user manual, QSG)
RJ45 cable
RJ11 cable
Quick Start Guide
Warranty card
