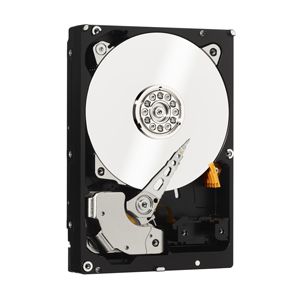

Choose the storage foundation specifically designed for SMB to high-end NAS and large-scale datacenter replication environments running 24x7x365.
StableTrac.
The motor shaft is secured at both ends to reduce system-induced vibration and stabilize platters for accurate tracking during read and write operations.
Multi-axis shock sensor.
Automatically detects the subtlest shock events and compensates to protect the data.
RAID-specific, time-limited error recovery (TLER).
Prevents drive fallout caused by the extended hard drive error-recovery processes common to desktop drives.
NoTouch ramp load technology.
The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.
Maximum capacity for hyperscale environments.
Build a massive data footprint with capacities up to 4 TB - 144 TB per square foot.
Thermal extended burn-in test.
Each drive is put through extended burn-in testing with thermal cycling to ensure reliable operation.
Dynamic fly height technology.
Each read-write head’s fly height is adjusted in real time for optimum reliability.
Ideal for:
The Se is best suited for bulk cloud storage, replicated environments, content delivery networks (CDNs), SMB network attached storage (NAS), backup and archiving.
Specifications:
| Product Specifications |
|
 |
Interface |
SATA 6 Gb/s |
|
| Performance Specifications |
|
|
Rotational Speed |
7,200 RPM (nominal) |
|
Buffer Size |
64 MB |
|
Load/unload Cycles |
600,000 minimum |
|
| Transfer Rates |
|
Buffer To Host (Serial ATA) |
6 Gb/s (Max) |
|
| Physical Specifications |
|
|
Capacity |
3 TB |
|
User Sectors Per Drive |
5,860,533,168 |
|
| Performance Specifications |
|
| Target Performance |
|
MTBF |
800,000 hours |
|
| Physical Dimensions |
|
| English |
|
Height |
1.028 Inches |
|
Depth |
5.787 Inches |
|
Width |
4.00 Inches |
|
Weight |
1.66 Pounds |
|
| Metric |
|
Height |
26.1 mm |
|
Depth |
147 mm |
|
Width |
101.6 mm |
|
Weight |
0.75 kg |
|
| Power Management |
|
|
Read (Peak Watts) |
9.50 Watts |
|
Write (Peak Watts) |
9.10 Watts |
|
| Environmental Specifications |
|
| Shock |
|
Operating Shock (Read) |
65G, 2 ms |
|
Non-operating Shock |
300G, 2 ms |
|
| Acoustics |
|
Idle Mode |
31 dBA (average) |
|
Seek Mode 0 |
34 dBA (average) |
|
| Temperature (English) |
|
Operating |
41 F to 131 F |
|
Non-operating |
-40 F to 158 F |
|
| Temperature (Metric) |
|
Operating |
5 C to 55 C |
|
Non-operating |
-40 C to 70 C |
|
| Electrical Specifications |
|
| Current Requirements |
|
Power Dissipation |
|
Read/Write |
9.50 Watts |
|
Idle |
8.10 Watts |
|
| Compatibility |
|
| Operating System |
|
Compatibility |
Windows/Mac |
