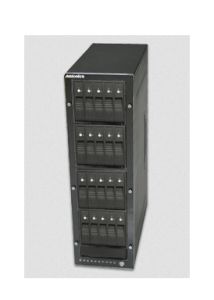

Addonics RT134SDMS RAID Tower XIII - Black
  • 20x 2.5/3.5" SATA HDD Bay, External Mini-SAS Port (SFF-8088), RAID, 2x 120mm Fans, Sturdy Steel Metal Chassis And Stylish Acrylic Front Panel

IMG 1 of 1
No Longer Available
Part Number:
223869
(?) Brand:
Addonics Web Site
Manuf No:
RT134SDMS
Shipping Weight:
40 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
RT134SDMS
RAID Tower XIII (RT134SDMS)

Overview

All that's needed is to add the hard drive of your choice to create your own powerful external RAID storage.

The RAID TowerXIIIfeaturesthirteen 5.25" drive bays in asturdy sheet metalchassis with stylish acrylic front bezel. Up totwenty3.5" hard drives can be installed into the RAID Tower XIII.Each set of fivedrives inside the RAID Towercan be configured as a RAIDgroup or as five independent drives. The four RAID groups orall twenty drivescan be connected to the computer via four high speed eSATA, fourUSB 3.0 / 2.0 or a single mini SAS connection.The RAID Tower XIII comes equipped with removable drive systems for easy drive additiona or removal. On models thatare equipped with USB 3.0connection,each RAID groupcanbe shared over alocal area network by attaching toan optional Addonics NAS adapter.Each model comes with everything needed for connecting to the computer.Simply add your own hard drives and configure the RAID via either the onboard dip switches or the included Windows software utility and your storage tower is ready to do the work.

About This Model:

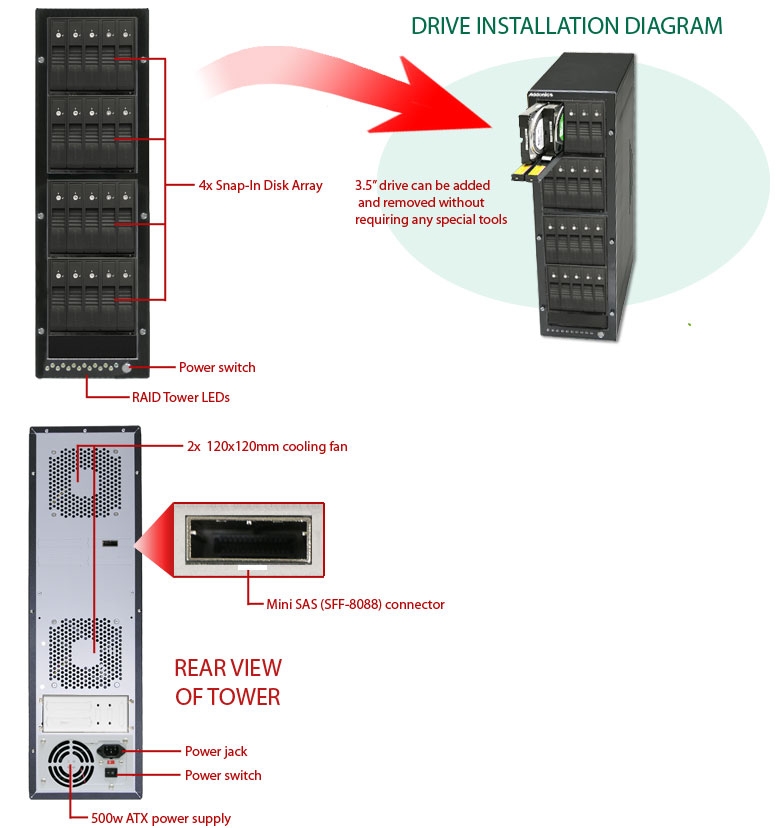

TheRT134SDMS supportsconnecting up to twenty 3.5" SATA drives to system viaa single external mini SAS connection. Integrated with fourSnap-In Disk Array back plane, hard driveis added or removedlike tape cartridges from each bay. The created RAID volume can be attached tomini SASport (SFF-8088)on any system. Greatfor a variety of storage applications - external RAID storage, Video storage, Server storage or for adding large number hard drivesto any system.


Features

  • Connect to system viaa single mini SAS ports, SFF-8088 (connecting cable included)
  • Drives are added or removed like tape cartridge from each drive bay with no special tool
  • Install up totwenty 3.5" SATA hard drives of any capacity (drives not included)
  • 5 drives are connected to each HPM-XA which connects to one of the four SATA ports on theexternal mini SASbridge mounted on the back panel
  • Each set of 5 drives can be configured as RAID0 (Striping), RAID1 (Mirroring), RAID3, RAID5 (Parity), RAID10 (Mirrored Striped), JBOD (Concatenation), Clone Mode (N-Way Mirror) using built-in hardware RAID or set as five individual drives with no RAID
  • OS independent, can be used on any system when all drives are configured as a single RAID volume
  • Individual drive configuration requires connecting to Port Multiplier compatible controller
  • For Windows operating systems, configure RAID using RAID diagnostic software utility
  • For Linux, Mac or other operating systems, configure RAID using onboard dip switches
  • Windows utility - RAID monitoring and email notification

Specifications:
  • OS independent
  • one externalmini SAS connector (SFF-8088)on back panel
  • Two 120 x 120 mmball bearing high CFM low noise cooling fans
  • Sturdy steel metal chassis and stylish acrylic front panel
  • 500 watts 110/240V AC power supply
  • LED indicators for each storage device, host connection and power status
  • Dimension (W x L x H): 7.5 x 15.75 x 24.75 in.
  • Weight: ~ 43 lb ( 19.5kg)
  • Operating temperature and humidity: 0 - 55 C, 5 - 90% RH
  • Storage temperature and humidity: -10 - 65 C, 0 - 95% RH (non-condensing)

Comparison Chart and shop online

Model
RT134SDEU3
RT134SDMS
RT134DAHX
RT134DAMS
RT134SDES

Maximum number of drives installable
3.5" SATA
(2.5 SATA hard drive can be installed using 2.5" -3.5" drive convert, model AE25SN35SA)		 20 20 20 20 20
Connection to System
Viaexternal Mini SAS port (SFF-8088) NA Yes NA Yes NA
Via sATA port Yes NA Yes NA Yes
Via USB 2.0 port Yes NA  Yes (with optional
USB 3.0 - eSATA adapter)		 NA NA
Via USB 3.0 port Yes NA Yes (with optional
USB 3.0 - eSATA adapter)		 NA NA
Supported type of RAID
RAID 1, RAID 0 Yes Yes Yes Yes depends on the RAID uitlity from the contorlller or the OS
RAID 10 Yes Yes Yes Yes
BIG (SPAN) Yes Yes Yes Yes
RAID 5 Yes Yes Yes Yes
RAID 5+S Yes Yes Yes Yes
Clone Mode Yes Yes Yes Yes
(individual drive) Yes (when connected to USB port or PM compatible ontroller) Yes (when connected to PM compatible controller) Yes (when connected to USB port or PM compatible ontroller) Yes (when connected to PM compatible controller) Yes (when connected to PM compatible controller)
RAID Setup
via Windows software or onboard dip switches
via Windows software or onboard dip switches
via Windows software or onboard dip switches
via Windows software or onboard dip switches
depends on the RAID uitlity from the contorlller or the OS
Integrated Port Multiplier AD5HPMREU AD5HPMSXA AD5HPMRXA-E AD5HPMSXA AD5SARPM-E
RAID setup software
utility support		 available for Windows OS available for Windows OS available for Windows OS available for Windows OS NA
RAID Diagnostics via software or LED lights via software or LED lights via software or LED lights via software or LED lights LED lights
Drive installation
direct drive
insertion		 Yes Yes N/A N/A Yes
via removable
drive drawer		 N/A N/A Yes Yes N/A
Hot Swappable
Drives		 Yes Yes Yes Yes Yes
Supported OS OS Independent OS Independent OS Independent OS Independent Depends on the attached eSATAport
