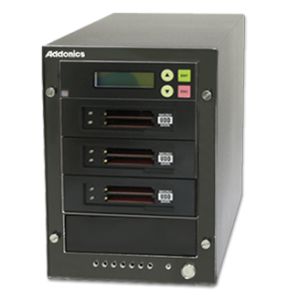

1:5 mSATA / micro SATA SSD Duplicator (MSDU5-T)
The Addonics mSATA and micro SATA SDD Duplicator is designed for making identical mulitple copies of micro SATA HDD/SSD or mSATA SSD from one media . You can mix and match these two types of SSDs into the duplicator, thus making it a handy tool for transferring the content between these two different types of media. The equipment can also be used as a CF or CFast card duplicator by using the optional micro SATA - CF and micro SATA - CFast adapters.
The duplicator works stand alone without any computer. It is easy to operate. There is no complicated software to run. Simply insert the source media into the source slot and the target media with equal or larger capacity into the destination slots, then push the copy button to start the copying process.
By using the following optional adapter, this 1:5 duplicator can also be turned into a CFast or CF card duplictor
micro SATA - CF adapter
(model: ADMSCF) |
micro SATA - CFast adapter
(model: ADMSCFAST) |
 |
 |
Supported flash media copying options
| Source |
Destination |
MSDU5 |
MDDU11 |
| mSATA SSD card |
mSATA SSD card |
Yes, up to 5 targets |
Yes, up to 11 targets |
| mSATA SSD card |
Micro SATA HDD/SSD |
Yes, up to 5 targets |
Yes, up to 11 targets |
| Micro SATA HDD/SSD |
Micro SATA HDD/SSD |
Yes, up to 5 targets |
Yes, up to 11 targets |
| Micro SATA HDD/SSD |
mSATA SSD card |
Yes, up to 5 targets |
Yes, up to 11 targets |
| mSATA SSD card |
CFast memory card |
optional |
optional |
| mSATA SSD card |
CF memory card |
optional |
optional |
| Micro SATA HDD/SSD |
CF memory card |
optional |
optional |
| Micro SATA HDD/SSD |
CFast memory card |
optional |
optional |
| CF memory card |
Micro SATA HDD/SSD |
optional |
optional |
| CF memory card |
CF memory card |
optional |
optional |
| CF memory card |
CFast memory card |
optional |
optional |
| CF memory card |
mSATA SSD card |
optional |
optional |
| CFast memory card |
CF memory card |
optional |
optional |
| CFast memory card |
CFast memory card |
optional |
optional |
| CFast memory card |
mSATA SSD card |
optional |
optional |
| CFast memory card |
Micro SATA HDD/SSD |
optional |
optional |
- Duplicate up to five (5) copies micro SATA HDD/SSD or mSATA SSD
- The supported media can be mixed in the target slots - great for transferring content from one type of media to different type of media
- Media slot is designed for direct loading of Micro SATA hard drive or SSD
- mSATA SSD into the media slot viamicro SATA - mSATA adapter(model: ADMS18SA). Twelve adapters are included
- Copy CFast or CF media with optional micro SATA adapters (ADCFASTMSorADMSCF)
- Completely standalone operation with no computer or software required
- Maximum copying speed up to 90 MB/sec. Actual speed depends on the performance of the media
- OS independent
- LCM control module provides a rich set of robust advanced configuration options(clickFull LCD console feature listin this duplicator)
- Green LED for both source and destination slots to indicate media access ( Supported only on media with drive access signal)
Componentsfor the main unit
Storage Tower (STMPC-B), 1:5 HDD Duplicator subsystem (HDU5SAS), 3 units ofDual int. MicroSATA UDD (MS2UDDSA)
Bundled accessories: six (6) units of mSATA - micro SATA adapter (ADMS18SA),power cord, user guide
Specifications:
- Writing mode : Sector to Sector
- Support up to 90 MB/sec transferring rate (actual transfer rate depends on the speed of the media in the source and the destination slot)
- Sturdy metal frame construction
- Six (6) media slots - one (1) for source media and five (5) for destination media
- Media slot supports direct loading of micro SATA hard drive or SSD
- Following adapters (two each are included with the duplicator) are required to load the other media:
- mSATA SSD: mSATA - micro SATA adapter, model ADMS18SA(six units are included)
- CFast card: CFast - micro SATA adapter, model ADCFASTMS(optional)
- CF card or Micro Drive: CF - micro SATA adapter, model ADMSCF(optional)
- LCD display with functional control panel
- Well ventilated side panel for efficient air flow.
- Low noise high CFM ball bearing cooling fan
- LEDs for drive access and power
- Integrated 220W 110/240 auto-sense power supply
- Compact size (W x D x H): ~8.19 x 12.94 x 8 inch (208 x 329 x 203 mm)
- Weight: ~ 9.45 lb (4.29 Kg)
- Operating temperature and humidity: 0 - 50 degree C, 15% - 90% RH
- Storage temperature and humidity: -20 - 60 degree C, 0% - 95% RH non-condensing
- 1 year warranty
