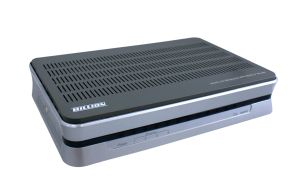

BiPAC 7800X
3G/4G LTE VPN ADSL2+/Fibre Broadband Router
The BiPAC 7800X is a fibre-ready triple-WAN ADSL2+ modem router, an all-in-one advanced device including Gigabit Ethernet, 3G/4G LTE, and NAS (Network Attached Storage) in one unit. As well as being IPv6-capable, the BiPAC 7800X ADSL2+ router supports superfast fibre connections via dual-WAN connectivity through a Gigabit Ethernet WAN port. Also, it also has a USB port, allowing the device to act as a print server as well as a NAS (Network Attached Storage) device with DLNA (Digital Living Network Alliance) and FTP (File Transfer Protocol) access. Moreover, the USB port can host a 3G/4G LTE modem connecting to the 3G/4G LTE network for Internet access. With an array of advanced features, the Billion BiPAC 7800X delivers a future-proof solution for ADSL2+ connections, superfast FTTC and ultra-speed FTTH (Fibre-To-The-Home) network deployment and services.
Key Features
- Triple-WAN ports for 3G/4G LTE, ADSL2+, Gigabit Ethernet WAN (EWAN) for broadband connectivity
- Gigabit WAN and LAN
- Fibre (FTTC/FTTP/FTTH) ready with high WAN throughput
- 16 IPSec VPN tunnels
- Embedded IPSec and PPTP VPN endpoint /server with powerful encryption
- IPv6 ready (IPv4/IPv6 dual stacks)
- USB port for print server, NAS, DLNA media server, and 3G/4G LTE USB modem
- SNR adjustments to achieve highest sync speeds
- Monitoring of individual LAN ports
- QoS for traffic prioritization and bandwidth management
- Broadcom chipset for better stability
- Supports IPTV applications *1
- NBN (National Broadband Network) ready*2
- Supports port-based Virtual LAN (VLAN)
- Available Syslog
- Dynamic Domain Name System (DDNS)
- Ideal for SOHO and office users
Benefits
Secure VPN Connections
The BiPAC 7800X supports comprehensive and robust IPSec VPN (Virtual Private Network) protocols for business users to establish private encrypted tunnels over the public Internet to secure data transmission between headquarters and branch offices. With a built-in DES/3DES VPN accelerator, the router enhances IPSec VPN performance significantly.
3G/4G Mobility and Always-On Connectivity
With the BiPAC 7800X you can connect a 3G/4G LTE USB modem to its built-in USB port, allowing you to watch movies, download music or access e-mail no matter where you may be. You can even share your Internet connection with others, when away on business, at a show, or wherever there is mobile signal but no fixed line access. The auto fail-over feature ensures maximum connectivity and minimum interruption by quickly and smoothly connecting to a 3G/4G LTE network in the event that your ADSL/fibre/cable line fails. The BiPAC 7800X will then automatically reconnect to the ADSL/fibre/cable connection when it's restored, reducing connection costs. These features are perfect for office situations where a constant and uninterrupted connection is critical.
Experience Gigabit
The BiPAC 7800X has four Gigabit LAN ports and the fourth port can be configured as a WAN port if required. This EWAN offers another broadband connectivity option for connecting to a cable, VDSL, fibre or second ADSL modem. The BiPAC 7800X again offers users convenience and optimal network performance with data rates reaching up to 1Gbps.
Pathway to the Future
The BiPAC 7800X fully supports IPv6 (Internet Protocol Version 6), launched as the current IPv4 range is filling up, and IPv6 is gradually becoming the indispensable addressing system for savvy cloud computing users. Dual stack means the router is capable of running IPv4 and IPv6 in parallel during the transition period. With Billion IPv6 enabled devices, three major transition mechanisms such as Dual-Stack, Dual-Stack Lite, and 6RD (IPv6 rapid deployment) are supported to be adapted easily into service provider's IPv4/IPv6 network.
Specifications:
ADSL Compliance
Compliant with ADSL standard
- Full-rate ANSI T1.413 issue 2
- G.dmt (ITU G.992.1)
- G.lite (ITU G.992.2)
- G.hs (ITU G.994.1)
- ADSL over ISDN/U-R2
Compliant with ADSL2 standard
- G.dmt.bis (ITU G.992.3)
- ADSL2 Annex M (ITU G.992.3 Annex M)
Compliant with ADSL2+ standard
- G.dmt.bis plus (ITU G.992.5)
- ADSL2+ Annex M (ITU G.992.5 Annex M)
Network Protocols and Features
- IPv4 or IPv4/IPv6 dual stacks
- NAT, static (v4/v6) routing and RIP-1/2
- IPv6 stateless/stateful address auto-configuration
- IPv6 router advertisement
- IPv6 over PPP
- DHCPv6
- IP tunnel IPv6 in IPv4 (6RD)
- IP tunnel IPv4 in IPv6 (DS-Lite)
- Universal Plug and Play (UPnP) compliant
- Dynamic Domain Name System (DDNS)
- Virtual server and DMZ
- SNTP, DNS relay, IGMP proxy and IGMP snooping for video service
- MLD proxy and MLD snooping for video service
- Management based-on IP protocol, port number and address
- Supports port-based Virtual LAN (VLAN)
Firewall
- Built-in NAT firewall
- Stateful Packet Inspection (SPI)
- DoS attack prevention
- Packet filtering (v4/v6) - port, source IP address, destination IP address, MAC address
- URL content filtering (v4/v6) - string or domain name detection in URL string
Virtual Private Network (VPN)
- 16 IPSec VPN tunnels
- IKE key management
- DES, 3DES and AES encryption for IPSec
- PAP/CHAP/MS-CHAPv2 authentication for PPTP
- IPSec pass-through
- GRE (Generic Routing Encapsulation) tunnel
Quality of Service Control
- Supports the DiffServ approach
- Traffic prioritization and bandwidth management based-on IPv4/IPv6 protocol, port number and address
ATM and PPP Protocols
- ATM Adaptation Layer Type 5 (AAL5)
- Multiple protocol over AAL5 (RFC 2684, formerly RFC 1483)
- Bridged or routed Ethernet encapsulation
- VC and LLC based multiplexing
- PPP over Ethernet (PPPoE)
- PPP over ATM (RFC 2364)
- Classical IP over ATM (RFC 1577)
- MAC Encapsulated Routing (RFC 1483 MER)
- OAM F4/F5
IPTV Application*2
- IGMP snooping and IGMP proxy
- MLD snooping and MLD proxy
- Virtual LAN (VLAN)
- Quality of Service (QoS)
USB Application Server
- 3G/4G LTE USB modem
- Storage/NAS: FTP server, samba server, and DLNA media server
- Print server
Operating Environment
- Operating temperature: 0C ~ 40C
- Storage temperature: -20C ~ 70C
- Humidity: 20% ~ 95% non-condensing
Management
- Easy Sign-On (EZSO)
- Web-based GUI for remote and local management (IPv4/IPv6)
- Firmware upgrade and configuration data upload and download via web-based GUI
- Embedded Telnet server for remote and local management
- SNMP v1, v2, MIB-I and MIB-II support
- Supports DHCP server/client/relay
- TR-069 *1 supports remote management
- Available syslog
- Mail alert for WAN IP changed
- Auto failover and fallback
- Push service
Hardware Specifications
Physical Interface
- DSL: ADSL port
- USB 2.0 supports storage service, print server, and 3G/4G LTE USB modem
- Ethernet: 4-port 10/100/1000M auto-crossover (MDI/MDI-X) switch
- EWAN: Ethernet port #4 can be configured as a WAN interface for broadband connectivity
- Factory default reset button
- Power jack
- Power switch
Physical Specifications
- Dimensions: 9.04" x 6.10" x 1.69" (229.5 mm x 155 mm x 43 mm)
Power Requirements
Models & Standards Supported
- BiPAC 7800XA:
Supports Annex A & Annex M (Annex A and Annex M: ADSL over POTS)
- BiPAC 7800XU:
Supports Annex B & U-R2 (Annex B and U-R2: ADSL over ISDN)
