TLSG1008PE, TL-SG1008PE, NWTLSG1008PE, NWTL-SG1008PE, 6935364021351

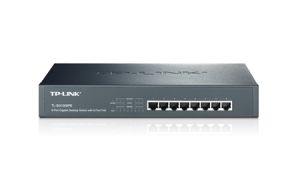

The TL-SG1008PE is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 124W, up to 30W per port, TL-SG1008PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
How This Product Works
All 8 ports of TL-SG1008PE support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones.
Overload Arrangement
TL-SG1008PE has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices power consumption is greater than or equal to 124W, a priority will be arranged among the 8 PoE+ ports, at which point the system will cut off the power of the lowest-priority port.
Port Priority Function
*Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port F > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power of Port 7 in response to the power exceeding the 120W limit., This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied to Port 7 as it has the lowest designated priority among the ports in use.
Easy To Use
TL-SG1008PE is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-LINK TL-SG1008PE 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.
Features
- Equipped with 8 PoE+ ports
- Supports PoE+ standard with total power budget of 124W and up to 30W per port
- Supports PoE+ IEEE 802.3af/at compliant devices
- Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
- 8K entry MAC address table of the TL-SG1008PE with auto-learning and auto-aging
- LED indicators to monitoring power, link, activity and speed
- Internal power supply
Specifications:
| HARDWARE FEATURES |
| Interface |
8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX |
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m) |
| PoE Ports (RJ45) |
Standard: 802.3at/af compliant
PoE Ports: 8 Ports
Power Supply: 124W |
| Backbound Bandwidth |
16Gbps |
| Mac Address Table |
8K |
| Fan Quantity |
1 |
| Dimensions ( W x D x H ) |
11.6*7.1*1.7 in. (294*180*44 mm) |
| Power Supply |
100-240VAC, 50/60Hz |
| SOFTWARE FEATURES |
| Advanced Features |
Compatible With IEEE 802.3af/at Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode |
| Transfer Method |
Store-And-Forward |
| OTHERS |
| Certification |
FCC, CE, RoHS |
| Package Contents |
TL-SG1008PE, Power Cord, Installation Guide |
| Consumption |
9.5 watts (max. no PD connected)
140.1 watts (max. with 124w PD connected) |
| Environment |
Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
