ATEN UEH4002 CAT5 USB2.0 Extender - (Up to 4 USB Devices 100M)

IMG 1 of 1
No Longer Available
Part Number:
226814
(?) Brand:
ATEN
Manuf No:
UEH4002-AT-E
UEH4002ATE
Shipping Weight:
0.9 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
UEH4002ATE, UEH4002-AT-E, UEH4002, UEH-4002, 4710423778047
UEH4002

Overview

Cat 5 USB 2.0 Extender

The UEH4002 incorporates technology that enables users to extend beyond the standard 5 m cable limit for USB peripheral devices. Up to 4 USB devices can be connected to the Remote unit up to 100 meters from the computer.

UEH4002

UEH4002 provides a durable, high quality connection that harnesses the full capability of the USB 2.0 standard, to ensure the reliable data communication. With UEH4002, the USB extension is no longer the bottleneck.

ROHSWeee

Package Contents

  • 1x UEH4002L Cat 5 USB 2.0 Extender (Local unit)
  • 1x UEH4002R Cat 5 USB 2.0 Extender (Remote unit)
  • 1x AC Power Adapter
  • 1x USB 2.0 Cable (6 ft)
  • 1x User Instructions

Features

UEH4002

The UEH4002 incorporates technology that enables users to extend beyond the standard 5 m cable limit for USB peripheral devices. Up to 4 USB devices can be connected to the Remote unit up to 100 meters from the computer.

Extends the transmission distance of 4 USB devices up to 100 m
USB 2.0 compliant
Fully compliant with USB Electrical and Timing
LED indicators display port focus
Multiplatform support – Windows, Mac

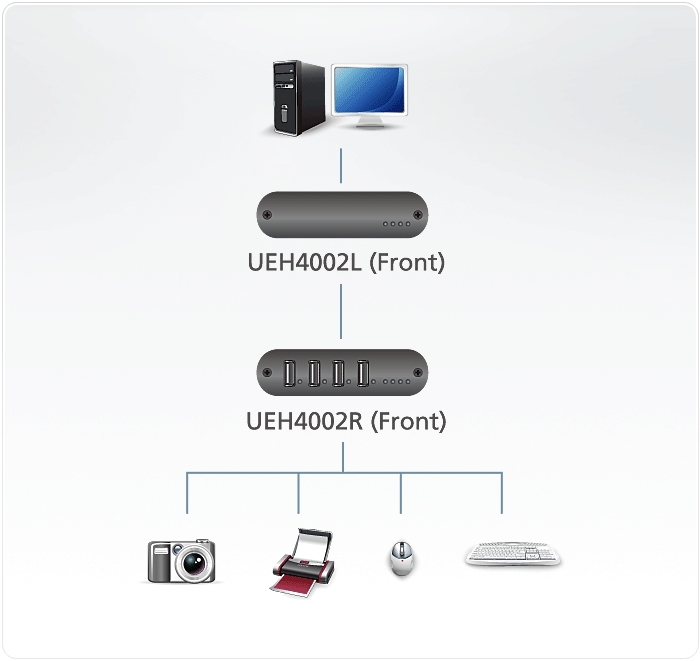

UEH4002 Diagram

Specifications:
Function UEH4002L UEH4002R
Connectors Upstream Port 1 x USB Type B Female (White) 1 x RJ-45 Female
Downstream Port 1 x RJ-45 Female 4 x USB Type A Female (White)
Power 1 x DC Jack
USB Specification 2.0 / 1.1 High / Full / Low Speed
USB Devices Supported N/A 4 USB Devices
Maximum USB devices supported N/A 14 USB devices or 3 USB hubs with 11 USB devices
Power Consumption DC 5V, 2.5W
Environment Operating Temp. 050C
Storage Temp. -2070C
Humidity 080% RH, Non-condensing
Physical
Properties		 Housing Plastic
Weight 0.90 Kg
Dimensions
(L x W x H)		 10.00 x 7.60 x 2.60 cm


No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
