Disk Enclosures

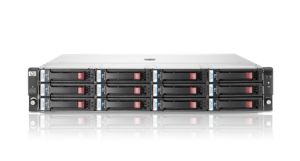

HP D2600 Disk Enclosure (AJ940A)

Is your storage growing by leaps and bounds, exceeding your current system capacity? Manage your small and midrange business growing storage needs by deploying the HP D2000 Disk Enclosures, the next generation 6 Gb SAS low-cost, flexible, tiered external storage system. The HP D2000 Disk Enclosures are ideal for small application environments in small and medium businesses, remote offices and departmental locations.

The new 6 Gb SAS enclosuresLarge Form Factor (LFF) D2600 with 12 drive bays and Small Form Factor (SFF) D2700 with 25 drive baysoffer modular solutions to simplify capacity expansion of HP ProLiant and Integrity server environments and MSA Arrays (SFF only) to external storage without having to make the full move to SAN or NAS. This allows you to buy what is needed today and purchase additional capacity as data storage needs grow. Total support can grow up to 96 LFF or 200 SFF drives as needed.

Features

Affordable Storage

  • HP D2000 Disk Enclosures double the transfer rate of current 3 Gb solutions, adding crucial bandwidth.
  • The HP D2000 Disk Enclosures modular platform allows customers to purchase based on current need and future growth, no hidden management charges.
  • Enterprise-class dual-port SAS drives as the need and budget dictates.
  • Provides higher levels of redundancy and reliability, reducing or eliminating single points of failure within a storage network.
Flexible and Scalable

  • Flexibility to mix and match SAS and SATA drives in the same enclosure. Extends benefit of tiered storage to direct attach customers. Solid State Drives supported in the D2700.
  • The D2600 LFF can grow up to 96 drives. Up to four Large Form Factor (LFF) enclosures can be connected together from a single controller port.
  • The D2700 SFF can grow up to 200 drives. Up to four Small Form Factor (SFF)enclosures can be connected together from a single controller port.
  • With Gen8 Smart Array Controller mix D2600 and the D2700 for expansion, Up to four (4) D2600 and four (4) D2700 (4xLFF and 4xSFF) allowing for expansion up to 148 drives.
Easy to Manage

  • The HP D2000 Disk Enclosures uses familiar HP ProLiant management tools including HP Systems Insight Manager and the HP Array Configuration Utility (ACU) software.
  • The HP D2000 Disk Enclosures are compatible with selected HP Smart Array SAS Controllers.
  • Little IT expertise required.

Specifications

 Capacity

  • 48TB Maximum
  • Depending on drive type

Drive description

  • (12) LFF SAS/SATA
  • Supported

Drive type

  • 300 GB 6G 15K LFF Dual-port ENT SAS
  • 450 GB 6G 15K LFF Dual-port ENT SAS
  • 600 GB 6G 15K LFF Dual-port ENT SAS
  • 1 TB 6G 7.2K LFF Dual-port MDL SAS
  • 2 TB 6G 7.2K LFF Dual-port MDL SAS
  • 3 TB 6G 7.2K LFF Dual-port MDL SAS
  • 4 TB 6G 7.2K LFF Dual-port MDL SAS
  • 1 TB 3G 7.2K LFF MDL SATA
  • 2 TB 3G 7.2K LFF MDL SATA
  • 3 TB 3G 7.2K LFF MDL SATA
  • 4 TB 3G 7.2K LFF MDL SATA
  • Supported, none included

Host interface

  • 6 Gb/sec SAS

Storage controller

  • Smart Array P212/256 MB Controller
  • Smart Array P212/256 MB Controller with BBWC
  • Smart Array P411/256 MB Controller
  • Smart Array P411/512 MB Controller
  • Smart Array P411/512 MB Controller with BBWC
  • Smart Array P812
  • Supported

Storage expansion options

  • 1+3 cascading off a single x4 SAS port


SAN backup support
No

 Storage mirroring support
No

Systems Insight Manager support
Yes

Compatible operating systems

  • Microsoft Windows 2003
  • Microsoft Windows 2008
  • Novell NetWare
  • Red Hat Linux
  • Xen
  • SUSE Linux
  • VMware
  • Microsoft Windows Hyper-V
  • HP-UX

Form factor
2U

Dimensions and weight

Minimum dimensions (W x D x H)
16.5 x 23.5 x 30.0 in

Weight
54 lb

What's included

Differentiator
Large Form Factor drive enclosure

Warranty - year(s) (parts/labor/onsite)
3/0/0

What's in the box

  • D2600 chassis with (12) 3.5-inch drive bays, (2).5 m mini-SAS cables, (2) PDU interconnect cords, dual power supplies and fans. No drives.
