Cisco RV320 Dual Gigabit WAN VPN Router
Product Overview
Network connectivity is at the heart of every small business, and secure access, firewall protection, and high performance are the cornerstones of every Cisco® Small Business RV Series Router. The Cisco RV320 Dual Gigabit WAN VPN Router is no exception. With an intuitive user interface, the Cisco RV320 enables you to be up and running in minutes. The Cisco RV320 provides reliable, highly secure access connectivity for you and your employees that is so transparent you will not know it is there.

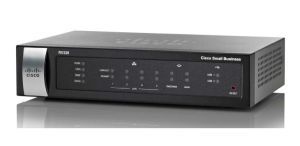

Figure 1. Cisco RV320 Dual Gigabit WAN VPN Router
Features and Benefits
- Dual Gigabit Ethernet WAN ports allow load balancing and business continuity.
- Affordable, high-performance Gigabit Ethernet ports enable rapid transfer of large files, supporting multiple users.
- Dual USB ports support a 3G/4G modem or flash drive. The WAN can also fail over to the 3G/4G modem connected to the USB port.
- SSL VPN and site-to-site VPN enable highly secure connectivity, making the Cisco RV320 perfect for remote employees and multiple offices.
- Stateful packet inspection (SPI) firewall and hardware encryption provide strong security.
- Easy-to-use wizard-based configuration tools can be used to establish network connectivity and manage security.
In an ever-changing business environment, your small business network has to be powerful, flexible, accessible, and highly reliable, especially when growth is a high priority. Your network must also be able to adapt costeffectively to these growth spurts.
The Cisco RV320 Dual Gigabit WAN VPN Router is the choice for any network in which performance, security, reliability, and adaptability top the list of requirements. The Cisco RV320 supports two connections to one service provider, delivering high performance by using load balancing, or to two different providers to deliver business continuity. High-capacity virtual private networks (VPNs) connect multiple offices and enable dozens of employees to access the information they need from any geographic location just as securely as if they were working at your main office.
Product Specifications
Table 1. Product Specifications
Dual WAN
Dual Gigabit Ethernet Ports
Failover
Load balancing
Standards
802.3, 802.3u
IPv4 (RFC 791)
IPv6 (RFC 2460)
WAN Connectivity
Dynamic Host Configuration Protocol (DHCP) server, DHCP client, DHCP relay agent
Static IP
Point-to-Point Protocol over Ethernet (PPPoE)
Point-to-Point Tunneling Protocol (PPTP)
Transparent bridge
DNS relay, Dynamic DNS (DynDNS.org, 3322.org), DNS local database
IPv6
Routing protocols
Routing Information Protocol (RIP) v1 and v2, and RIP for IPv6 (RIPng)
Inter-VLAN routing
Static routing
VLANs supported: 7
Network Address Translation (NAT)
Port Address Translation (PAT)
One-to-one NAT
NAT traversal
Protocol binding
Protocols can be bound to a specific WAN port for load-balancing purposes
Network edge (DMZ)
DMZ port
DMZ host
Dual USB 2.0 ports
Storage and 3G/4G modem support
Security
Firewall
SPI firewall
Denial-of-service (DoS) prevention: ping of death, SYN flood, IP spoofing, WinNuke
Access rules
Schedule-based access rules
Up to 50 entries
Port forwarding
Up to 30 entries
Port triggering
Up to 30 entries
Blocking
Java, cookies, ActiveX, HTTP proxy
Content filtering
Static URL blocking or keyword blocking
Secure management
HTTPS web access to device manager
Username/password complexity enforcement
VLAN
802.1Q VLAN
7 VLANs supported
VPN
IP Security (IPsec)
25 IPsec site-to-site tunnels for branch office connectivity
25 IPsec VPN tunnels via Cisco VPN client and third-party clients such as The GreenBow for remoteaccess VPN connectivity
SSL VPN
10 SSL VPN tunnels for remote client access
PPTP
10 PPTP tunnels for remote access
Encryption
Data Encryption Standard (DES)
Triple Data Encryption Standard (3DES)
Advanced Encryption Standard (AES) encryption: AES-128, AES-192, AES-256
Authentication
MD5/SHA1
IPsec NAT traversal
Supported for gateway-to-gateway and client-to-gateway tunnels
VPN pass-through
PPTP, Layer 2 Tunneling Protocol (L2TP), IPsec
Advanced VPN
Dead peer detection (DPD)
Split DNS
VPN backup
Internet Key Exchange (IKE) with certificate
Quality of Service (QoS)
Service-based QoS
Rate control or priority
Rate control
Upstream/downstream bandwidth per service
Prioritization types
Application-based priority on WAN port
Priority
Services mapped to one of two priority levels
Performance
NAT throughput
900 Mbps
IPsec VPN throughput
100 Mbps
SSL VPN throughput
20 Mbps
Concurrent connections
20,000
Configuration
Web user interface
Browser-based device manager (HTTP/HTTPS)
Management
Management protocols
Web browser (HTTP/HTTPS)
Simple Network
Management Protocol (SNMP) v1, v2c, and v3
Bonjour
Event logging
Local log
Syslog
Email alert
Short Message Service (SMS)
Upgradability
Firmware upgradable through the web browser
Import or export configuration files from or to a USB flash drive
Description Specification
Product dimensions (W x H x D)
206 x 132 x 44 mm (8.1 x 5.2 x 1.7 in)
Ports
Four 10/100/1000 Gigabit Ethernet RJ-45 ports
One 10/100/1000 Gigabit Ethernet RJ-45 Internet (WAN) port
One 10/100/1000 Gigabit Ethernet RJ-45 DMZ/Internet (WAN) port
Power supply
12V 1.5A
Certification
FCC Class B, CE Class B, UL, cUL, CB, CCC, BSMI, KC, Anatel
Operating temperature
0° to 40°C (32° to 104°F)
Storage temperature
0° to 70°C (32° to 158°F)
Operating humidity
10% to 85% noncondensing
Storage humidity
5% to 90% noncondensing
