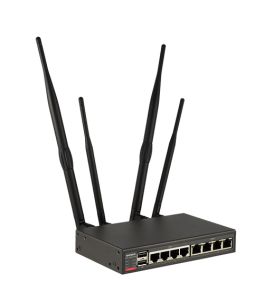

Opengear ACM5504-5-G-W-I Console Server - Cisco Pinout, 4x

Models and Connectors

All models:

2 x External USB 2.0 Host Type A sockets

Rack mount brackets

ACM5508-2:

8 x RJ45 RS-232 serial ports (2400 to 230,400bps), Cisco pinout.

2 x RJ45 10/100Base-T primary and failover Ethernet ports

ACM5504-2-P:

4 x RJ45 RS-232 serial ports (2400 to 230,400bps). Cisco pinout

1 x RJ45 Primary PoE (IEEE802.3af compliant) , 1 x Secondary RJ45 10/100Base-T

ACM5508-2-M:

8 x RJ45 RS-232 serial ports (2400 to 230,400bps), Cisco pinout.

2 x RJ45 10/100Base-T primary and failover Ethernet ports

1 x RJ11 V.92 modem phone socket

ACM5508-2-I:

8 x RJ45 selectable RS-232/422/485 serial ports (2400 to 230,400bps), Cisco pinout.

2 x RJ45 10/100Base-T primary and failover Ethernet ports

ACM5504-5-G-I &ACM5504-5-GV-I:

4 x RJ45 selectable RS-232/422/485 serial ports (2400 to 230,400bps), Cisco pinout.

1 x RJ45 10/100Base-T primary Ethernet and 4 x RJ45 10/100 Ethernet switch

Dual SIM card slot (used in -G model only)

Dual SMA antenna connectors - for receive diversity or GPS

1 x external cellular antenna. Optional second diversity or GPS antenna

ACM5504-5-LA-I &ACM5504-5-LR-I &ACM5504-5-LV-I:

4 x RJ45 selectable RS-232/422/485 serial ports (2400 to 230,400bps), Cisco pinout.

1 x RJ45 10/100Base-T primary Ethernet and 4 x RJ45 10/100 Ethernet switch

Dual SIM card slot

Three SMA antenna connectors - for receive diversity and GPS

1 x external 7 band cellular antenna. Optional diversity and GPS antennas

ACM5504-5-G-W-I :

4 x RJ45 selectable RS-232/422/485 serial ports (2400 to 230,400bps), Cisco pinout.

1 x RJ45 10/100Base-T primary Ethernet and 4 x RJ45 10/100 Ethernet switch

Dual SIM card slot

Dual cellular SMA antenna connectors - for diversity or GPS

1 x external cellular antenna. Optional second diversity or GPS antenna

Wi-Fi Access Point 802.11 b/g/n with one antenna. Optional Wi-Fi diversity antenna

All rugged models:(ACM5508-2-I &ACM5504-5-G/GV-I &ACM5504-5-G-W-I &ACM5504-5-LA/R/V-I)

8 way pluggable terminal block

2 TTL level digital I/O ports (DIO) 5V DC max @ 20mA (supports external water /smoke / motion dry contact sensors)

2 High Voltage Digital Outputs (HVDO) 5-30V DC@ 100mA (drives relays, alarms, etc.)

DIN rail brackets

Power

All models:

 110-240V AC to 12V DC external power adapter

SDC option: + or - 36V to 72V DC external power converter

All rugged models:

 Dual power inputs

External DC operation (+9V to +30V) on pluggable terminal block. Additional transient reverse voltage protection on external DC power

Consumption:

 4.2W for ACM5504-2-P, 6.3W for ACM5508-2-M, 6.4W for ACM5508-2-I, 9.4 W for ACM5504-5-G/GV-I & ACM5504-5-LA/R/V-I, 11.3 W for ACM5504-5-G-W-I

Dimensions and Weight

6.5 x 4 x 1 1/8 in | 16.6 x 10.2 x 2.8 cm
4 lbs (1.8 kg)

Environmental

All models:

 Humidity: 5% to 90%

Internal temperature sensor

ACM5508-2-M &ACM5504-2-P:

 Ambient operating temperature: 5C to 50C, 41F to 122F

Non operating storage temp: -30C to +60C, -20F to +140F

All rugged models:(ACM5508-2-I &ACM5504-5-G/GV-I &ACM5504-5-G-W-I &ACM5504-5-LA/R/V-I)

Ambient operating temperature: -35C to 74C, -31F to 165F

Non operating storage temp: -40C to 85C (-40F to 185F)

Emissions

FCC Part 15 Subpart B Class A Radiated Emissions 30MHz 1000MHz
ICES-003 Issue 4 February 2004 Class A Radiated Emissions 30MHz 1000MHz
AS/NZS CISPR 22: 2004 Class A Radiated Emissions 30MHz 1000MHz
EN55022: 1998 + A1: 2000 + A2: 2003 Class A Radiated Emissions 30MHz 1000MHz

Immunity

EN55024: 1998 +A1: 2001 +A2: 2003
IEC61000-4-2: 1995 ESD 8kV Air Discharge (Direct), 4kV Contact Discharge (Direct/Indirect)
IEC61000-4-3: 1995 Radiated Immunity 3.0V/m, 1KHz AM Sine Wave at 80%
IEC61000-4-4: 1995 EFT/Burst 1.0kV Power Lines, 0.5kV I/O Lines
IEC61000-4-5: 1995 Surge Immunity 1.0kV Common Mode, 1.0 kV Differential Mode
IEC61000-4-6: 1996 Conducted Immunity 3.0 Vrms, 80% AM Modulated (1KHz)
IEC61000-4-11: 1994 Voltage Dips and Interrupts (>95%,0.5 periods), (30%,25 periods), (>95%,250 periods)

Isolation

Serial Port: 4kV ESD protection on RS-232 and RS-422/485 transceivers
Ethernet Port: 1500V AC isolation shielded with shield connected to chassis ground for signal integrity and ESD protection

Other Agency Approvals

CE, UL 1950, TUV, C-Tick, RoHS compliant, Security features to supportNERC CIP standards, FIPS 140-2 validated module Certificate #1051

Memory & CPU

250MHz ARM (Micrel KSZ8692)
64MB DDR 32-bit RAM, 16MB Embedded Flash and 4GB Internal USB Flash

MTBF

AC-DC (12V) adapter 100,000 hours

(-48V 12V) adapter 90,000 hours

DC plant power - 120,000 hours

Operating System

Linux with source code access and Custom Development Kit (CDK)

Security & Authentication

IPSec & OpenVPN, SSL tunnels, Secure Shell (SSH V2), TACACS+, Kerberos, RADIUS and LDAP authentication, PAP/CHAP authentication (dial up), Dial back support, Local authentication, System event syslog, Authenticated NTP

Gateway Router

Stateful firewall, DHCP server, DDNS, Failover, Port forwarding, IP filtering with access control lists

Remote Management

HTTPS & SSH console, Nagios NSCA & NRPE, SNMP, TFTP & FTP server, Password access control, IP service port control, AJAX web terminal, Auto Response

Wireless Specification

Opengear ACM5500 cellular wireless gateways operate on 3G-GSM/UMTS, 3G CDMA/EV-DO, 4G LTE 700/HSPA, 4G LTE 700/3G EVDO and 4G LTE 800-2600 / HSPA+ networks globally. Some gateways also integrate an 802.11 WAP.

Wireless Specifications - 3G-GSM/UMTS (ACM5504-5-G-IO, ACM5504-5-G-W-I

Air Interface:	EDGE, GPRS, GSM, HSDPA, HSUPA Quad-band for global connectivity; Supported networks include ATT (USA), Vodaphone & 3 (UK), T-Mobile (Germany), Telstra & Optus (Aus); User provides SIM Card
Frequency Bands:	850/900/1900/2100 MHz WCDMA Power class 3 (+24dBm) 850/900 MHz GSM/GPRS/EDGE GSM Power class 4/EDGE E2 1800/1900 MHz GSM/GPRS/EDGE GSM Power class 1/EDGE E2 GPS/1575.42 MHZ
Data Services:	850/900/1900/2100 MHz WCDMA (HSDPA and HSPA) downlink up to 7.2 Mbps, uplink up to 5.76 Mbps; 850/900/1800/1900 MHz GSM/GPRS/EDGE downlink up to 236 Kbps, uplink up to 236 Kbps

Wireless Specifications - 3G-CDMA/EV-DO (ACM5504-5-GV-I)

Air Interface:	Dual-band ACM5504-5-GV-I supports Verizon network (USA)
Frequency Bands:	Dual Band 800MHz North American Cellular band 1900MHz North American PCS band
Data Services:	CDMA 1xEV-DO Revision A (IS-856-A) forward link up to 3.1 Mbps, reverse link 1.8 Mbps CDMA 1xEV-DO Rel 0 (IS-856) forward link up to 2.4 Mbps, revers link 153.6 Kbps CDMA 1xRTT (IS-2000) forward and reverse link speeds up to 153.6 Kbps

Wireless Specifications - 4G LTE 700/HSPA (ACM5504-5-LA-I)

Air Interface:	LTE, HSPA+, GSM, GPRS, EDGE Supports AT&T (USA).User provides SIM Card
Frequency Bands:	LTE 700 MHz (Band 17)/AWS WCDMA 850/1900/2100 MHz EDGE/GPRS/GSM 850/900/1800/1900 MHz
Data Services:	Transfer rate (peak): Upload 50Mbps, Download 100 Mbps

Wireless Specifications - 4G LTE 700/3G EVDO (ACM5504-5-LV-I)

Air Interface:	LTE, EV-DO REV A Supports Verizon (USA).User provides SIM Card
Frequency Bands:	700 MHz (Band 13) 2G fall back to CDMA 850/1900 MHz
Data Services:	Transfer rate (peak): Upload 50Mbps, Download 100 Mbps

Wireless Specifications - 4G LTE 800-2600 / HSPA+ (ACM5504-5-LR-I)

Air Interface:	LTE, HSPA+, EDGE, GPRS, GSM Supports most carriers EMEA, APAC, ANZ.User provides SIM Card
Frequency Bands:	LTE800/900/1800/2100/2600 MHz WCDMA 900/2100 MHz EDGE/GPRS/GSM 900/1800/1900 MHz
Data Services:	Transfer rate (peak): Upload 50Mbps, Download 100 Mbps

Wireless Specifications - 802.11 b/g/n (ACM5504-5-G-W-I)

Wireless Access Point:

802.11 b/g/n, AP or Client mode, Infrastructure or Ad-hoc WEP, WPA-PSK, WPA2-PSK, WPA-None, WPA-PEAP-MSCHAPv2 Wireless Encryption: TKIP, AES

Cellular Certification

PTCRB, NAPRD.03, GCF-CC, R&TTE, EN 301 511, A-Tick (GSM/UMTS)
CDG TIA/EIA-690, CDG TIA/EIA-98-E (CDMA/EV-DO)
