All stock codes associated to this product
WD5003ABYZ, HAWD5003ABYZ

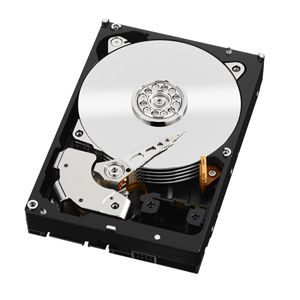

Hard Drives
WD Re
Features
Interface:
SAS 6 Gb/s, SATA 6 Gb/s, SATA 3 Gb/s
Capacity:
250 GB - 4 TB
Industry’s highest capacity nearline drive.
Massive capacities up to 4 TB suit even the most demanding datacenter or cloud storage needs.
Designed for quality and reliability.
Datacenter drives undergo at least 5 million hours of functional testing, and over 20 million hours of comprehensive Interoperability testing in an extensive array of server and storage systems. Please see the product AVL list for more info.
Dual portprocessor.
Twice the processing power to maximize performance.
Dual port, full duplex connectivity (SAS only).
Offers higher reliability, performance and data availability by eliminating single points of failure, designed for high-availability mission-critical enterprise systems.
Dual actuator technology.
A head positioning system with two actuators that improves positional accuracy over the data track(s). The primary actuator provides coarse displacement using conventional electromagnetic actuator principles. The secondary actuator uses piezoelectric motion to fine tune the head positioning to a higher degree of accuracy. (2 TB and above)
StableTrac.
The motor shaft is secured at both ends to reduce system-induced vibration and stabilize platters for accurate tracking during read and write operations. (2 TB and above)
Multi-axis shock sensor.
Automatically detects the subtlest shock events and compensates to protect the data.
Designed for heavy application workloads.
Designed to handle up to 550 TB per year in any heavy application datacenter with the highest workload capabilities of any WD 3.5 hard drive. Up to 6 Gb/s transfer rates and sustained sequential data rates of up to 182 MB/s, deliver performance and reliability to any datacenter environment.
Vibration Protection.
Enhanced RAFF technology includes sophisticated electronics to monitor the drive and correct both linear and rotational vibration in real time. The result is a significant performance improvement in high vibration environments over the previous generation of drives.
RAID-specific, time-limited error recovery (TLER).
Prevents drive fallout caused by the extended hard drive error-recovery processes common to desktop drives.
Thermal extended burn-in test.
Each drive is put through extended burn-in testing with thermal cycling to ensure reliable operation.
Dynamic fly height technology.
Each read-write head’s fly height is adjusted in real time for optimum reliability.
NoTouch ramp load technology.
The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.
Environmentally responsible.
In addition to being RoHS compliant, these drives are built with halogen reduced components.
Designed for quality and reliability.
With up to 1.4 million hour MTBF, this high performance drive delivers durability and the highest level of reliability for 24x7x365 operation in the most demanding storage environments.
Self-encrypting Drive (SED) Option.
SAS Drive: Optional secure model for encrypting drives – Utilizing an AES 256 bit encryption engine for Crypto erase capability, WD supports the industry standard commands of both the SCSI Sanitize command with Crypto Erase and the Trusted Computing Group (TCG) command set.
SATA Drive: Optional secure model for encrypting drives – Utilizing an AES 256 bit encryption engine for Crypto erase capability,
WD supports both the T13 Sanitize command and the ATA Password support of Secure Erase Unit (SEU).
SED drives may require TCG-compliant host or controller support. SED drives may not be available in all countries.
The WD advantage.
WD puts our datacenter products through extensive Functional Integrity Testing (F.I.T) prior to any product launch. This testing ensures our products consistently meet the high quality and reliability standards of the WD brand. Following a FIT test the Enterprise System Group (ESG) testing validates interoperability with HBAs, operating systems and drivers to ensure an even greater level of quality, reliability and peace of mind.
WD also has a detailed Knowledge Base with helpful articles and software utilities. Our customer support lines have longer operational hours to ensure you get the help you need when you need it. Our toll-free customer support lines are here to help or you can access our WD Support site for additional details.
Specifications
| Product Specifications |
|
 |
Interface |
SATA 6 Gb/s |
|
| Performance Specifications |
|
|
Rotational Speed |
7,200 RPM (nominal) |
|
Buffer Size |
64 MB |
|
Average Latency |
4.20 ms (nominal) |
|
Load/unload Cycles |
600,000 minimum |
|
| Transfer Rates |
|
Transfer Rate (Buffer To Disk) |
128 MB/s (Max) |
|
| Physical Specifications |
|
|
Formatted Capacity |
500,107 MB |
|
Capacity |
500 GB |
|
Form Factor |
3.5 Inch |
|
User Sectors Per Drive |
976,773,168 |
|
| Physical Dimensions |
|
| English |
|
Height |
1.028 Inches |
|
Depth |
5.787 Inches |
|
Width |
4.00 Inches |
|
Weight |
0.99 Pounds |
|
| Metric |
|
Height |
25.40 mm |
|
Depth |
147 mm |
|
Width |
101.6 mm |
|
Weight |
0.45 kg |
|
| Environmental Specifications |
|
| Shock |
|
Operating Shock (Read) |
65G, 2 ms |
|
Non-operating Shock |
350G, 2 ms |
|
| Acoustics |
|
Idle Mode |
27 dBA (average) |
|
Seek Mode 0 |
30 dBA (average) |
|
| Temperature (English) |
|
Operating |
32 F to 140 F |
|
Non-operating |
-40 F to 158 F |
|
| Temperature (Metric) |
|
Operating |
5 C to 55 C |
|
Non-operating |
-40 C to 70 C |
|
| Electrical Specifications |
|
| Current Requirements |
|
Power Dissipation |
|
Read/Write |
6.30 Watts |
|
Idle |
4.40 Watts |
|
| Compatibility |
|
| Operating System |
|
Compatibility |
Windows/Mac |
