J9574A
Fixed Port L3 Managed Ethernet Switches

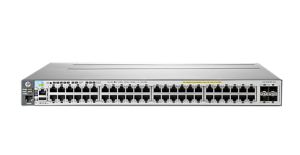

HP 3800-48G-PoE+-4SFP+ Switch (J9574A)
Overview
The HP 3800 Switch Series is a family of nine fully managed Gigabit Ethernet switches available in 24-port and 48-port models, with or without PoE+, and with either SFP+ or 10GBASE-T uplinks. The 3800 Switch Series utilizes the latest HP ProVision ASIC technology and advances in hardware engineering to deliver one of the most resilient and energy-efficient switches in the industry.
Meshed stacking technology is implemented in the HP 3800 Switch Series to deliver chassis-like resiliency in a flexible, stackable form factor.
Features
Software-defined networking
-
- OpenFlow: is a key technology that enables software-defined networking by allowing the separation of data (packet forwarding) and control (routing decision) paths
-
Quality of Service (QoS)
-
- Advanced classifier-based QoS: classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis
-
- Layer 4 prioritization: enables prioritization based on TCP/UDP port numbers
-
- Class of Service (CoS): sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ
-
- Bandwidth shaping: Port-based rate limiting: provides per-port ingress-/egress-enforced increased bandwidth. Classifier-based rate limiting: uses an access control list (ACL) to enforce increased bandwidth for ingress traffic on each port. Reduced bandwidth: provides per-port, per-queue egress-based reduced bandwidth.
-
- Remote intelligent mirroring: mirrors selected ingress/egress traffic based on ACL, port, MAC address, or VLAN to a local or remote HP 8200 zl, 6600, 6200 yl, 5400 zl, 3800, or 3500 Switch anywhere on the network
-
Management
-
- Friendly port names: allow assignment of descriptive names to ports
-
- IEEE 802.1AB Link Layer Discovery Protocol (LLDP): advertises and receives management information from adjacent devices on a network, facilitating easy mapping by network management applications
-
- Command authorization: leverages RADIUS to link a custom list of CLI commands to an individual network administrator's login; an audit trail documents activity
-
- Uni-Directional Link Detection (UDLD): monitors a cable between two switches and shuts down the ports on both ends if the cable is broken, turning the bidirectional link into a unidirectional one; this prevents network problems such as loops
-
- Multiple configuration files: can be stored to the flash image
-
Connectivity
-
- Jumbo frames: on Gigabit Ethernet and 10-Gigabit Ethernet ports, jumbo frames allow high-performance remote backup and disaster-recovery services
-
- IEEE 802.3at Power Over Ethernet Plus (PoE+): provides up to 30 W per port to IEEE 802.3 for devices that use PoE/PoE+, such as video IP phones, IEEE 802.11n wireless access points, and advanced pan/zoom/tilt security cameras
-
- Prestandard PoE support: detects and provides power to prestandard PoE devices; see list of supported devices in the product FAQs at www.hp.com/networking
-
- Choice of uplinks: SFP+ uplink models: provide fiber-optic (up to 70 km) or direct attach cable (DAC) connectivity. 10GBASE-T uplink models: offer 10GbE speeds using standard RJ-45 connectors and standard twisted pair cabling up to 100 m.
-
- Auto-MDIX: automatically adjusts for straight-through or crossover cables on all RJ-45 ports
Specifications
Ports
-
- 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+)<br>Duplex: 10BASE-T/100BASE-TX: half or full
- 1000BASE-T: full only
- 4 fixed 1000/10000 SFP+ ports
- 1 RJ-45 serial console port
- 1 RJ-45 out-of-band management port
- 1 stacking module slot
-
-
Memory and processor
Processor : HP ProVision ASIC/ARM @ 350 MHz; Freescale P2020 @ 1200 MHz, 4 GB flash, packet buffer size: 36 MB dynamic, 2 GB SDRAM
Throughput
up to 130.9 million pps (64-byte packets)
Switching capacity
176 Gbps
PoE capability
1080 W
Management features
-
- HP PCM+
- HP PCM
- command-line interface
- Web browser
- configuration menu
-
Power and operating requirements
Power consumption
186 W (maximum), 97 W (standby)
Input voltage
100-120/200-240 VAC
Operating temperature range
0 to 55C
Power supply name
1 x J9580A
Heat dissipation
635 BTU/hr (669.93 kJ/hr)
Dimensions and weight
Weight
7.64 kg
What's included
Differentiator
HP 3800-48G-PoE+-4SFP+ Switch: 48-port 10/100/1000 PoE+ switch with 4 10-GbE SFP+ Uplinks
