HP J9573A Gigabit Switch - 24-Port 10/100/1000 PoE+, 2-Port 10GbE SFP+, QoS, Stackable

No Longer Available

Part Number:

230861

(?) Brand:

HP Web Site

Manuf No:

J9573A

Shipping Weight:

8 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Finance Images & Video

All stock codes associated to this product

J9573A, 886112091163

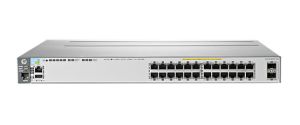

HP 3800-24G-PoE+-2SFP+ Switch (J9573A)

Overview

The HP 3800 Switch Series is a family of nine fully managed Gigabit Ethernet switches available in 24-port and 48-port models, with or without PoE+, and with either SFP+ or 10GBASE-T uplinks. The 3800 Switch Series utilizes the latest HP ProVision ASIC technology and advances in hardware engineering to deliver one of the most resilient and energy-efficient switches in the industry.

Meshed stacking technology is implemented in the HP 3800 Switch Series to deliver chassis-like resiliency in a flexible, stackable form factor.

Features

Software-defined networking

OpenFlow: is a key technology that enables software-defined networking by allowing the separation of data (packet forwarding) and control (routing decision) paths

Quality of Service (QoS)

Advanced classifier-based QoS: classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis

Layer 4 prioritization: enables prioritization based on TCP/UDP port numbers

Class of Service (CoS): sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ

Bandwidth shaping: Port-based rate limiting: provides per-port ingress-/egress-enforced increased bandwidth. Classifier-based rate limiting: uses an access control list (ACL) to enforce increased bandwidth for ingress traffic on each port. Reduced bandwidth: provides per-port, per-queue egress-based reduced bandwidth.

Remote intelligent mirroring: mirrors selected ingress/egress traffic based on ACL, port, MAC address, or VLAN to a local or remote HP 8200 zl, 6600, 6200 yl, 5400 zl, 3800, or 3500 Switch anywhere on the network

Management

Friendly port names: allow assignment of descriptive names to ports

IEEE 802.1AB Link Layer Discovery Protocol (LLDP): advertises and receives management information from adjacent devices on a network, facilitating easy mapping by network management applications

Command authorization: leverages RADIUS to link a custom list of CLI commands to an individual network administrator's login; an audit trail documents activity

Uni-Directional Link Detection (UDLD): monitors a cable between two switches and shuts down the ports on both ends if the cable is broken, turning the bidirectional link into a unidirectional one; this prevents network problems such as loops

Multiple configuration files: can be stored to the flash image

Connectivity

Jumbo frames: on Gigabit Ethernet and 10-Gigabit Ethernet ports, jumbo frames allow high-performance remote backup and disaster-recovery services

IEEE 802.3at Power Over Ethernet Plus (PoE+): provides up to 30 W per port to IEEE 802.3 for devices that use PoE/PoE+, such as video IP phones, IEEE 802.11n wireless access points, and advanced pan/zoom/tilt security cameras

Prestandard PoE support: detects and provides power to prestandard PoE devices; see list of supported devices in the product FAQs at www.hp.com/networking

Choice of uplinks: SFP+ uplink models: provide fiber-optic (up to 70 km) or direct attach cable (DAC) connectivity. 10GBASE-T uplink models: offer 10GbE speeds using standard RJ-45 connectors and standard twisted pair cabling up to 100 m.

Auto-MDIX: automatically adjusts for straight-through or crossover cables on all RJ-45 ports

Specifications

Ports

24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+)<br>Duplex: 10BASE-T/100BASE-TX: half or full
1000BASE-T: full only
2 fixed 1000/10000 SFP+ ports
1 RJ-45 serial console port
1 RJ-45 out-of-band management port
1 stacking module slot

Memory and processor

Processor : HP ProVision ASIC/ARM @ 350 MHz; Freescale P2020 @ 1200 MHz, 4 GB flash, packet buffer size: 18 MB dynamic, 2 GB SDRAM

Throughput

up to 65.4 million pps (64-byte packets)

Switching capacity

88 Gbps

PoE capability

720 W

Management features

HP PCM+
HP PCM
command-line interface
Web browser
configuration menu

Power and operating requirements

Power consumption

127 W (maximum), 70 W (standby)

Input voltage

100-120/200-240 VAC

Operating temperature range

0 to 55C

Power supply name

1 x J9580A

Heat dissipation

434 BTU/hr (457.87 kJ/hr)

Dimensions and weight

Weight

7.21 kg

What's included

Differentiator

HP 3800-24G-PoE+-2SFP+ Switch: 24-port 10/100/1000 PoE+ switch with 2 10-GbE SFP+ Uplinks

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 year return to base

Full manufacturers warranty details are available at the manufacturers (HP) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
