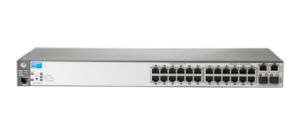

HP 2620-24 Switch (J9623A)

Overview

The HP 2620 Switch Series consists of five switches with 10/100 connectivity. The HP 2620-24 Switch is a fanless switch with quiet operation, making it ideal for deployments in open spaces.

The HP 2620-24-PPoE+ Switch, HP 2620-24-PoE+ Switch, and HP 2620-48-PoE+ Switch are IEEE 802.3af- and IEEE 802.3at-compliant switches and provide up to 30 W per powered port. The HP 2620-48 Switch has variable speed fans for quiet operation.

All 2620 series switches include two 10/100/1000BASE-T ports and two SFP slots for Gigabit Ethernet uplink connectivity. An optional redundant external power supply is also available to provide redundancy in the event of a power supply failure.

With IPv4/IPv6 static and RIP routing, robust security and management features, free lifetime warranty, and free software updates, the HP 2620 Switch Series is a cost-effective solution for customers who are building converged enterprise edge networks.

Features

Quality of Service (QoS)

  • Layer 4 prioritization: enables prioritization based on TCP/UDP port numbers
  • Traffic prioritization (IEEE 802.1p): allows real-time traffic classification into eight priority levels mapped to eight queues
  • Class of Service (CoS): sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ
  • Rate limiting: sets per-port ingress enforced maximums and per-port, per-queue minimums
Connectivity

  • Auto-MDIX: provides automatic adjustments for straight-through or crossover cables on all 10/100 and 10/100/1000 ports
  • IPv6: IPv6 host: allows the switches to be managed and deployed at the edge of an IPv6 network. Dual stack (IPv4/IPv6): provides a transition mechanism from IPv4 to IPv6; supports connectivity for both protocols. MLD snooping: forwards IPv6 multicast traffic to the appropriate interface; prevents IPv6 multicast traffic from flooding the network.
  • IEEE 802.3af Power over Ethernet (PoE): provides up to 15.4 W per port to IEEE 802.3af-compliant PoE-powered devices such as IP phones, wireless access points, and security cameras
  • IEEE 802.3at Power Over Ethernet Plus: provides up to 30 W per port to IEEE 802.3 for PoE-/PoE+-powered devices such as video IP phones, IEEE 802.11n wireless access points, and advanced pan/tilt/zoom security cameras
  • Pre-standard PoE support: detects and provides power to pre-standard PoE devices; see list of supported devices in the product FAQ at www.hp.com/networking/support
Resiliency and high availability

  • External redundant power supply: provides high reliability
  • IEEE 802.3ad Link Aggregation Protocol (LACP) and HP port trunking: support up to 24 trunks, each with up to 8 links (ports) per trunk
  • IEEE 802.1s Multiple Spanning Tree: provides high link availability in multiple VLAN environments by allowing multiple spanning trees
Manageability

  • Dual flash images: provides independent primary and secondary operating system files for backup while upgrading
  • Friendly port names: allow assignment of descriptive names to ports
  • Find-Fix-Inform: finds and fixes common network problems automatically, then informs administrator
  • Multiple configuration files: allow multiple configuration files to be stored to a flash image
  • Software updates: free downloads from the Web

Specifications

Ports

  • 24 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX)<br>Media Type: Auto-MDIX<br>Duplex: half or full
  • 1 RJ-45 serial console port
  • 2 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)<br>Duplex: 10BASE-T/100BASE-TX: half or full
  • 1000BASE-T: full only
  • 2 open mini-GBIC (SFP) slots

Memory and processor
Processor : PowerPC FreeScale 8313 @ 400 MHz, 512 MB flash, packet buffer size: 1 MB, 512 MB SDRAM, 4 MB flash ROM

Latency

  • 100 Mb Latency: < 8.3 s (LIFO 64-byte packets)
  • 1000 Mb Latency: < 2.9 s (LIFO 64-byte packets)

Throughput
up to 9.5 million pps

Routing/switching capacity
12.8 Gbps

 PoE capability
0 W

Management features

  • command-line interface
  • Web browser

Power and operating requirements

Power consumption
28 W (maximum), 13.3 W (standby)

Input voltage
100-127/200-240 VAC

Operating temperature range
0 to 55C

Operating humidity range
15 to 95% (noncondensing)

Heat dissipation
95 BTU/hr (100.23 kJ/hr)

Dimensions and weight

Minimum dimensions (W x D x H)
44.3 x 25.4 x 4.39 cm

Weight
2.59 kg
(Fully loaded)

What's included

Differentiator
The HP 2620-24 Switch is a managed 28-port switch with 24 auto-sensing 10/100 ports and 2 10/100/1000BASE-T and 2 SFP ports

What's in the box
(1) HP 2620-24 Switch

Warranty
Lifetime, advance replacement, next business day, phone support, software releases
