All stock codes associated to this product
PE6324GAX, PE6324G-AX, PE6324

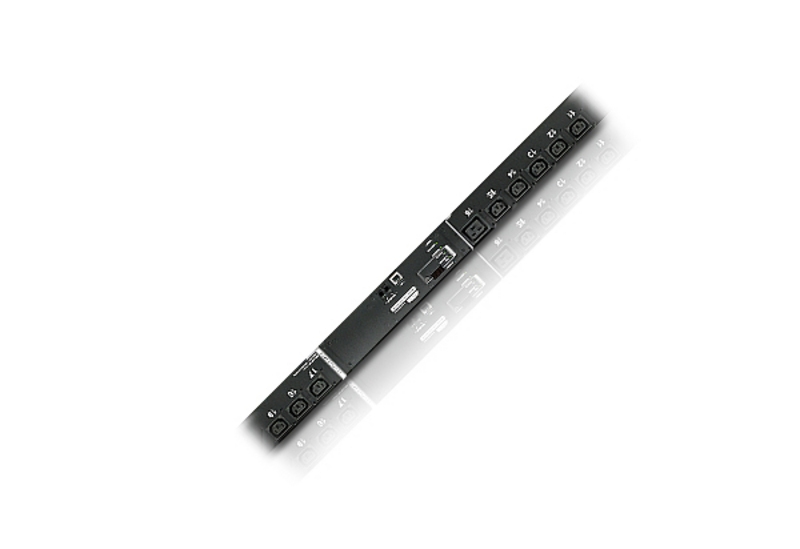

eco PDU
As part of its NRGence line, ATEN has developed a new generation of green energy power distribution units (PDUs) to effectively increase the efficiency of data center power usage. The NRGence PE5324 eco PDU is an intelligent PDU that contains 24 AC outlets and is available in various IEC or NEMA socket configurations. It provides the ability to monitor the center's health environment via sensors*.
NRGence eco PDU offers real-time power measurement – allowing you to monitor the power status of devices attached to the PDUs, either at the PDU device or Bank level, from practically any location via a TCP/IP connection. It also offers comprehensive power analysis reports – providing precise measurements of current, voltage, power and watt-hour in a real-time Display.
NRGence eco PDU supports any 3rd party v1, v2 & v3 SNMP Manager Software and ATEN eco Sensors (eco PDU Manager Software). eco Sensors provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it.
With its advanced security features and ease of operation, the eco PDU is the most convenient, most reliable, and most cost effective way to remotely monitor power status for multiple computer installations and allocate power resources in the most efficient way possible.
Features:
Power Distribution
Space saving 0U rack mount design with rear mounting
IEC or NEMA outlet models
3 x 7-segment front panel LED shows Current / IP Address for PDU / Bank
Remote users can monitor PDU/Bank status via web pages on their browsers
Safe shutdown support
Separate power for the unit´s own power and its power outlets – the user interface is still accessible even when an overload condition trips the devices´ circuit breaker
Remote Access
Remote power control via TCP/IP and a built in 10/100 Ethernet port
Network Protocols: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, auto sense, Ping
eco PDU Power Management software – eco Sensors
Supports SNMP Manager V1, V2 & V3
Operation
Local and Remote power outlet control (On, Off, Power Cycle) by individual outlets
Supports multiple power control methods – Wake on LAN, System After AC Back, Kill the Power
Power-on sequencing – users can set the power on sequence and delay time for each port to allow equipment to be turned on in the proper order
Easy setup and operation via a browser-based user interface
Multibrowser support (IE, Mozilla, Firefox, Chrome, Safari, Opera, Netscape)
RTC support to keep the timer running during times of no power.
Up to 8 user accounts and 1 administrator account
Management
Power status measurement at the PDU/Bank level
LED indicators for current and IP address at the PDU device and/or Bank levels
Real-time aggregate current, voltage, and power and power dissipation displayed in a browser-based UI for monitoring at the bank level

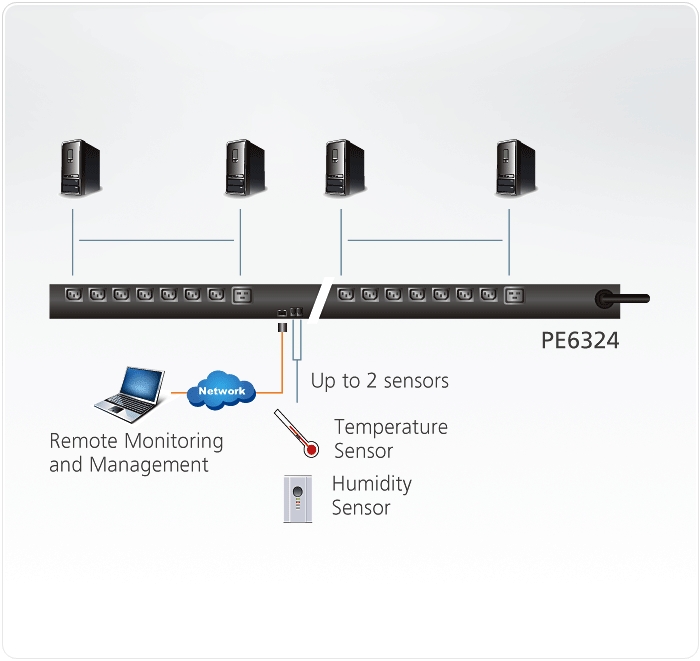

Environment monitoring – supports external temperature / humidity / Differential Pressure sensors for rack environment monitoring
Current and voltage threshold setting
Naming support for outlets
User outlet access assignment on an outlet-by-outlet basis
Event logging and syslog support
Upgradeable firmware
Multilanguage support: English, Traditional Chinese, Simplified Chinese, Japanese, German, Italian, Spanish, French, Russian
Security
Two-level password security
Strong security features include strong password protection and advanced encryption technologies – 128 bit SSL
Remote authentication support: RADIUS
eco Sensors Energy Management Software*
Automatic discovery of all PE devices within the same intranet
Remote real-time power measurement and monitoring
Remote real-time environment sensor monitoring
Plotting/Monitoring of all PE devices
Exceed threshold alert through SMTP and System log
Power Analysis Report
*eco Sensors is designed to work with NRGence™ PDUs, and is bundled with all PE series packages
Specifications:
| Function |
PE6324B |
PE6324G |
| Power Outlets |
Direct |
24 |
| Connectors |
Power Inlet |
1 x NEMA L6-30P (cord) |
1 x IEC 60309 (cord) |
| Power Outlets |
NEMA |
NA |
| IEC |
21 x IEC 320 C13
3 x IEC 320 C19 |
| Sensor |
2 x RJ-11 Female |
| LAN |
1 x RJ-45 Female |
| LEDs |
Outlet Status |
24 (Orange) |
24 (Orange) |
| PDU Current / IP |
2 (Green) |
| Current / IP |
3-digit 7-segment (Orange) |
| Power |
1 (Blue) |
| LAN |
10/100 Mbps |
1 (Orange / Green) |
| Link |
1 (Green) |
| Sensor |
2 (Green) |
| Switches |
Reset |
1 x Semi-recessed Pushbutton |
| Power |
2 x UL 489 Breaker |
| Select |
1 x Pushbutton |
| I/P Rating |
100240V~; 50-60Hz;24A (UL), 30A (Max.) |
100240V~; 50-60Hz; 32A (Max.) |
| Power Capacity |
6.2 kW |
7.4 kW |
| O/P Rating |
Per Port |
NEMA
5-15RIEC C13 |
100240V~; 50-60Hz; 12A/15A |
100240V~; 50-60Hz; 10A |
NEMA
5-20R/IEC C19 |
100240V~; 50-60Hz; 12A/15A |
100240V~; 50-60Hz; 15A |
| Total |
100240V~; 50-60Hz; 24A(UL), 30A (Max.) |
100240V~; 50-60Hz; 30A (Max.) |
| Environment |
Operating Temp. |
0 - 50C |
0 - 40C |
| Storage Temp. |
-20 - 60C |
| Humidity |
080% RH Non-condensing |
| Physical Properties |
Power Cord Length |
1.6 m |
| Housing |
Metal |
| Weight |
6.30 kg |
Dimensions
( L x W x H ) |
177.50 x 6.60 x 4.40 cm |
