JG536A

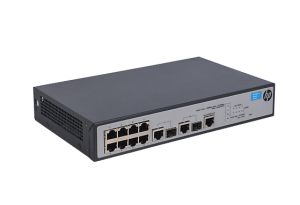

HP 1910-8 Switch
JG536A
HP 1910 switches are advanced smart managed fixed-configuration Gigabit and Fast Ethernet switches designed for small businesses in an easy-to-administer solution. The series has 8 gigabit models and 5 Fast Ethernet models.
The gigabit models are : 8-, 16-, 24-, and 48-port 10/100/1000 non-PoE models; and two 8-port and two 24-port 10/100/1000 PoE models. Gigabit models have additional true Gigabit SFP ports for fiber connectivity.
The Fast Ethernet models are : 8-. 24- and 48- 10/100 non-PoE models and 8-, 24- 10/100 PoE+ models.
The Fast Ethernet models come with additional 2 combo uplink ports . All HP 1910 models support rack mounting or desktop operation.
Customizable features include basic layer 2 features like VLANs and link aggregation as well as advanced features such as Layer 3 static routing, IPv6, ACLs and Spanning Tree Protocols. HP 1910 switches come with a lifetime warranty covering the unit, fans, and power supplies.
Features
Management
- Simple Web management: allows for easy management of the switch- even by nontechnical users- through an intuitive Web GUI; http and secure http (https) is supported
- Single IP management: enables management of up to four HP 1910 devices using a single Web interface; simplifies management of multiple devices
- Secure Web GUI: provides a secure, easy-to-use graphical interface for configuring the module via HTTPS
- SNMPv1, v2c, and v3: facilitates management of the switch, as the device can be discovered and monitored from an SNMP management station
- Complete session logging: provides detailed information for problem identification and resolution
Quality of Service (QoS)
- Broadcast control: allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic
- Rate limiting: sets per-port ingress enforced maximums and per-port, per-queue minimums
- Traffic prioritization: provides time-sensitive packets (like VoIP and video) with priority over other traffic based on DSCP or IEEE 802.1p classification; packets are mapped to four hardware queues for more effective
- throughput
Connectivity
- IPv6: IPv6 host: enables switches to be managed and deployed at the IPv6 network's edge. IPv6 routing: supports IPv6 static routes. MLD snooping: forwards IPv6 multicast traffic to the appropriate interface, preventing traffic flooding. IPv6 ACL/QoS: supports ACL and QoS for IPv6 network traffic.
- Auto-MDI/MDIX: adjusts automatically for straight-through or crossover cables on all 10/100/1000 ports
- IEEE 802.3X flow control: provides a flow throttling mechanism propagated through the network to prevent packet loss at a congested node
- IEEE 802.3af Power over Ethernet (PoE) ready: provides up to 15.4 W per port to power standards-compliant IP phones, wireless LAN access points, Web cameras, and more (all PoE models)
- IEEE 802.3at Power over Ethernet (PoE+): provides up to 30 W per port which allows support of the latest PoE+-capable devices such as IP phones, wireless access points, and security cameras, as well as any IEEE 802.3af-compliant end device; eliminates the cost of additional electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments. (Note: applies to all PoE models, except the two 24G-PoE models which support a pre-standard implementation of PoE+)
Security
- Advanced access control lists (ACLs): enables network traffic filtering and enhances network control using MAC- and IP-based ACLs; time-based ACLs allow for greater flexibility with managing network access
- Secure Sockets Layer (SSL): encrypts all HTTP traffic, allowing secure access to the browser-based management GUI in the switch
- IEEE 802.1X and RADIUS network logins: controls port-based access for authentication and accountability
- Automatic VLAN assignment: assigns users automatically to the appropriate VLAN based on their identity, location and time of day
- STP BPDU port protection: blocks Bridge Protocol Data Units (BPDUs) on ports that do not require BPDUs, preventing forged BPDU attacks
Specifications
| Ports |
8 RJ-45 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX);Duplex: half or full
2 SFP dual-personality 1000 Mbps ports (IEEE 802.3ab Type 1000BASE-T)
Supports a maximum of 8 autosensing 10/100 ports plus 2 1000BASE-X SFP ports, or a combination |
| Memory and Processor |
: MIPS @ 500 MHz, 32 MB flash, packet buffer size: 512 KB, 128 MB RAM |
| Latency |
100 Mb Latency: < 5 µs
1000 Mb Latency: < 5 µs |
| Throughput |
up to 4.2 Mpps (64-byte packets) |
| Routing/Switching capacity |
5.6 Gb/s |
| Management Features |
IMC - Intelligent Management Center
limited command-line interface
Web browser
SNMP Manager
IEEE 802.3 Ethernet MIB |
Power and Operating Requirements
| Power Consumption |
8W Maximum |
| Input Voltage |
100-240 VAC |
| Operating Temperature Range |
0 to 40 Degrees Celcius |
| Operating Humidity Range |
10 to 90% (noncondensing) |
Dimensions and weight
Minimum dimensions (W x D x H): 26.6 x 16.2 x 4.4 cm
Weight: 1 kg
What's included
Differentiator: 8-port Fast Ethernet advanced smart managed switch
What's in the box: (1) HP 1910-8 Switch; (1) localized power cord; (1) rackmount kit; user documentation; (4) rubber feet
Warranty: Lifetime, advance replacement, next business day, phone support
