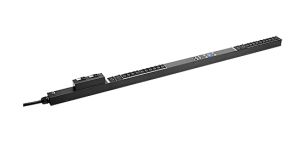

HP 7.3kVA 230 Volt 24 Outlet INTL Monitored Power Distribution Unit
(D9N48A)
Overview
HP Remote Monitored Power Distribution Units (PDU) provide rack level power monitoring over the network. With billing grade accuracy these PDUs are an excellent choice for data centers wanting to make the most of circuit capacity or for co-location facilities needing to precisely track power usage for billing purposes.
The low profile single piece design on these PDU's provides multiple mounting options and ease of access to rear devices for maintenance. They are designed for HP racks but will also work in a large variety of third party racks as well.
They can be installed on either side of the rack with outlets facing the back of the rack for easy access and improved clearance. Also for higher power density they can be installed side by side on both sides of the rack with the outlets facing in towards the center of the rack.
HP Remote Monitored PDUs are available in 1U/0U and vertical form factors in single and 3-phase models and are back by HP's limited 3-year warranty.
Features
Accurate, flexible, and easy to use and manage make this the right PDU for many environments.
- 99% billing grade accuracy including energy usage (kW/Hour) improves circuit utilization while providing all the information needed for billing.
- Slim design and multiple mounting options allow for mounting on both sides of the rack or mounting multiple PDUs on one side.
- Web base interface is easy to configure while settable thresholds provide customization of alerts to match the specific needs and policies of a datacenter.
- Local and LDAP authentication provide security whether installed in a single SMB rack or an entire enterprise datacenter.
Specifications
System features
Current, maximum: 32A, 220-240V
Electrical input connection: (Attached) IEC 60309 332P6
Electrical output connections: (20) IEC 60320 C13; (4) IEC 60320 C19
Power capacity: 7.3kVA
Dimensions and weight
Minimum dimensions (W x D x H): 5.2 x 4.55 x 142.54 cm
Weight: 4.77 kg
What's included
What's in the box: PDU, mounting buttons, CTO shipping bracket, 6 foot Cat5 cable, 6 foot RJ45-DB9 cable, 30 cable retention tie wraps, read me first card, warranty card
