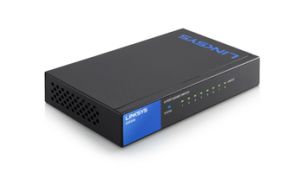

Linksys LGS108 Gigabit Switch - 8-Port 10/100/1000 Switch, Metal Enclosure, Wallmount

IMG 1 of 1
No Longer Available
Part Number:
312627
(?) Brand:
Linksys Web Site
Manuf No:
LGS108-AU
LGS108AU
Shipping Weight:
1.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
LGS108AU, LGS108-AU, 745883632152

LINKSYS SWITCH LGS108
8-Port Desktop Gigabit Switch


OVERVIEW

  • Wired connection speed up to 1000 Mbps
  • 8 Gigabit Ethernet auto-sensing ports
  • Power-saving features
  • Easy plug & play connection

Features


GIGABIT PERFORMANCE

The unmanaged switch offers Gigabit speeds to minimize transfer times and greatly enhance the ability to stream high-bandwidth files to connected devices without interference.


PLUG & PLAY CONVENIENCE

The Linksys unmanaged switch offers a quick and easy solution to extend your office network with plug & play installation.


POWER SAVING FEATURES

Power saving features include auto power-down to disable unused ports, smart power for short cable runs, and a port status switch to control LED lights.

Specifications

Model: LGS108
Standards: IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3az
Number of Ports: 8 Gigabit
Speed: 10/100/1000
Bandwidth: 16 Gbps (non-blocking)
Performance: Full line rate and forwarding rate of 64B frame at:
1.488Mpps for 1000M port
0.1488Mpps for 100M port
0.01488Mpps for 10M port
Status LEDs: Link and activity indicators
Power Supply: External
AC Power: 100-240VAC, 50/60Hz, 12VDC or 5VDC
Power Saving: Cable connected detection, cable length detection, sleep mode
Power Consumption in
Iddle/Use (100% Traffic):		 1.07W /3.53W
Fan: None
Enclosure Type: Metal
Unit Dimensions: 154 x 85 x 26 mm (6.06 x 3.34 x 1.02 in.)
Unit Weight: 0.340 kg (0.75 lbs)
Temperature (Operating): 040C (32104F)
Temperature (Storing): -2070C (-4158F)
Humidity (Operating): 1090% (non-condensing)
Humidity (Storing): 1090% (non-condensing)
Certifications: FCC Class B, CE
Mounting: Wall mount
Minimum System
Requirements: 		Connected devices need Ethernet connectivity and Ethernet cables
Warranty and Support: Lifetime limited warranty
Package Contents: Linksys LGS108 8-Port Gigabit Ethernet Switch, Power Adapter

No additional files, specification sheets, guides or documentation found for product.

Warranty: 2 year return to base

Full manufacturers warranty details are available at the manufacturers (Linksys) web site.
