All stock codes associated to this product
LGS124AU, LGS124-AU, 745883632282

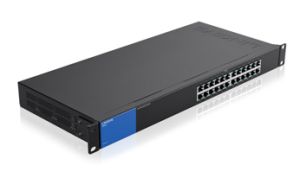

LINKSYS SWITCH LGS124
24-Port Gigabit Switch
OVERVIEW
- Wired connection speed up to 1000 Mbps
- 24 Gigabit Ethernet auto-sensing ports
- Quality of Service (QoS) traffic prioritization
- Power-saving features
- Easy plug & play connection
FEATURES
GIGABIT PERFORMANCE
The unmanaged switch offers Gigabit speeds to minimize transfer times and greatly enhance the ability to stream high-bandwidth files to connected devices without interference.
PLUG & PLAY CONVENIENCE
The Linksys unmanaged switch offers a quick and easy solution to extend your office network with plug & play installation.
QUALITY OF SERVICE (QOS) TRAFFIC PRIORITIZATION
QoS traffic prioritization provides the ability to give precedence to particular devices or activities to ensure mission critical data throughput is maintained regardless of network congestion. Auto-sensing ports automatically optimize speed for each connected device.
POWER SAVING FEATURES
Power saving features include auto power-down to disable unused ports, smart power for short cable runs, and a port status switch to control LED lights.
Specifications
| Model: |
LGS124 |
| Standards: |
IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3az |
| Number of Ports: |
24 Gigabit |
| Speed: |
10/100/1000 |
| Bandwidth: |
48 Gbps (non-blocking) |
| Performance: |
Full line rate and forwarding rate of 64B frame at:
1.488Mpps for 1000M port
0.1488Mpps for 100M port
0.01488Mpps for 10M port |
| Quality of Service: |
802.1p and DSCP |
| Status LEDs: |
Link, speed, and activity indicators |
| Power Supply: |
Internal |
| Power: |
100240 VAC, 50/60 Hz |
| Power Saving: |
Cable connected detection Sleep mode |
Power Consumption in
Idle/ Use (100% Traffic): |
4.39 W / 14.16 W |
| Fan: |
None |
| Enclosure Type: |
Metal |
| Unit Dimensions: |
440 x 200 x 44 mm (171.6 x 78 x 17.16 in.) |
| Unit Weight: |
2.374 kg (5.17 lbs) |
| Temperature (Operating): |
050C (32122F) |
| Temperature (Storing): |
-2070C (-4158F) |
| Humidity (Operating): |
1090% (non-condensing) |
| Humidity (Storing): |
1090% (non-condensing) |
| Certifications: |
FCC Class A, CE |
| Mounting: |
Rack mount |
| Minimum System Requirements: |
Connected devices need Ethernet connectivity and Ethernet cables |
| Warranty and Support: |
Lifetime limited warranty |
| Package Contents: |
Linksys LGS124 24-Port Gigabit Ethernet Switch, Power Cord, Quick Start Guide |
| MAC Address Table: |
8K |
