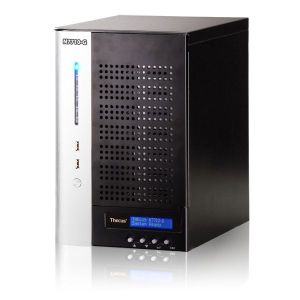

Thecus N7710-G Network Storage Device





High-end data centers often need a level of speed that today’s average network cannot provide.The 10GbE solution offered by the N7710-G models makes them ready for the next step in network evolution straight out of the box.





Thecus’s AES 256-bit RAID volume encryption tool allows users to fully encrypt their entire RAID volume, defending essential data even in instances of theft.





Data Guard backup solution is the ultimate software as it provides both local and remote parts. Currently, data is backed up across RAID volumes, external USB drives, and eSATA. In addition, Data Guard uses innovative technology to sync data across the network to other NAS and servers. More importantly, Thecus® Data Guard is the total backup solution which makes managing NAS user-friendly and convenient.





NAS data can now be burned directly to CD, DVD, and Blu-ray discs with Data Burn, this hassle-free module makes burning data to a disk effortless. In addition, burning ISO image file is also supported. Whether you’re managing audio, media or essential files; Data Burn copies information fast while significantly reducing waiting time. The process of burning file to disk is now easy and smooth with Data Burn module.





Link aggregation can sustain multiple network connections and provide redundancy in case one of the links fails. Thecus NAS supports 7 modes which provide Load Balance, Failover, 802.3ad, Balance-XOR, Balance-TLB, and Balance-ALB, Broadcast.





Thecus’ innovative hardware helps prevent failures. But sometimes you have to protect the NAS against itself. Adding an antivirus to the already comprehensive software bundle will provide the necessary software protection by scanning the files on your NAS and defending it against possible threats. McAfee is the world’s largest dedicated security technology company and shares Thecus’ spirit of dedication and quality. By establishing a strong partnership with them, Thecus will allow users the benefit of McAfee’s powerful software on their NAS entirely for free.





The private and public clouds meet with Thecus’ new DropBox, Amazon S3 and ElephantDrive cloud backup functionality! Guard your data with RAID at home and an additional level of protection in the Cloud. Just drag and drop files into the folder on your NAS and access them on any computer or mobile device with DropBox, Amazon S3 or ElephantDrive.






Make your NAS into the ultimate multimedia hub! The N7710-G’s HDMI output allows you to connect your NAS directly to your TV for device management.





The next generation of connectivity is here with speeds 10x faster than USB 2.0. Whether connecting digital cameras and smart phones, backing up large external hard drives, or extending the capacity of your NAS, USB 3.0 will make sure it's done in no time at up to 5 Gbit/s. Backwards compatibility adds the connectivity of a world full of USB 2.0 and USB 1.1 devices to get the best combination of speed and universal access.





Thecus brings the best to the table with Acronis’s advanced backup software. Back up all your data with One-click Protection or pick and choose only your most important files. Acronis sports a slick interface, user-friendly design, and comprehensive features to keep your data safe.





When it comes to data management, Thecus NAS truly let you have it your way. Create multiple RAID volumes each supporting different RAID modes including RAID 0, 1, 5, 6, 10, 50 and JBOD for your own balance of performance and data protection. Should a hard drive malfunction occur, changing one is simple thanks to online RAID migration and expansion, hot spare, and auto rebuild.






Support for multiple file systems including EXT3, EXT4, and XFS, gives Thecus NAS flexibility to handle many different types of environments. Users can simultaneously use different file systems across multiple RAID volumes to get the best of each one.





Get the most out of your storage space with the extreme speed of iSCSI and the efficiency of iSCSI thin provisioning. Connect through iSCSI for the fastest data transfer speeds available and make wasted disk space a thing of the past with thin provisioning's flexible storage functionality.





In the modern world, nothing is as important as reaching your data from anywhere. With T-OnTheGo and the T-Dashboard, you can manage your NAS, and upload to and download/stream from your NAS using an iOS or Android device on the go





Backing up your data is very necessary, and everyone has specific needs when it comes to storage. Thecus’s Rsync functionality gives users great flexibility with remote backup capability, a flexible scheduler, and the stability of Linux-based transfer.





Divide the massive storage of a Thecus NAS among multiple users. Whether there are two users or 100, User Quota make it easy to divvy up and manage disk space.





Intel  Pentium G850 Dual Core CPU (2.9GHz)
4GB DDR3 ECC RAM
HDMI and VGA ports
2x USB 3.0 ports
2x Gb Ethernet ports
1x 10Gb Ethernet port
2x front and 4x back USB 2.0 ports USB 2.0





Enterprise level performance for multi-client environments
RAID 0 to 50 and JBOD supported
AES 256-bit RAID volume encryption
VMware V5.5 supported
iSCSI Thin Provisioning





Free Acronis True Image
Free McAfee Antivirus
Over 90 official and third-party applications



The latest additions to the Thecus line offer significant improvements in performance thanks to their high quality processor, the Intel  Pentium  G850 Dual Core CPU, and 10GbE technology.Along with a 75% faster (yet cooler running) processor, newly incorporated multimedia ports (HDMI and VGA), and the inclusion of USB 3.0 ports, the new N7710-G and N8810U-G also bring the wealth of the Thecus App Center to SMB businesses. With their power and connectivity, both units allow many users to enjoy the endless features of the growing list of over 90 official and third-party applications. But how does all of this help your organization? Lets take a closer look at the units key capabilities.





At the heart of NAS development has been their ability to store and safeguard data. With RAID 0, 1, 5, 6, 10, and JBOD available, users can choose their perfect balance between performance and redundancy. Given their ability to host numerous drives, both NAS can benefit from the balanced strengths of RAID 50, while the N8810U-G can even employ the enhanced reliability of RAID 60. And to ensure that your data is transmitted and stored corruption-free, both units also come equipped with advanced ECC RAM, which is able to detect and correct single-bit errors an essential feature for scientific and financial computing.



But what about external threats to your data? Thanks to free copies of Acronis True Image and McAfee Antivirus, your data can easily (and even automatically) be backed up to local and remote media all the while remaining spotless thanks to McAfees advanced scan algorithms. Also, Thecuss AES 256-bit RAID volume encryption tool allows users to fully encrypt their entire RAID volume, defending essential data even in instances of theft.



Without knowing what tomorrow might hold, you want to be sure that no matter what your costs are low and your performance high. With the help of the User Quota feature and iSCSI Thin Provisioning, you can rest assured that your storage is shared efficiently amongst all users and that wastage is a thing of the past. And with the N7710-G and N8810U-Gs VMware V5.5 certification, you can rest assured that your NAS is compatible with the latest virtualization technology available.





Being prepared for a changing business landscape means being able to adapt, and with the inclusion of an HDMI output port and 10GbE port,your NAS will be ready to connect directly to a variety of screens and projectors while delivering network speeds up to 10x faster than regular gigabit connections.



In fact, the 10GbE solution offered by the N7710-G and N8810U-G models makes them ready for the next step in network evolution straight out of the box. And with the addition of Data Guard for local and remote backup to other NAS, and Data Burn for permanent backup to CD, DVD, and even Blu-Ray discs, you can ensure that your datas ready for whatever the future can throw at it!



Item	Spec
Processor	Intel Pentium G850 (2.9GHz Dual Core)
System Memory	4GB DDR3 ECC Memory
LAN Interface (PCI-e)	RJ-45x2: Intel 82574L 10/100/1000 BASE-TX Auto MDI/MDI-X Supports 1 x Single-Port 10GBASE-T Ethernet Network Card WOL supported
USB Interface	USB 2.0 host port x6 (front x2, back x4) USB 3.0 host port x2 (back x2)
LCM Module	Displays system status and information
USB DOM	2GB
HDMI Output	HDMI port (back x1)
VGA Output	VGA port (back x1)
Disk Interface	7 x SATA for internal
Power Supply	300W Power Supply
Bundled 10GbE Network Card	1 x C10GTR Installed
PCI-e x8 Slot	1
Thermal/Fan Control	Thermal sensor on processor temperature
System Clock	Battery-backed up system clock
Power Management	Auto power on after shutdown due to power loss
Buzzer	Adjustable frequency alarm
Buttons	Power button LCM button (ENT, ESC, UP, DOWN)
Environment	Temperature: 5C to 40C Humidity: 0 ~ 80 % R.H. (Non-condensing)
Chassis	Tower base
Dimensions (HxWxD)	320 x 210 x 270 (mm)/12.59 x 8.27 x 10.63 (in)
Weight	10.42 kgs/22.97 lb
Certificates	CE/FCC/C-Tick/VCCI/BSMI RoHS WEEE VMware, Citrix

RAID
RAID Modes	RAID 0, 1, 5, 6, 10, 50 and JBOD
Auto-rebuild	Supported
Hot-swap	Supported
Hot Spare	Supported
RAID Level Migration	Supported
RAID Expansion	Supported
RAID Volume Encryption	AES256bit
Disk
Power Management	Available spin-down while idle setting
Bad Block Scanning	Supported
SMART Info	Supported
SMART Test	Supported
Disk Roaming	Supports volume-based roaming to other Thecus NAS (Require ThecusOS 5 64 bit )
Network
Configuration	Fixed IP address, dynamic IP address
Transport Protocols	TCP/IP/AppleTalk
File Protocols	SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP
Link Aggregation	Load balance, Failover, 802.3ad, Balance-XOR, Balance-TLB, Balance-ALB, Broadcast
TCP/IP	IPV6 & IPV4
DDNS	Supported
SSH	Supported
UPnP	Supported
UPnP Port forwarding	Supported
System status
System Monitor	Monitoring CPU, memory, network utilization and protocols access user count
Syslog Management	Send syslog to assigned location Act as syslog server to receive log info from other systems
Data Access
Client OS Support	Windows XP and after Windows Server 2003 and after UNIX/Linux Mac OS X
FTP	Built-in FTP server with bandwidth control
Secure FTP	Built-in secure FTP server with bandwidth control
TFTP	Users can download and upload files with TFTP programs
Download Manager	BitTorrent downloads (via Transmission Module) NZB download (via NZB module)
Printer Server (IPP)	Supports USB printers Supports a wide range of IPP printers Client can manage print tasks (list/delete) via web user interface
Data Backup
Client Incremental Data Backup	Acronis True image (OEM version)
Client System Disaster Recovery	Acronis True image (OEM version)
Client Side Backup Software	Thecus Backup Utility (Windows/Mac OS X)
Data Burn	Create files to ISO image and burn to optical disc Create files to ISO image Read ISO image from optical disc and write to NAS
Mac OS X Time Machine	Supported
Data Guard	Remote Backup/Local Backup
Block Level Access
iSCSI Target/Initiator	Supports Microsoft/Mac OS X/Linux initiators and Thecus NAS targets
iSCSI Thin Provisioning	Supported
MPIO	Supported
MCS	Supported
Clustering	Supported
SCSI3 Persistent Group Reservation	Supported
Power Management
Scheduled Power On/Off	Supported
Volume Management
Multiple RAID	Supported
Multiple File System Selectable	EXT3/EXT4/XFS
Multimedia Support
iTunes Server	Supports AAC, MP3 w/ID3 tag and WAV
Piczza! Photo Server (via module)	Supports GIF, JPG (JPEG), BMP, PNG Support EXIF display Support slide show
Media Server	Support uPnP AV streaming protocol (via Module)
User Authentication
Local User	Supports built-in user accounts
Local Group	Supports built-in user groups
Windows ADS	Supported
LDAP	Supported
Access Guard	Supports Black & White list/IP Filter
Cloud Backup
DropBox	Supported (via module)
ElephantDriver	Supported (via module)
Amazon S3	Supported
File System
Type	Journaling File System
Language Support	Unicode Support
Authorization (ACL)	Read, write, or deny privileges to individual users or groups in folders and sub-folders
User Quota	Supported
Administration
User Interface	Web-based user interface supports English, Traditional Chinese, Simplified Chinese, Japanese, Korean, French, German, Italian, Spanish, Russian, Polish and Portuguese
Utility Program	MS Windows Setup Wizard Supports Windows XP and after Mac OS X Setup Wizard
Email Notifications	Sends system messages via email to the system administrator
SNMP Trap	System information trap out
Mobile Applications (iOS/Android)
T-Dashboard	Mobile monitoring and administration (via module)
T-OnTheGo	Upload, download and stream multimedia
Data Security
Virus Scan	Supports McAfee (via module)
Capacity Expansion
Stackable	Can extend for 5 additional iSCSI volumes from other Thecus NAS
Others
Recycle Bin	Supported
Web Disk	Supported(via module)
Web Server	Supported(via module)
ISO Mount	Supported
IP Cam Surveillance	Supports up to 10 IP cameras (via module)
Auto Module Installation	Thecuss module server automatically provides the latest modules and updates through the user interface.
Local Display	X-Window via HDMI output
