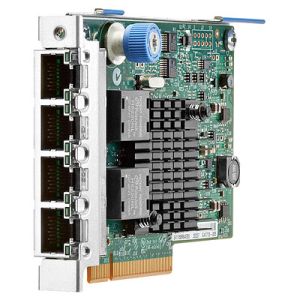

HP Ethernet 1Gb 4-port 366FLR Adapter
(665240-B21)
Description
The HP Ethernet 1Gb 4-port 366FLR features the next generation of Ethernet integration offering in a single chip solution on a FlexibleLOM form factor, further reducing power requirements for 4 ports of 1Gb Ethernet. The HP 366FLR is the PCI Express 2.1 x4 based on the latest Intel® Ethernet Controller I350 designed for use with select HP ProLiant Gen8 rack and scalable servers. Its FlexibleLOM form factor means customer now have choice to meet growing infrastructure needs. The HP 366FLR adapter supports advanced features such as Large Send offload capability, TCP checksum and segmentation, VLAN tagging, MSI-X, Jumbo frames, IEEE 1588, and virtualization features such as Intel Virtualization Technology for Connectivity, VMware NetQueue, Microsoft VMQ and WOL, and power management technologies like Energy Efficient Ethernet.
- 4-port 1Gb Ethernet PCIe Gen 2.1, x4 lane adapter designed for maximum network performance.
SR-IOV ready virtualization capabilities with support for VMware NetQueue and Microsoft VMQ , Intel VT-c helps meet the performance demands of consolidated virtual workloads. New I/O technologies reduce system power, increases I/O performance and reduces I/O latency. Supports Precision Time Stamping protocol ( IEEE 1588 and 802.1AS). Supports Wake-on-LAN (WOL) at 1Gb, has PXE , MSI-X support, Teaming, IPv6. Adapter supports HP Sea of Sensors 3D Technology.
| Product dimensions (W x D x H) |
1.1 x 10.54 x 3.65 in |
| Weight ( Imperial ) |
3 lb |
| Weight ( Metric ) |
1.36 kg |
|
Interfaces/Ports
| Host Interface |
PCI Express x4 |
| Total Number of Ports |
4 |
| Network (RJ-45) |
Yes |
| USB |
No |
| Serial Port |
No |
| Ethernet AUI |
No |
| XJACK |
No |
| PoE (RJ-45) Port |
No |
| Number of Network (RJ-45) Ports |
4 |
|
Media & Performance
| Twisted Pair Cable Standard |
Category 5e |
|
Network & Communication
| Network Technology |
10/100/1000Base-T |
|
Physical Characteristics
| Form Factor |
Plug-in Card |
| Height |
3.7" |
| Width |
1.1" |
| Weight (Approximate) |
3 lb |
| Depth |
10.5" |
|
Miscellaneous
| Device Supported |
PC |
| Certifications & Standards |
-
FCC Part 15 Class A
-
ICES=--3, Issue 4
IEEE Standards:
-
802.3
-
802.3ab
-
802.3u
-
802.3x
-
802.3ad
-
802.1q
-
802.3az
-
1588
-
802.1as
Safety:
-
UL Mark
-
CE Mark
-
EN 60590-1
|
| Platform Supported |
PC |
| Green Compliant |
Yes |
| Green Compliance Certificate/Authority |
RoHS-6
WEEE |
|
