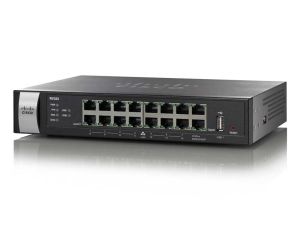

Cisco RV325 Dual Gigabit WAN VPN Router

No Longer Available

Part Number:

313656

(?) Brand:

Cisco Web Site

Manuf No:

RV325-K9-AU
RV325K9AU

Shipping Weight:

5 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Finance Images & Video

All stock codes associated to this product

RV325K9AU, RV325-K9-AU, 2563837, 882658325052, 882658479243

Cisco RV325 Dual Gigabit WAN VPN Router

Performance, Flexibility, Security in One Device

The Cisco RV325 Dual Gigabit WAN VPN Router is a perfect choice for companies that need a combination of performance, security, reliability, and flexibility. You can connect its dual Gigabit Ethernet WAN ports to one service provider, for high-performance networking with load balancing.

Features and Capabilities

The Cisco RV325 Dual Gigabit WAN VPN Router offers:

Dual Gigabit Ethernet WAN ports for load balancing and business continuity
Built-in 14-port Gigabit Ethernet switch
Strong security with proven stateful packet inspection (SPI) firewall and hardware encryption
High-capacity, high-performance SSL and IP Security (IPsec) VPN capabilities
Intuitive, browser-based device manager and setup wizards

Benefits of the Cisco RV325

High performance: Easily manages large files and concurrent users to keep employees productive
Simple, highly secure access: Connects multiple locations and remote workers using VPN
Easy to use: Deploys directly out of the box; setup wizards reduce configuration time to minutes
Flexible: USB ports use 3G and 4G modems for broadband failover

Product Specifications

Table 1 lists the product specifications for the Cisco RV320 and RV325.

Table 1. Product Specifications


Description	Specification
Dual WAN	Dual Gigabit Ethernet Ports Failover Load balancing
Standards	802.3, 802.3u IPv4 (RFC 791) IPv6 (RFC 2460)
WAN connectivity	Dynamic Host Configuration Protocol (DHCP) server, DHCP client, DHCP relay agent Static IP Point-to-Point Protocol over Ethernet (PPPoE) Point-to-Point Tunneling Protocol (PPTP) Transparent bridge DNS relay, Dynamic DNS (DynDNS, 3322) IPv6
Routing protocols	Static Routing Information Protocol (RIP) v1, v2, and RIP for IPv6 (RIPng)
Network Address Translation (NAT)	Port Address Translation (PAT) One-to-one NAT NAT traversal
Protocol binding	Protocols can be bound to a specific WAN port for load balancing
Network edge (DMZ)	DMZ port DMZ host
Dual USB ports	3G/4G modem support
Security
Firewall	SPI firewall Denial of service (DoS), ping of death, SYN flood, land attack, IP spoofing, email alert for hackerattack
Access rules	Schedule-based access rules Up to 50 entries
Port forwarding	Up to 30 entries
Port triggering	Up to 30 entries
Blocking	Java, cookies, ActiveX, HTTP proxy
Content filtering	Static URL blocking or keyword blocking
Secure management	HTTPS web access to device manager Username/password complexity enforcement
VLAN	802.1Q VLAN RV320: 7 VLANs supported RV325: 17 VLANs supported
VPN
IP Security (IPsec)	25 IPsec site-to-site tunnels for branch office connectivity 25 IPsec VPN tunnels via Cisco VPN client and third-party clients such as "TheGreenBow" for remote access VPN connectivity
SSL VPN	10 SSL VPN tunnels for remote client access
PPTP	10 PPTP tunnels for remote access
Encryption	Data Encryption Standard (DES) Triple Data Encryption Standard (3DES) Advanced Encryption Standard (AES) encryption: AES-128, AES-192, AES-256
Authentication	MD5/SHA1 authentication
IPsec NAT traversal	Supported for gateway-to-gateway and client-to-gateway tunnels
VPN pass-through	PPTP, Layer 2 Tunneling Protocol (L2TP), IPsec
Advanced VPN	Dead peer detection (DPD) Split DNS VPN backup Internet Key Exchange (IKE) with certificate
Quality of Service (QoS)
Prioritization types	Application-based priority on WAN port
Service-based QoS	Supports rate control or priority
Rate control	Upstream/downstream bandwidth can be configured per service
Priority	Each service can be mapped to one of 3 priority levels
Performance
NAT throughput	900 Mbps
IPsec VPN throughput	100 Mbps
SSL VPN throughput	20 Mbps
Concurrent connections	RV320: 20,000 RV325: 40,000
Configuration
Web user interface	Simple browser-based device manager (HTTP/HTTPS)
Management
Management protocols	Web browser (HTTP/HTTPS) Simple Network Management Protocol (SNMP) v1, v2c, and v3 Bonjour
Event logging	Local log Syslog Email alert Short Message Service (SMS)
Upgradability	Firmware upgradable through web browser Imported/exported configuration file

System Specifications

Table 2 lists the system specifications for the Cisco RV320 and RV325.

Table 2. System Specifications


Description	Specification
Product dimensions (W x H x D)	RV320: 206 x 132 x 44 mm (8.1 x 5.2 x 1.7 in) RV325: 243 x 177 x 45 mm (9.6 x 7 x 1.8 in)
Ports	RV320: Four 10/100/1000 RJ-45 ports, one 10/100/1000 RJ-45 Internet port, one 10/100/1000 RJ-45 DMZ/Internet port RV325: Fourteen 10/100/1000 RJ-45 ports, one 10/100/1000 RJ-45 Internet port, one 10/100/1000 RJ-45 DMZ/Internet port
Power supply	RV320: 12V 1.5A RV325: 12V 2A
Certification	FCC Class B, CE Class B, UL, cUL, CB, CCC, BSMI, KC, Anatel, GOST
Operating temperature	0 to 40C (32 to 104F)
Storage temperature	0 to 70C (32 to 158F)
Operating humidity	10% to 85% noncondensing
Storage humidity	5% to 90% noncondensing

Warranty Information

This Cisco Small Business product comes with a limited lifetime hardware warranty. Product warranty terms and other information applicable to Cisco products are available at www.cisco.com/go/warranty.

Cisco Small Business Support Service

The Small Business Support Service is a device-level service agreement that expands and enhances the technical support exclusively for Cisco Small Business Products. Buying the service extends phone support to three years; adds next-business-day, advance product replacement; and expands Cisco phone support from eight hours, five days a week to 24-hours, seven days a week.

Ordering Information

To place an order, visit the Cisco Ordering Home Page.

Table 3. Ordering Information


Product Name	Part Number	Country - Power Plug	Service Plan	Service Part Number
RV320 Dual WAN VPN Router	RV320-K9-NA	North America	Cisco Small Business SupportService, 3YR, 24x7 phone support, next-business-day advance product replacement	CON-SBS-SVC2
	RV320-K9-G5	EU, Singapore, India, Thailand, Taiwan
	RV320-K9-AU	Australia
	RV320-K9-CN	China
	RV320-K9-AR	Argentina
RV325 Dual WAN VPN Router	RV325-K9-NA	North America
	RV325-K9-G5	EU, Singapore, India, Thailand, Taiwan
	RV325-K9-AU	Australia
	RV325-K9-CN	China
	RV325-K9-AR	Argentina

No additional files, specification sheets, guides or documentation found for product.

Warranty: Limited lifetime

Full manufacturers warranty details are available at the manufacturers (Cisco) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
