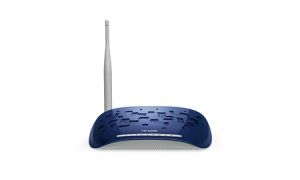

150Mbps Wireless N ADSL2+ Modem Router
TD-W8950N
Highlights:
- All-in-One Device: ADSL2+ Modem, NAT Router, 4- Port Switch and Wireless N Access Point
- Wireless N speed up to 150Mbps, great for online gaming, Internet call and video streaming
- Ethernet WAN (EWAN) offers another broadband connectivity option for connecting to Cable, VDSL or Fiber modems
- Easy one-touch wireless security encryption with the Quick Security Setup button
Overview
What This Product Does
TP-LINKs TD-W8950N 150Mbps Wireless N ADSL2+ Modem Router is an incredibly robust all-in-one device allowing users to access high-speed internet connection via ADSL or Ethernet WAN (EWAN) using its interchangeable LAN/WAN port and share it wirelessly at 150Mbps wireless 802.11n speeds. Using the TD-W8950N, you can easily create a secure and high-speed wireless network and enjoy more kinds of bandwidth consuming applications like HD video streaming wirelessly which can not be accommodated by 11g products, from anywhere in your entire home or even the yard.
All-in-One Device - Clear up your desktop!
The TD-W8950N does the work of several networking devices packed into one sleek device. With an ADSL2+ modem, NAT router, switch and 150Mbps wireless access point, this device eliminates the need to purchase multiple devices to access and share a high-speed wireless Internet connection.

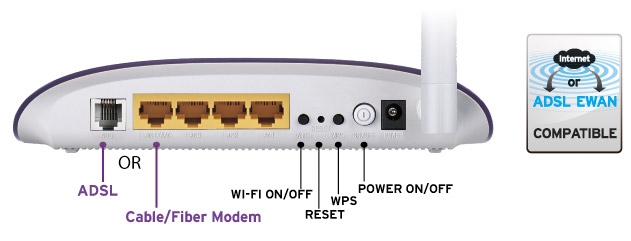

Interchangeable LAN/WAN Port - Versatile Connectivity
The TD-W8950N supports ADSL or Ethernet WAN connections (EWAN) that allow users to have the flexibility of different Internet connections among ADSL, cable or fiber modem using its interchangeable LAN/WAN port. This unique feature makes it easier when users need to change to fiber or cable services when necessary.
150Mbps Wireless - More Power to You
TD-W8950Nis a high speed solution that complies with wireless 802.11b/g, and is compatible with 802.11n standard. Based on N technology and with CCA automatically avoiding channel conflicts, TD-W8950N provide speeds of up to 150Mbps, 9X the speed and 4x the range of traditional 11g products, bordering on conventional 11N and surpassing 11G performance enabling high bandwidth-consuming application.
WPS - One Button Security
The TD-W8950N features Wi-Fi Protected Setup (WPS) that allows users to almost instantly set up their security simply by pressing the "WPS" button automatically establishing a WPA2 secure connection, which is more secure compared with WEP encryptions. Not only is this faster than normal security setups but more convenient in that you dont need to remember a password!

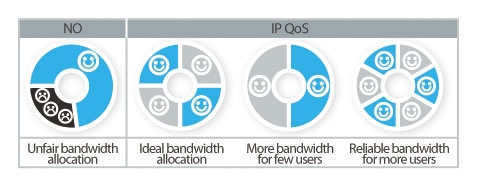

IP QoS Efficient Bandwidth Control
IP QoS allows network administrators to allot a specific amount of available bandwidth to each network connected device simply by identifying it by its IP address, ensuring that those devices with critical tasks always have enough bandwidth and preventing any one device from hoarding bandwidth from the rest of the users on the network.
Easy Setup
The device comes with a CD with an Easy Setup Assistant that helps you step by step to complete your Internet connection, wireless network settings and security configurations. This feature allows even novice users to set up the router products without sacrificing any key features, just play the AUTO-RUN CD bundled to have your network set up quickly & easily.
IPv6 Ready
This device supports IPv6, which is foundational to the next generation Internet and enables a range of new services and improves user experiences.
Features
- All-in-One: ADSL2+ modem, NAT router, 4-port switch and wireless N access point in one device provides an one-stop networking solution
- Ethernet WAN (EWAN) offers another broadband connectivity option for connecting to Cable/VDSL/Fiber modems
- Wireless N speed up to 150Mbps
- Parental Control allows parents or administrators to establish restricted access policy for children or staff
- Bandwidth Control allows administrators to determine how much bandwidth is allotted to each PC
- Easy Setup Assistant with multi-language support provides quick & hassle free installation
- Wi-Fi On/Off button allows users to simply turn their wireless radio on or off
- WPS button allows users to easily setup a WPA encrypted secure connection
- 6000V Lightning Protection helps your device to avoid the damage of tough thunderstorms
- Port VLAN binds specific LAN ports to PVCs for an enjoyable IPTV experience
Specifications
| HARDWARE FEATURES |
| Interface |
1 10/100Mbps RJ45 WAN/LAN Port
3 10/100Mbps RJ45 LAN Ports
1 RJ11 Port |
| Button |
1 Power On/Off Switch, 1 WPS Button |
| External Power Supply |
9VDC/0.85A |
| IEEE Standards |
IEEE 802.3, 802.3u |
| ADSL Standards |
Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1 (G.DMT), ITU-T G.992.2 (G.Lite) |
| ADSL2 Standards |
ITU-T G.992.3 (G.dmt.bis), ITU-T G.992.4 (G.lite.bis) |
| ADSL2+ Standards |
ITU-T G.992.5 |
| Dimensions ( W x D x H ) |
7.1 x 4.9 x 1.4 in. (181 x 125 x 36mm) |
| Antenna Type |
Omni directional, Fixed |
| Antenna Gain |
5dBi |
| WIRELESS FEATURES |
| Wireless Standards |
IEEE 802.11n, 802.11g, 802.11b |
| Frequency |
2.400-2.4835GHz |
| EIRP |
<20dBm (EIRP) |
| Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security |
64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption, Wireless MAC Filtering |
| SOFTWARE FEATURES |
| Quality of Service |
QoS Remarking based on IPP/ToS, DSCP, 802.1p
ATM QoS, Traffic Control (IP QoS) |
| Port Forwarding |
Virtual server, DMZ, ACL (Access Control List) |
| VPN Pass-Through |
PPTP, L2TP, IPSec Passthrough |
| ATM/PPP Protocols |
ATM Forum UNI3.1/4.0,
PPP over ATM (RFC 2364),
PPP over Ethernet (RFC2516),
IPoA (RFC1577/2225),
MER\IPoE (RFC 1483 Routed)
Bridge (RFC1483 Bridge)
PVC - Up to 8 PVCs |
| Advanced Features |
Parental Control
Traffic Shaping( ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;
Dynamic Host Configuration Protocol (DHCP), DHCP Relay, DHCP Reservation;
Network Address Translation (NAT)
Port Mapping (Grouping)
VLAN, Static Routing, RIP v1/v2 (optional);
DNS Relay, DDNS, IGMP Snooping V1/2, IGMP Multicast, UPnP |
| Security |
NAT Firewall, SPI Firewall, MAC / IP / URL Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death |
| Management |
Web-Based Configuration (HTTP), Remote Management,
Command Line Interface,
SSL for TR-069, SNMP v1/2c, Web Based Firmware Upgrade, TR-069, Diagnostic Tools |
| IPv6 |
IPv6 and IPv4 dual stack |
| OTHERS |
| Certification |
CE, RoHS |
| Package Contents |
TD-W8950N
External Splitter
RJ-11 Telephone Cable
RJ-45 Ethernet Cable
Quick Installation Guide
Resource CD
Power Adapter |
| System Requirements |
Windows 8/7/Vista/XP, Linux, Mac OS |
| Environment |
Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
