All stock codes associated to this product
SED100MSC(10km), SED-100MSC(10km), SED100SSC10, SED-100SSC-10

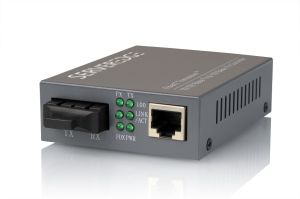

Serveredge 10/100Base-TX to 100Base-FX Singlemode SC Fibre Media Converter (10KM)
Product Description
The Serveredge SED-100SSC-10 fibre media converter allows you to connect your copper infrastructure to the fibre channel and vice versa.
The built-in 10/100 switch enables the fiber cable connection to operate at 100 Mbps connected to either a 10BaseT or a 100BaseTX network, while remaining completely 100BaseFX standard-compliant.
Fiber connection can also operate in full duplex mode whether the RJ-45 port is connected to a full duplex switch or a half duplex hub, with the built-in switch providing the network segmentation that permits the maximum fiber distance. Each Media Converter provides a 10/100BaseT/TX auto-negotiating RJ-45 twisted-pair connector port featuring store-and-forward switching architecture. Auto-MDIX capability on the twisted-pair port allows for convenient connections.
Product Specification
PERFORMANCE
Latency: < 4.2 µs (LIFO)
Throughput @ 100Base: 148,809 pps (64-byte packets)
Speed:
100BaseTX: 100/200 Mbps for half/full duplex
10BaseT: 10/20 Mbps for half/full duplex
Switching Method: Store-and-Forward
Maximum MAC Addresses: 1,024 entries
Memory: 256 KB
FIBER INTERFACE, SINGLEMODE MODELS
Type: MQW Laser
Wavelength: 1300 nm nominal (1260 nm maximum, 1360 nm minimum)
Maximum Output Power: - 7.0 dBm
Minimum Output Power: - 15.0 dBm
Sensitivity: -34.0 dBm
Maximum Input Power: - 7.0 dBm
Link Power Budget: 19.0 dB
PHYSICAL CHARACTERISTICS
Case dimensions: 110mm x 81mm x 23mm
Weight: 150 grams
ENVIRONMENTAL CHARACTERISTICS
Operating Temperature: 32°F ~ 104°F (0°C ~ 40°C)
Storage Temperature: -13°F ~ 158°F (-25°C ~ 70°C)
Relative Humidity: 10 ~ 90%, non-condensing
External power adapter:12 Volts DC; 600 mA
Power Consumption:5 Watts Maximum
Product Feature
Built - In Twisted - Pair Port 10/100 Switch
Auto- Negotiation RJ45 Connector with Auto-MDIX
SC,ST,MTRJ or LC Connector
LEDs for Functions, Links & Activity
Link Fault Signaling For Use with Managed Switches
1024 Mac Address Capacity
Store and Forward Architecture
Full and Half Duplex Operation
Singlemode Spans up to 100Km
Wall or Chassis Mountable
IEEE 802.3 10BaseT and IEEE 802.3u 100BaseTX & IEEE 802.3u 100BaseFX Compliant
Compliant to FCC part 15 Class A, CISPR Class A, VCCI Class A, CE Mark, CTick
Lifetime Warranty
