All stock codes associated to this product
HIT0S03662, 705487194005

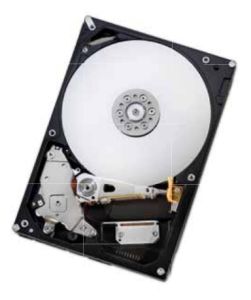

Deskstar NAS
3.5-Inch High-Performance Hard Drive for Desktop NAS Systems
H3IKNAS30003272SA
More Performance, More Reliability
The Deskstar® NAS hard drive is a 7200 RPM 3.5-inch hard drive that provides an exceptional blend of reliability and performance, making it an ideal solution for consumer and commercial desktop NAS systems. This NAS-ready hard drive from HGST delivers media transfer rates that are as much as 20% faster than 5400 RPM drives and seek times less than 12ms. Furthermore, Deskstar NAS hard drives incorporate a rotational vibration sensor and achieve reliability of 1M hours MTBF.
HGST Quality and Service All HGST hard drives are designed to the highest quality standards with field- proven components. They are backed by HGST worldwide technical support and integration services, enabling customers around the globe to bring their products to market quickly.
Features and Benefits
Feature / Function
Capacity: 3TB and 4TB
Performance: 64MB cache buffer
Rotational Speed: 7200 RPM
Reliability: 1M Hours MTBF
Rotational Vibration Sensor
Availability
Benefits
Large storage capacity
Faster data processing
Faster data transfer rates
Reduced risk of data loss
Optimal reliability in multi-drive RAID arrays
24x7
Specifications
Model # Capacity Kit # SKU
HDN724040ALE640 4TB
H3IKNAS40003272SN
H3IKNAS40003272SE
H3IKNAS40003272SA
H3IKNAS40003272SJ
0S03664
0S03665
0S03666
0S03667
HDN724030ALE640 3TB
H3IKNAS30003272SN
H3IKNAS30003272SE
H3IKNAS30003272SA
H3IKNAS30003272SJ
0S03660
0S03661
0S03662
0S03663
Configuration
Interface: SATA 6Gb/s
Capacity (GB): 4TB / 3TB
Max. areal density (Gbits/sq. in): 446/425
Performance
Data buffer (MB): 64MB
Rotational speed: 7200 RPM
Media transfer rate (Mbits/s, max): 1638/1536
Interface transfer rate (MB/s, max): 600
Reliability
Error rate (non-recoverable, bits read): 1 in 10
Load/unload cycles (at 40 C): 600,000
Availability (hrs/day x days/wk): 24x7
MTBF (M hours): 1.0
Power
Requirement: +5 VDC (+/-5%), +(12 VDC is +10-%/-8%)
Startup current (A, max.): (1.2A, max +5V, 2A @ +12V)
Idle (W, avg.) 4TB/ 3TB: 6.9
Physical size
z-height (mm): 26.1
Dimensions (width x depth, mm): 101.6 (+/-0.25) x 147
Weight (g, max.) 4TB/3TB: 690g
Environmental (operating)
Ambient temperature: 5oto 60oC
Relative humidity (non-condensing): 8% to 90%
Shock (half-sine wave, G): 70
Vibration (G RMS 5 to 500 Hz): 0.67 (XYZ)
Environmental (non-operating)
Ambient temperature: -40oto 70oC
Relative humidity (non-condensing): 5% to 95%
Shock (half-sine wave, G (2ms)): 300
Vibration, random (G RMS 2 to 200 Hz): 1.04 (XYZ)
