All stock codes associated to this product
, LBNCD42U610BDA, LB-NCD42U-610-BDA

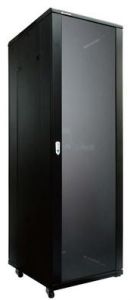

LinkBasic 42RU 1000mm Depth Server Rack Smoke Glass Door with 4x240v Fans and 8-Port 10A PDU
LB-NCD42U-610-BDA
LinkBasic 42RU 1000mm Depth Server Rack Smoke Glass Door with 4x240v Fans and 8-Port 10A PDU
NCB cabinets include numerous features that save time and increase your installation options. Supplied fully assembled as standard with transit castors and adjustable feet.
More from the LinkBasic range of Freestanding Cabinets:
| Part No. |
Capacity (U) |
Width (mm) |
Depth (mm) |
Height (mm) |
Volume (CBM) |
| LB-NCB18U-66-BDA |
18U |
600 |
600 |
988 |
0.40 |
| LB-NCB18U-68-DDA |
18U |
600 |
800 |
988 |
0.52 |
| LB-NCB22U-66 |
22U |
600 |
600 |
1166 |
0.48 |
| LB-NCB22U-66-BDA |
22U |
600 |
600 |
1166 |
0.48 |
| LB-NCB22U-68-BDA |
22U |
600 |
800 |
1166 |
0.63 |
| LB-NCB22U-68-DDA |
22U |
600 |
800 |
1166 |
0.63 |
| LB-NCB22U-610-BDA |
22U |
600 |
1000 |
1166 |
0.70 |
| LB-NCB37U-610-BDA |
37U |
600 |
1000 |
1833 |
1.22 |
| LB-NCB37U-610-DDA |
37U |
600 |
1000 |
1833 |
1.22 |
| LB-NCB42U-66-BDA |
42U |
600 |
600 |
2055 |
0.83 |
| LB-DRB37-66-A |
37U |
600 |
600 |
1833 |
0.97 |
| LB-DRB42-66-A |
42U |
600 |
600 |
2055 |
1.09 |
| LB-NCD42U-610 |
42U |
600 |
1000 |
2055 |
1.36 |
| LB-NCD42U-610-BDA |
42U |
600 |
1000 |
2055 |
1.36 |
| LB-NCD42U-612-BDA |
42U |
600 |
1200 |
2055 |
1.62 |
| LB-NCD42U-612-DDA |
42U |
600 |
1200 |
2055 |
1.62 |
| LB-NCF37U-610-KFA |
37U |
600 |
1000 |
1833 |
1.22 |
| LB-NCF37U-68-KFA |
37U |
600 |
800 |
1833 |
1.22 |
| LB-NCF42U-610-KFA |
42U |
600 |
1000 |
2055 |
1.09 |
The depth measurements of Linkbasic server cabinets are based on external/overall depths. As a rule, the maximum internal working space is less than this, typically between 100-150mm less, meaning if your server is 800mm deep. You will need a 1000mm deep server cabinet to house the server.
Features
- Meets the requirement of ANSI/EIARS-310- D, criterion for manufacture
- Material: seamless steel board
- Good ventilation and heat dispersal
- Ability to add cable fixtures accordingly
- Powder coated to protect against rust, oxidization, scratches, lacquer peeling, strong acid and alkali erosion
- Flexible vertical rail thickness up to 2mm
- Framework consists of high strength steel with an 800kg weight capacity
- Rack's side panel can be easily assembled and disassembled from the outside without tools
- Screw-less appearance for a smooth and clean look
- Have been widely used in the fields of computer data network, page, wiring, PA broadcasting, soundtrack system, subway trains
Specifications
- Powder coated to protect against rust, scratches, etc.
- Excellent ventilation and heat dissipation
- Supplied fully assembled as standard with transit castors and adjustable feet
- Dimensions 600 1000 x 2055 (W x D x H)
- Carton weight 128KG
- 3 x Fixed Shelves
- 40 x Cage Nuts
- 4 x Cooling Fans
- 8 Port PDU 10A
