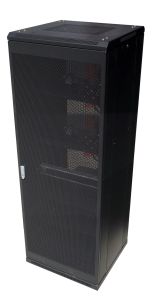

LinkBasic LB-NCD42U-612-DDA 42RU 1200mm Depth Server Rack Mesh Door with 4x240v Fans and 8-Port 15A PDU

IMG 1 of 1
No Longer Available
Part Number:
316413
(?) Brand:
LinkBasic
Manuf No:
LB-NCD42U-612-DDA
LBNCD42U612DDA
Shipping Weight:
140 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
, LBNCD42U612DDA, LB-NCD42U-612-DDA

LinkBasic 42RU 1200mm Depth Server Rack Mesh Door with 4x240v Fans and 8-Port 15A PDU


LB-NCD42U-612-DDA

Description

LinkBasic 42RU 1200mm Depth Server Rack Mesh Door with 4x240v Fans and 8-Port 15A PDU

NCB cabinets include numerous features that save time and increase your installation options. Supplied fully assembled as standard with transit castors and adjustable feet.

More from the LinkBasic range of Freestanding Cabinets:

Part No. Capacity (U) Width (mm) Depth (mm) Height (mm) Volume (CBM)
LB-NCB18U-66-BDA 18U 600 600 988 0.40
LB-NCB18U-68-DDA 18U 600 800 988 0.52
LB-NCB22U-66 22U 600 600 1166 0.48
LB-NCB22U-66-BDA 22U 600 600 1166 0.48
LB-NCB22U-68-BDA 22U 600 800 1166 0.63
LB-NCB22U-68-DDA 22U 600 800 1166 0.63
 LB-NCB22U-610-BDA 22U 600 1000 1166 0.70
LB-NCB37U-610-BDA 37U 600 1000 1833 1.22
LB-NCB37U-610-DDA 37U 600 1000 1833 1.22
LB-NCB42U-66-BDA 42U 600 600 2055 0.83
LB-DRB37-66-A 37U 600 600 1833 0.97
LB-DRB42-66-A 42U 600 600 2055 1.09
LB-NCD42U-610 42U 600 1000 2055 1.36
LB-NCD42U-610-BDA 42U 600 1000 2055 1.36
LB-NCD42U-612-BDA 42U 600 1200 2055 1.62
LB-NCD42U-612-DDA 42U 600 1200 2055 1.62
LB-NCF37U-610-KFA 37U 600 1000 1833 1.22
LB-NCF37U-68-KFA 37U 600 800 1833 1.22
LB-NCF42U-610-KFA 42U 600 1000 2055 1.09

The depth measurements of Linkbasic server cabinets are based on external/overall depths. As a rule, the maximum internal working space is less than this, typically between 100-150mm less, meaning if your server is 800mm deep. You will need a 1000mm deep server cabinet to house the server.

Features

  • Meets the requirement of ANSI/EIARS-310- D, criterion for manufacture
  • Material: seamless steel board
  • Good ventilation and heat dispersal
  • Ability to add cable fixtures accordingly
  • Powder coated to protect against rust, oxidization, scratches, lacquer peeling, strong acid and alkali erosion
  • Flexible vertical rail thickness up to 2mm
  • Framework consists of high strength steel with an 800kg weight capacity
  • Rack's side panel can be easily assembled and disassembled from the outside without tools
  • Screw-less appearance for a smooth and clean look
  • Have been widely used in the fields of computer data network, page, wiring, PA broadcasting, soundtrack system, subway trains

Specifications

  • Powder coated to protect against rust, scratches, etc.
  • Excellent ventilation and heat dissipation
  • Supplied fully assembled as standard with transit castors and adjustable feet
  • Dimensions 600 1200 x 2055 (W x D x H)
  • Carton weight 135kg
  • 8 port 10A PDU

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.
